POKER 2 DOOR
The standard class 3 security door with high thermical insulation
Poker 2 is the anti-intrusion class 3 security door used for internal or external installation. It has been designed for those who looks for a standard dimension door, and thanks to its strong internal structure, it guarantees high thermical performaces.
Poker 2 can be presented with all Di.Bi. finishing panels collections and customized with several accessories.
INFORMATION
ACOUSTIC INSULATION NOTES
-30 dB with external panel 4mm thick -31 dB with external panel 10mm thick
INSTALLATION
Security doors for external installation
THERMAL INSULATION
1.13 - 1.26 W/m²K
ACOUSTIC INSULATION
30-31 dB
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
THERMAL TRANSMITTANCE NOTES
- 1.13 W/m²K with external panel 20mm thick
- 1.26 W/m²K with external panel 4mm thick

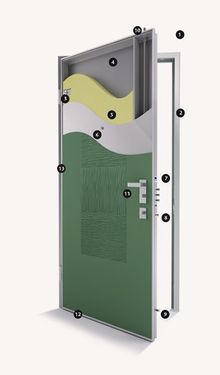

TECHNICAL FEATURES
-Subframe made with 20/10 thick galvanized steel with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers -Adjustable hinges on 3 axes with brown hinge covers -Doorleaf made of one galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf -Inner reinforcement spar -Thermal and acoustic insulation with rock wool (density about 120 kg/m3) -2 panels made of polyester fibre, placed in the locking system area, all along the bars -Wide-angle peephole -Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with a hardened steel drill-proof plate. Patented Rolly defender, drill-proof and dust-proof
-Opening limiter and inside service lock -Lateral deadbolt -Upper deadbolt bar -Handle set in bronzed aluminium (inside handle + outside fixed knob) -Acoustic weatherstrip bar or bottom rebate of the door threshold -5 fixed deadbolts on the hinge side
DIMENSIONS
Standard : W 80-85-90 x H 200-210
RESISTANCE TO WIND LOAD
Class 5
MATERIAL
Aluminium
PRODUCTION
Made In Italy
WATERTIGHTNESS
Class 9
INSTALLATION SOLUTIONS
-Two-colour steel frames -Aluminium frame for Poker 2 -Steel frame for Poker 2 -Box-shaped steel frames for Poker -Steel frames with thermal break for Poker
Poker 2
Poker 2
locking system
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

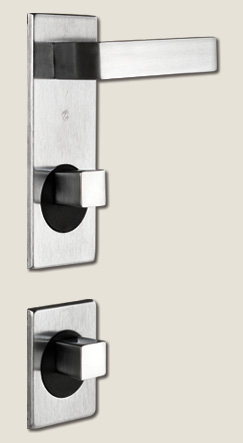

HANDLES
