ELLIPSIS B radiators
ELLIPSIS B RADIATORS

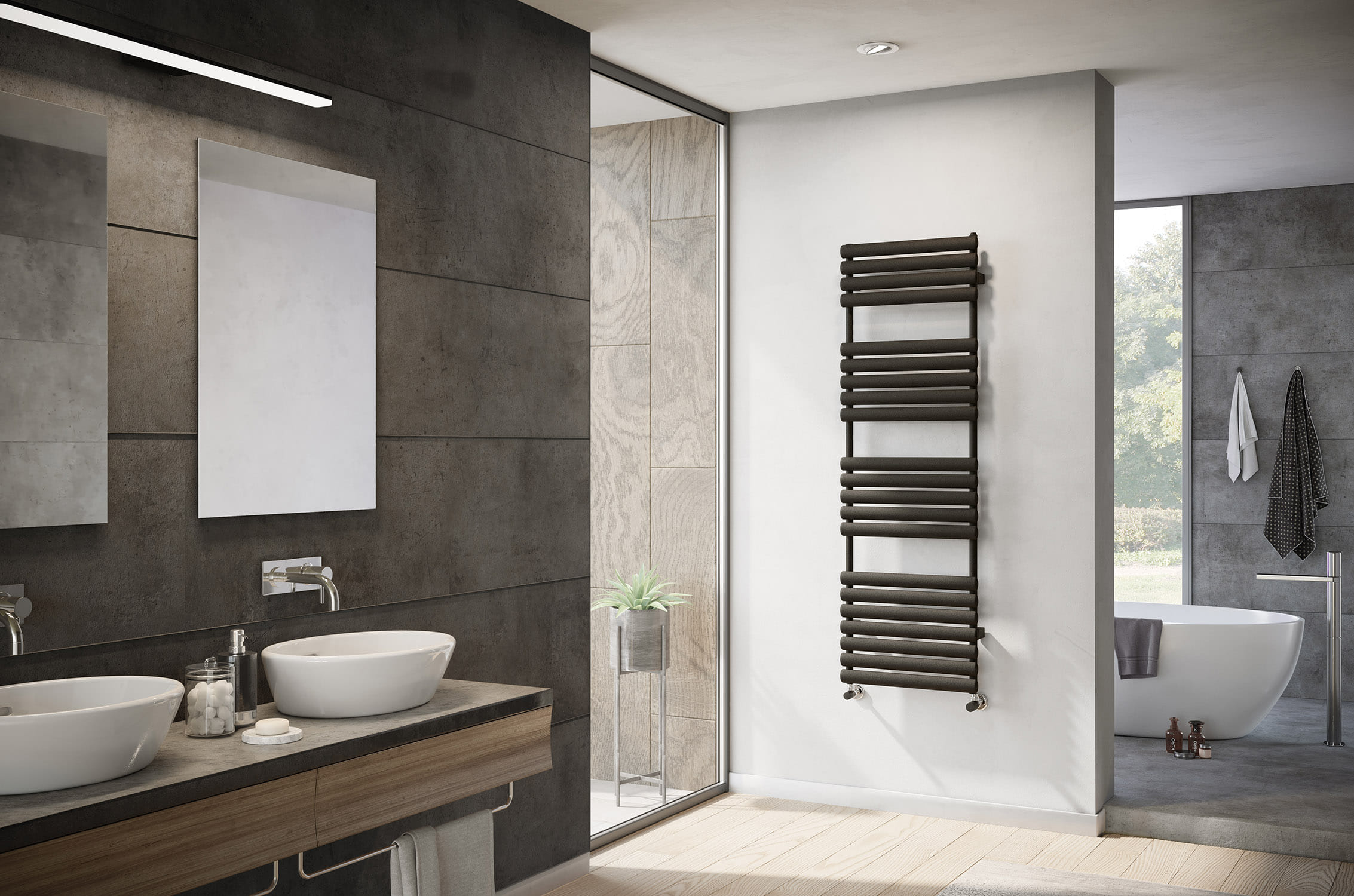

The ELLIPSIS_B towel warmer is ideal for refined environments. With its versatility, it transforms the space becoming the absolute protagonist of every style of furniture.
ELLIPSIS_B is available in 4 heights and 4 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
information
PRODUCT TYPE
Marea Radiators
BRAND
Irsap
PRODUCTION
Made in Italy
RADIATOR COLOUR
Standard White
ELIPTIAL TUBES
Horizontal elements featuring elliptical tubes 50x25 mm
ROUND SECTION
Side manifolds with 30 mm round section
HEIGHT
840 mm
WIDTH
400 mm
CONNECTIONS
-Connection left right with angle valves -50 mm Connection with angle valves
RESISTANCE
Electric Resistance
TEMPERATURE
Low
COLOURS
-Standard White -Chromed -Matching your radiator
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
HYDRUALIC CONNECTIONS AND VALUES
None
TECHNICAL DRAWING
STANDARD EQUIPMENT
-4 wall fixing in the same color as the radiator -1/2" air vent
RADIATOR
Hydrualic
MAXIMUM PRESSURE
Maximum working pressure 4 bar
STEEL TOWER
Steel tower warmer radiator
GAS RIGHT
Manifold threading 1/2” gas right
CERTIFICATIONS
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
MODEL
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 840 12 rails 1 espaces | 53.0 | 840 | 400 | 350 | 7.20 | 4,60 | 324,3 | 1,237 | 300 |
| 840 12 rails 1 espaces | 53.0 | 840 | 500 | 450 | 8.58 | 5,56 | 393,7 | 1,223 | 400 |
| 840 12 rails 1 espaces | 53.0 | 840 | 600 | 550 | 9.96 | 5,56 | 463,1 | 1,210 | 400 |
| 840 12 rails 1 espaces | 53.0 | 840 | 750 | 700 | 12.03 | 6,52 | 567,2 | 1,189 | 700 |
| 1200 16 rails 2 espaces | 53.0 | 1200 | 400 | 350 | 10.10 | 7,96 | 457,4 | 1,277 | 400 |
| 1200 16 rails 2 espaces | 53.0 | 1200 | 500 | 450 | 11.84 | 6,30 | 549,6 | 1,260 | 400 |
| 1200 16 rails 2 espaces | 53.0 | 1200 | 600 | 550 | 13,58 | 7,56 | 641,7 | 1,243 | 700 |
| 1200 16 rails 2 espaces | 53.0 | 1200 | 750 | 700 | 16,19 | 8,82 | 780,0 | 1,218 | 700 |
| 1620 21 rails 3 espaces | 53.0 | 1620 | 400 | 350 | 13,10 | 10,71 | 605,7 | 1,237 | 400 |
| 1620 21 rails 3 espaces | 53.0 | 1620 | 500 | 450 | 15,38 | 9,94 | 729,1 | 1,236 | 700 |
| 1620 21 rails 3 espaces | 53.0 | 1620 | 600 | 550 | 17,66 | 11,58 | 852,4 | 1,236 | 700 |
| 1620 21 rails 3 espaces | 53.0 | 1620 | 750 | 700 | 21,08 | 14,04 | 1.037,5 | 1,236 | 1000 |
| 1860 25 rails 3 espaces | 53.0 | 1860 | 400 | 350 | 15,10 | 9,80 | 705,4 | 1,272 | 700 |
| 1860 25 rails 3 espaces | 53.0 | 1860 | 500 | 450 | 17,92 | 11,78 | 845,6 | 1,256 | 700 |
| 1860 25 rails 3 espaces | 53.0 | 1860 | 600 | 550 | 20,74 | 13,76 | 985,8 | 1,241 | 1000 |
| 1860 25 rails 3 espaces | 53.0 | 1860 | 750 | 700 | 24,97 | 16,73 | 1.196,2 | 1,217 | 1000 |
