Irsap Page Radiator
PAGE RADIATOR
PAGE RADIATOR

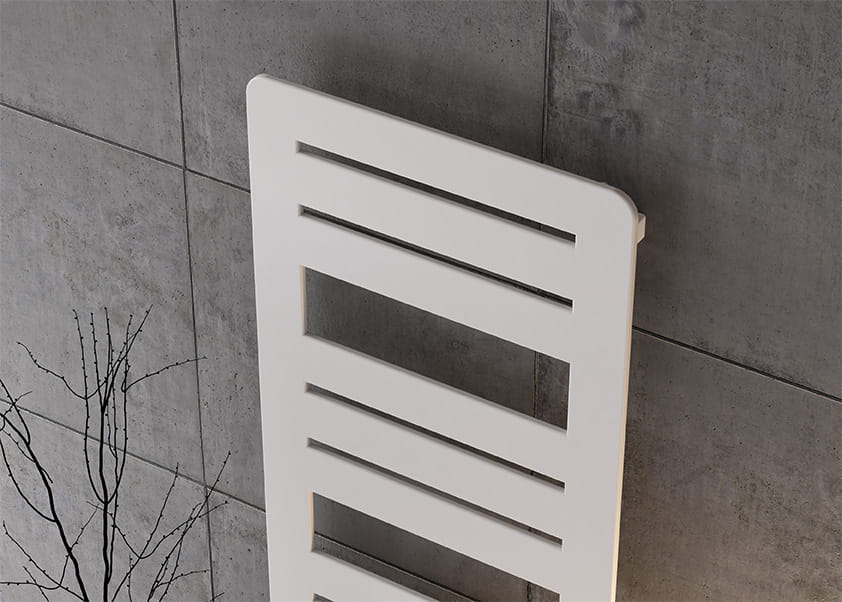

Page takes up the historic frame radiator and reinterprets it in its form, not only as a heating element but also as a decorative object which adds to the primary function of providing heat to the environment that of interacting harmoniously with the space that hosts it. Available in 3 heights from 920 to 1770 mm and width of 500 mm.
information
PRODUCTION
Made in Italy
PRODUCT TYPE
Radiator
BRAND
Irsap
HEIGHT
940 mm
WIDTH
500 mm
COLLECTION
Page
USE
Heating
MATERIAL
Steel towel warmer radiator with flat tube elements
HORIZONTAL TUBES
Horizontal tubes with 70x11 mm flat section
WATER CONNECTION
Threading for water connection at the center of the radiator, pitch 50 mm, right Gas 1/2”
PRESSURE
Maximum working pressure 4 bar
TEMPERATURE
Maximum working temperature 95°c
MODELS
- H. 920 9 rails 2 espaces
- H. 1260 13 rails 2 espaces
- H. 1770 18 rails 3 espaces
TECHNICAL DRAWING
FEATURES
- Hydraulic radiator
- Low temperature
- Side manifolds with 70x11 mm flat section
STANDARD EQUIPMENT
- Wall Fitting
- 3/8" air vent
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT |
|---|---|---|---|---|---|---|---|---|
| 920 9 rails 2 espaces | 11.4 | 920 | 500 | 50 | 12.40 | 2.30 | 396.0 | 1.250 |
| 1260 13 rails 2 espaces | 11.4 | 1260 | 600 | 50 | 16.70 | 3.20 | 532.0 | 1.240 |
| 1770 18 rails 3 espaces | 11.4 | 1770 | 500 | 50 | 24.40 | 4.60 | 737.0 | 1.220 |
