Dibigroup 883 Sound Door System
883 SOUND DOOR SYSTEM
883 SOUND DOOR SYSTEM
883 door with acoustic insulation at 42 dB
The security door to customize
883 is the anti-intrusion class 3 security door which can be totally customized according to the customer need and style.
883 meets the request coming from a market which continues its evolution and research for news. It is available in standard or out of standard dimensions, and it can be used as a security door for internal or external installation.
locking system
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
DOUBLE BITTED KEY
Locking system with double bitted key complete with core with master double bitten key and changeable core with 5 keys. Drill-proof manganese cover to protect internal mechanism of the locking system.
OMEGA PLUS LOCKING SYSTEM
Triple bitted 3 points locking system with 5 folding keys with a green insert + card; 1 folding key with yellow insert + card with a code to create another change key with red insert. The master key is included and upon request it is possible to have keyed alike configuration. Opening limiter and inside service lock is included. The triple bitted locking system has reversible function, with 4 bolts 18 mm diameter and 1 latch 20 mm diameter.
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.
It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
INFORMATION
PRODUCT TYPE
Security Door
BAND
Dibigroup
THERMAL INSULATION
1.13 - 1.26 W/m²K
ACOUSTIC INSULATION
30-31 dB
INSTALLATION
Security doors for external installation
DIMENSIONS
- Standard : W 80-85-90 x H 200-210 cm
- Out of standard : W from 70 to 100 x - H from 190 to 245 cm (steps of cm 1)
- Extra : W from 70 to 100 x H from 200 to 230 cm (steps of cm 5)
LOCKING SYSTEM
883 security door has been projected with the double bitted locking system, but it can be changed with more sophisticated locking systems. 883 Sound can reach 42 dB of acoustic insulation.This model of security door can be realized also as a pull opening.
ANTI-INTRUSION
Class 4
AIR PERMEABILITY
Class 3
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
THERMAL
Thermal insulation and acoustic insulation with rock wool ( Density about 120 kg/m³)
MATERIAL
- Galvanized Steel
- Complete with plastic covers, gasket and footers
INSTALLATION SOLUTIONS
Steel Frames
883 Sound
DOWNLOADS
↓ Technical Drawings
↓ Catalogue
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
↓ 883 Certification - Anti-intrusion
↓ Certification 883 - Resistance to wind load
↓ Certification of 883 model with top window - Thermal insulation
↓ Certification 883 - watertightness
↓ Instruction manual for the installation and adjustment of security doors with regular hinges
↓ Instruction manual for security door handle kit
↓ Instruction manual for the installation of frames on 1 leaf STD security doors
↓ Assembly instructions for frame sol. B (with top window)
↓ Installation manual for Handle Accessories Kit - Series nr. 1
↓ Installation manual for Handle Accessories Kit - Series nr. 2
↓ Installation manual for Handle Accessories Kit - Series nr. 3
↓ Installation manual for Handle Accessories Kit - Series nr. 4
↓ Installation manual for Handle Accessories Kit - Series nr. 6
↓ Installation manual for Handle Accessories Kit - Series nr. 7
TECHNICAL FEATURES
- Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
- Frame made with 20/10 thick galvanized steel, painted grey Ral 9006 and complete with plastic covers, gasket and footers. Standard colour brown Ral 8017 covers of the frame colour
- Adjustable hinges on 3 axes with hinge covers of the frame colour
- Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
- Inner reinforcement spars
- 2 panels of polyester fibre, placed in the locking system area, all long the bars
- Wide-angle peephole
- Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with a hardened steel drill-proof plate. Patented Rolly defender, drill-proof, dust-proof
- Opening limiter and inside service lock
- Lateral deadbolts
- Handle set in aluminium silver colour (inside handle + outside fixed knob. Upon request, outside turning knob or inside+outside gìhandle). Standard version: 883 brnzed
- Acoustic weatherstrip bar or standard bottom rebate of the door threshold
- 5 fixed deadbolts on the hinge side

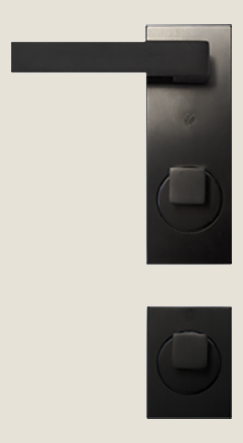

HANDLES
