MAREA radiators
MAREA RADIATORS

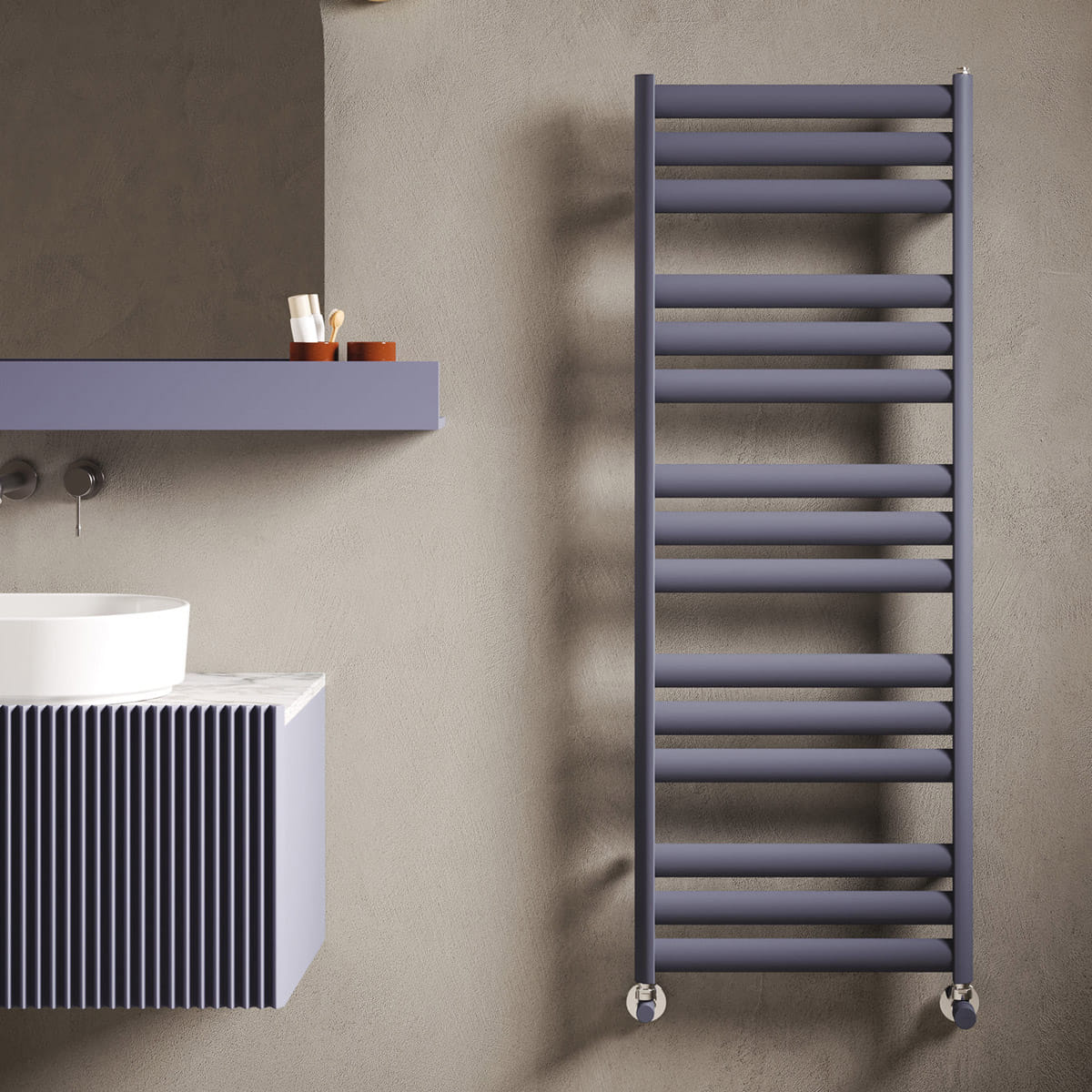

Original features, full of personality and creativity, give shape to this towel warmer from essential lines, MAREA. MAREA takes its inspiration from the rhythm that permeates the its forms.
Elements that intersect, lines that merge for give shape to an elegant, discreet and with a strong personality. Available in 3 heights and 2 widths. With insertion of the electric resistance (optional) can work even when the system is off.
information
CONNECTIONS

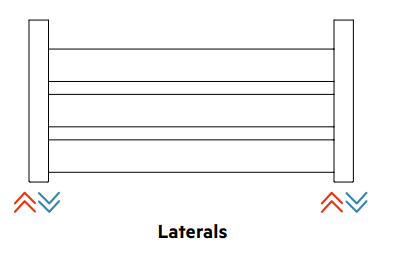

- Laterals
- Connection dimensions with IRSAP valves
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
FEATURING ELLIPTICAL TUBES
Horizontal elements featuring elliptical tubes 50x25 mm
CROSS SECTION
Side manifolds with triangular cross-section 30x30 mm
WIDTH
500 mm

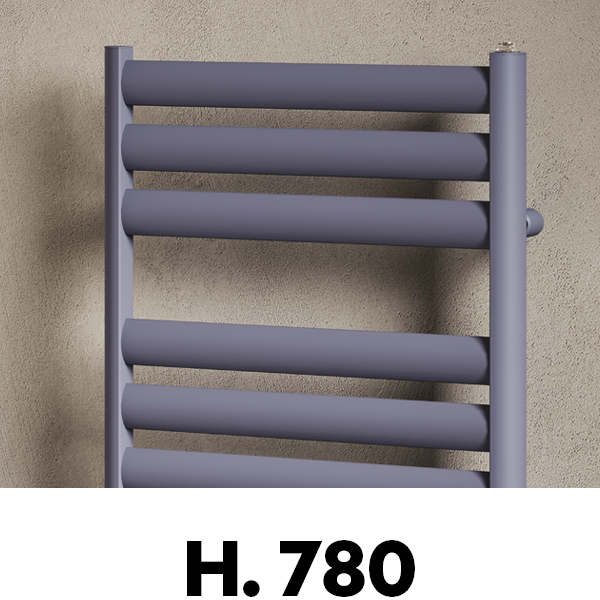

HEIGHT
780 mm
CERTIFICATIONS
DOWNLOADS
↓ Catalog 2023
↓ Color chart 2023
↓ Data Sheet
FINISHES AVAILABLE
- Standard White
- Classic finished
- Special finished
- Other RAL colors
STANDARD EQUIPMENT
- 1/2" air vent
- 4 wall fixing in the same color as the radiator
HYDRUALIC CONNECTIONS AND VALUES
PRODUCT TYPE
Marea Radiators
PRODUCTION
Made in Italy
RESISTANCE
Electric Resistance
BRAND
Irsap
RADIATOR COLOUR
Standard White
TECHNICAL DRAWING
GAS RIGHT
Manifold Threading 1/2” Gas Right
WORKING PRESSURE
Maximum working pressure 4 bar
TEMPERATURE
Maximum Working Temperature 95°c
COLORS
-Quartz 1 -Beige Cream -Standard White -Ivory - RAL 1013 -Manhattan Grey -Red - RAL 3000 -Brown - RAL 8017 -Claret - RAL 3003 -Orange - RAL 2004 -Bluish Lilac - RAL 4005 -Woodland Green - RAL 6005 -Green Grass - RAL 6018 -Melon Yellow - RAL 1028 -Black - RAL 9005 -Pearl White -Edelweiss White -Sablé -Quartz 2 -Sunstone -Tobacco Brown -Flame Red -Azurite 3 -Medium Grey -Titanium Grey Metallic - RAL 9023 -Pearl Grey -Graphite Black -Hammered Grey -Satin Black
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 780 9 rails 2 espaces | 30.0 | 780 | 500 | 470 | 6.01 | 4.29 | 345.0 | 1,204 | 400 |
| 780 9 rails 2 espaces | 30.0 | 780 | 600 | 570 | 6.91 | 5.05 | 404.0 | 1,206 | 400 |
| 1060 12 rails 3 espaces | 30.0 | 1060 | 500 | 470 | 8.01 | 5.75 | 463.0 | 1,225 | 400 |
| 1060 12 rails 3 espaces | 30.0 | 1060 | 600 | 570 | 9.21 | 6.76 | 546.0 | 1,225 | 700 |
| 1340 15 rails 4 espaces | 30.0 | 1340 | 500 | 470 | 10.01 | 7.20 | 581.0 | 1,212 | 700 |
| 1340 15 rails 4 espaces | 30.0 | 1340 | 500 | 570 | 11.51 | 8.47 | 680.0 | 1,207 | 1000 |
