Drago 30 SECURITY DOOR
DRAGO 30 SECURITY DOOR
The fire resistant security door
Drago security door is the line of fireproof and smokeproof security doors with EI1 20 - EI2 30 fireproof Certification, according to the European rule UNI EN 13501 - 2:2009 – certified to resist during 30 minutes.
information
THERMAL INSULATION
1.59 - 1.70 W/m²K
ACOUSTIC INSULATION
30-31 dB
DIMENSIONS
- Standard : 80-85-90 x H 200-210
- Out of Standard : W from 70 to 100 x H from 190 to 230 (1 cm by 1 cm)
INSTALLATION
Security doors for external installation
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
AIR PERMEABILITY
Class 3
OPENING
Push
THERMAL INSULATION
1.13 - 1.26 W/m²K
ANTI-INTRUSION
Class 3
DETAIL
This door is certified for the fireproofing 30 minutes only if equipped with Mab door closer.If the door is not equipped with the Mab closer, it cannot be certified according to the European rule, even though it maintains the same technical features of fire and smoke resistance.
-Drago door is for internal installation and cannot be installed in contact with direct sun and rain. -Door with an anti-intrusion class 3, it also offers very good sound insulation.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.

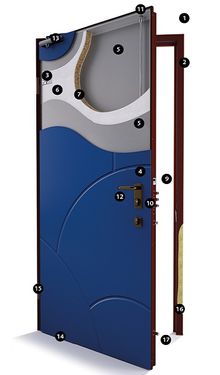

TECHNICAL FEATURES
-Subframe made with 20/10 thick galvanized steel with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers. -Adjustable hinges on 3 axes with hinge covers of the frame colour -Doorleaf made of two galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf
-Plasterboard -Door insulation with mineral wool, density 145 kg/m3 -Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with drill-proof manganese cover. Panteted Rolly Defender, drill-proof, dust-proof -Opening limiter and inside service lock -Upper deadbolt bar
-Handle set in bronzed aluminium (inside handle + outside fixed knob. Upon request, outside turning knob or inside+outside handle) -Automatic door close
-Weatherstrip bar and fire proof bar -5 fixed deadbolts on the hinge side -Rock wool -Lateral deadbolts
HANDLES
-Handle kit Poker -Poker knob
ACOUSTIC INSULATION NOTES
30 dB with external panel 4mm thick 31 dB with external panel 10mm thick
INSTALLATION SOLUTIONS
Steel frame for Drago
THERMAL TRANSMITTANCE NOTES
-1.59 W/m²K with 10mm thick external panel -1.70 W/m²K with external panel 4mm thick
