SOUND PLUS SECURITY DOOR
SOUND PLUS SECURITY DOOR
The security door with acoustic insulation 40 dB
There is nothing better than a cosy, warm, safe and quiet house. That’s why Di.Bi. has focused its production on Sound line security doors.
Sound Plus security door offers the same anti-intrusion class 2 of the Poker 1 doors, with an acoustic insulation up to 40 dB, to allows the customer to find the comfort he likes in his house.
What makes Sound Plus a sound-proofing security door is hidden inside the door and between the frame and the subframe, and it can be used both as a security door for internal or external installation.
Sound Plus has the same aesthetical care for the details as Poker 1 model.
INFORMATION
INSTALLATION
Security doors for external installation
THERMAL INSULATION
1,55 W/m²K
AIR PERMEABILITY
Class 3
ACOUSTIC INSULATION
39-40 dB
ANTI-INTRUSION
Class 3
DIMENSIONS
Standard : W 80-85-90 x H 210 cm
BRAND
Dibigroup
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
MATERIAL
Aluminium
PRODUCTION
Made In Italy
ACOUSTIC INSULATION NOTES
- 39 dB with external panel 4mm thick
- 40 dB with external panel 10mm thick
INSTALLATION SOLUTIONS
frames
Plus
DOWNLOADS
↓ Complete File
↓ Price list Sound
↓ Price list - Steel Frames
↓ Price list - Alu frames
↓ Steel Frames price list 2020
↓ Aluminium Frames price list 2014
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
↓ Technical drawings for Sound door leaf
↓ Certification Sound Plus - Anti-intrusion
↓ Certification Sound Plus - Acoustic insulation
↓ Certification Sound Plus - Resistance to wind load
↓ Certification Sound Plus - Thermal insulation
↓ Checklist for taking dimensions of security doors
↓ Installation Instruction for Subframe without Angle Stiffeners
↓ Instruction manual for the installation of frames on 1 leaf security doors
↓ Assembly instructions for frame sol. B (with top window)
↓ Instruction manual for the installation and adjustment of security doors with regular hinges
↓ Instruction manual for security door handle kit

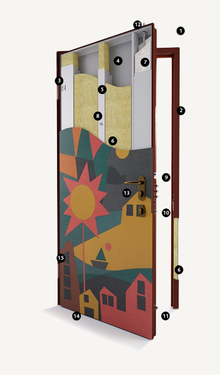

TECHNICAL FEATURES
1. Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
2. Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers
3. Adjustable hinges on 3 axes with brown hinge covers
4. Doorleaf made of one galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf
5. Inner reinforcement spar
6. Thermal and acoustic insulation with rock wool (density about 120 kg/m3)
7. 2 panels made of polyester fibre, placed in the locking system area, all along the bars
8. Wide-angle peephole
9. Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with a hardened steel drill-proof plate. Patented Rolly defender, drill-proof and dust-proof
10. Opening limiter and inside service lock
11. Lateral deadbolt
12. Upper deadbolt bar
13. Handle set in bronzed aluminium (inside handle + outside fixed knob)
14. Acoustic weatherstrip bar or bottom rebate of the door threshold
5. 5 fixed deadbolts on the hinge side
locking system
D-SMART CABLATA
Il cilindro elettrico D-SMART è disponibile anche in versione cablata, diventando così una serratura elettro-meccanica. La porta si apre con chiave tradizionale, trasponder, pulsantiera interna da remoto, tastierino numerico e app da smartphone e tablet.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HANDLES
ALL HANDLES
-Handle kit Evotech -Dibidoku knob -Poker knob -Sensunels -Sike -Sensunels -Twist -Blip -Sensunels -Fluke -Sensunels - Korpo -Maniglieria interna nera Quadrata -Pomolo esterno nero Quadrata -Handle kit Quadrata -Long Handle -Maniglione Quadrato Acciaio inox -Maniglione Tondo Nero -Maniglione Quadrato nero -Evotech knob -Handle kit Poker -Poker knob -Handle kit Quadrata -Quadrata knob
