Dibigroup 883 Skin Security Door
883 SKIN SECURITY DOOR
883 SKIN SECURITY DOOR
883 with glass insert and plexiglass finishing panels
The 883 SKIN Security door is a security door with glass insert that matches the same technical characteristics of 883 Single leaf door and 883 Double leaf door but with a completely renewed look.
The safety glass is inserted inside the door, while the finishing panel is a unique, flat, made of plexiglass element, which covers the glass insert both on the outside and on the inside. This solution allows you to offer a new, modern and minimalist look to the door, avoiding the use of panel-fixing frames, which always stand out of panel borders.
locking system
DOUBLE BITTED KEY
Locking system with double bitted key complete with core with master double bitten key and changeable core with 5 keys. Drill-proof manganese cover to protect internal mechanism of the locking system.
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
OMEGA PLUS LOCKING SYSTEM
Triple bitted 3 points locking system with 5 folding keys with a green insert + card; 1 folding key with yellow insert + card with a code to create another change key with red insert. The master key is included and upon request it is possible to have keyed alike configuration. Opening limiter and inside service lock is included. The triple bitted locking system has reversible function, with 4 bolts 18 mm diameter and 1 latch 20 mm diameter.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force. The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
INFORMATION
PRODUCT TYPE
Security Door
BAND
Dibigroup
THERMAL INSULATION
1.7 - 1.8 W/m²K
ACOUSTIC INSULATION
30-31 dB
DIMENSIONS (1 LEAF)
-Standard : cm W 80-85-90 x H 200-210
-Out of standard : cm W from 70 to 100 x H f-rom 190 to 245 (steps of cm 1)
THERMAL TRANSMITTANCE NOTES
- 1.7 W/m²K with external panel 20mm thick
- 1.8 W/m²K with external panel 10mm thick
- 1.8 W/m²K with external panel 4mm thick
ACOUSTIC INSULATION NOTES
-30 dB with external panel 4mm thick -31 dB with external panel 10mm thick
DIMENSIONS (DOUBLE LEAF WITH ASYMMETRIC LEAVES )
-Standard : cm W 80-85-90 + 30 x H 200-210, cm W 80 + 40 x H 200-210
-Out of standard : cm W from 100 to 140 x H from 190 to 245, cm Fixed leaf W 30 - 40, cm Semi-fixed leaf W max 100 -Double leaf with asymmetric leaves : cm W from 100 to 200 x H from 190 to 245, cm semi-fixed leaf W max 100
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
INSTALLATION
Security doors for external installation
MATERIAL
- Aluminium
- Steel
INSTALLATION SOLUTIONS
TECHNICAL FEATURES
1. Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
2. Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers
3. Adjustable hinges on 3 axes with hinge covers of the frame colour
4. Doorleaf made of two galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf
5. Thermal insulation with high density polyurethane
6. Doble glazing 26 mm thick
7. Security locking system with master core + core with double bitted key with 5 user keys equipped with drill-proof manganese cover
8. Opening limiter and inside service lock
9. Lateral deadbolts
10. Handle set in aluminium bronze colour (inside handle + outside fixed knob)
11. Weatherstrip bar or standard bottom rebate of the door threshold
12. 5 fixed deadbolts on the hinge side
13. Inside and outside plexiglass finishing panel, lacquered white Ral 9010
DOWNLOADS
PRODUCTS GUARANTEE
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
TECHNICAL DRAWINGS
↓ Technical drawings for 883 door leaf
DOWNLOADS (PERFORMANCES - REG. EU 305/2011)
↓ Certification 883 - watertightness
↓ Certification 883 - Anti-intrusion
↓ Certification 883 - Resistance to wind load
↓ Certification 883 - acoustic insulation 883 model
↓ Certification security door with glass insert - Thermal insulation
CHECKLIST FOR TAKING DIMENSIONS
↓ Checklist for taking dimensions of security doors
INSTRUCTION MANUALS
↓ Installation manual for Handle Accessories Kit - Series nr. 1
↓ Installation manual for Handle Accessories Kit - Series nr. 2
↓ Installation manual for Handle Accessories Kit - Series nr. 3
↓ Installation manual for Handle Accessories Kit - Series nr. 4
↓ Installation manual for Handle Accessories Kit - Series nr. 6
↓ Installation manual for Handle Accessories Kit - Series nr. 7
↓ Installation instructions for Electric device for remote opening
↓ Installation manual for Dibidoku Handle Accessories Kit
↓ Installation Instruction for Subframe without Angle Stiffeners
↓ Installation instructions for aluminium frame (in Italian)
↓ Assembly instructions for frame sol. B (with top window)
↓ Instruction manual for the frame installation of security door with concealed hinges
↓ Installation instructions for aluminium frame without subframe and without glass (in Italian)
↓ Instruction manual for the installation and adjustment of security doors with concealed hinges

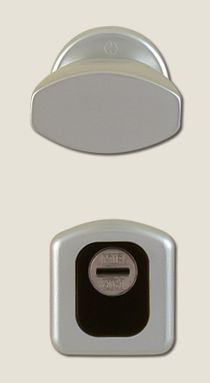

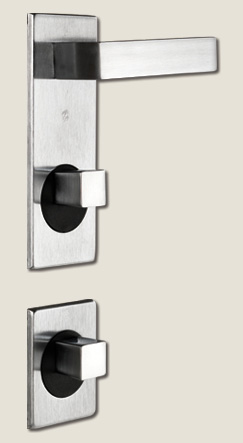

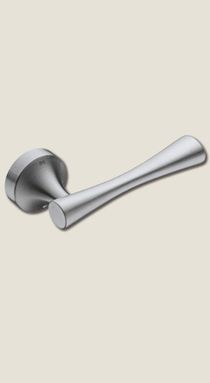

HANDLES
