SeGreta Plus SECURITY DOOR
SEGRETA PLUS SECURITY DOOR
The patented security door with safety boxes
SeGreta security door looks like a normal security doors, but inside of it you can have two safety boxes (one on the top and/or one of the hinge side) where you can hide your documents and jewels, because they are completely invisible and not accessible.
SeGreta Plus has the same features of SeGreta, but the standard equipment is with the top safety box, the magnetic defender Key Protector, and the innovative locking system with Multilock Interactive® cylinder, equipped with 1 master key + 5 user coded key (2 keys open both the door and the safety box, 3 keys open only the door).
locking system
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
EUROPEAN CYLINDER LOCKING SYSTEM 1+3
European cylinder locking system with 1 red master key + 3 keys with card duplication. The lock is equipped with a hardened steel drill-proof plate. Outside, drill-proof defender.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site.
The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
information
ACOUSTIC INSULATION
30-31 dB
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
THERMAL INSULATION
1.13 - 1.26 W/m²K
RESISTANCE TO WIND LOAD
Class 5
INSTALLATION
Security doors for external installation
ACOUSTIC INSULATION NOTES
30 dB with external panel 4mm thick 31 dB with external panel 10mm thick
DIMENSION OUT OF STANDARD
W from 70 to 100 x H from 190 to 230 (steps of 1 cm)
WATERTIGHTNESS
Class 9
DIMENSION STANDARD
80-85-90 x H 200-210
THERMAL TRANSMITTANCE NOTES
- 1.13 W/m²K with external panel 20mm thick
- 1.26 W/m²K with external panel 4mm thick
TECHNICAL FEATURES

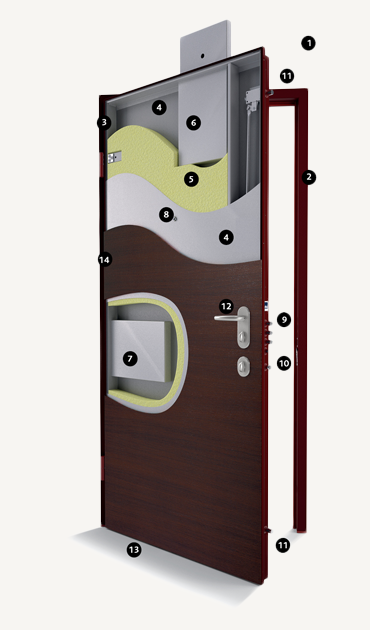

-Subframe made with 20/10 thick galvanized steel with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers. -Adjustable hinges on 3 axes with hinge covers of the frame colour -Doorleaf made of two galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf
-Thermal insulation with high density polyurethane -Wide-angle peephol
-Security locking system with automatic lock and European cylinder with 1 master key + 5 user keys, equipped with drill-proof manganese cover plus reinforcement plates all along the locking system side. A special mechanism in the locking system ensures the quick lock of all deadbolts when closing the door. -External turning knob that opens the latchbolt -Inside service lock -Lateral deadbolts with two bolts -Handle set in aluminium silver colour (inside handle + outside fixed knob). -Standard colour: bronzed -Weatherstrip bar or standard bottom rebate of the door threshold -5 fixed deadbolts on the hinge side
DOWNLOADS
PRODUCTS GUARANTEE
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
CHECKLIST FOR TAKING DIMENSIONS
↓ Checklist for taking dimensions of security doors
TECHNICAL DRAWINGS
↓ Technical drawings for 883 door leaf
ACCESSORIES
Installation solutions
INSTALLATION SOLUTIONS
-Steel frame for SeGreta Plus -Two-colour steel frames -Steel frames with thermal break for SeGreta
For Segreta Plus
Steel Frames
For Segreta
handles
HANDLES
-Dibidoku knob -Handle kit Evotech -Sensunels - Sike -Sensunels - Twist -Handle -Poker knob
-Blip -Sensunels -Fluke -Sensunels - Korpo -Maniglione Tondo Nero -Handle kit Poker -Evotech knob -Quadrato Acciaio inox -Longhandle with fingerprint -Maniglieria interna nera -Handle kit Quadrata -Pomolo esterno nero Quadrata -Maniglione Quadrato nero -Quadrata knob
Fluke
Korpo
kit Poker
knob
kit Quadrata
knob
videos
VIDEOS
- Opentech – use of the complete opening system
- Aluminium frame with watertight threshold
- Installation of the double leaf security door
