Dibigroup Mite Security Door System
MITE SECURITY DOOR SYSTEM
MITE SECURITY DOOR SYSTEM
The security door with the best performing thermal insulation rate

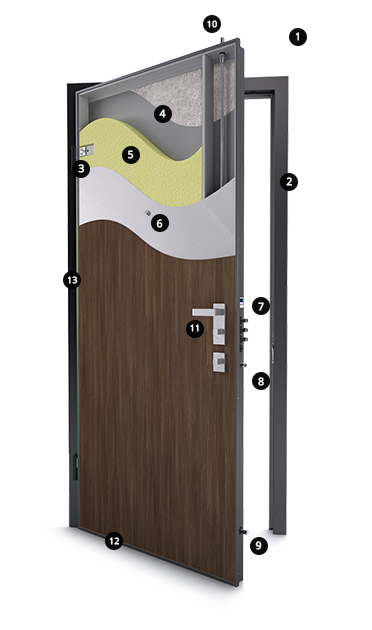

Mite is the latest model of security door produced by Di.Bi. It stands out for his high performance in terms of thermal insulation, with the achievement of a rate of 1,00 W/m²K . The door has been designed with a special frame with thermal break and the door structure is equipped with specific filling material for thermal insulation
locking system
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
SERRATURA ELETTROMECCANICA ISEO X1R EASY
Electro-mechanical locking system with European cylinder with master key and 5 user keys. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, transponder, card and it is also available with eKey and Mottura fingerprint reader. The ISEO lock is compatible with different handle sets.
SERRATURA ELETTROMECCANICA ISEO X1R SMART
Electro-mechanical locking system with European cylinder with master key and 5 user keys. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can be set and open through smartphone and tablet and can come with digital keypad with secret code, transponder, card and it is also available with eKey and Mottura fingerprint reader. The ISEO lock is compatible with different handle sets. This specific lock is also available with a so called “single action” opening system, which allows to unlock the door with the simple action on the inside handle.
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
MOTTURA FINGERPRINT READER
Securemme or iseo electro-mechanical locking system with european cylinder with master key and 5 user keys and opening system with mottura finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software is integrated with the reader mechanism. Itcan be open with card too.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force. The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
INFORMATION
PRODUCT TYPE
Security Door
BAND
Dibigroup
THERMAL INSULATION
1.00 W/m²K
ACOUSTIC INSULATION
30-31 dB
DEADBOLTS
-5 fixed deadbolts on the hinge side -Lateral deadbolts
HANDLE SET
Handle set in aluminium silver colour (inside handle + outside fixed knob. Upon request, outside turning konb or inside+outside handle). Standard version: bronzed handle kit
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 4
THICKNESS
Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
FRAME
A1 Standard frame
DIMENSIONS
- W from 70 to 100 cm x - H from 190 to 245 cm (steps of cm 1)
- W from 101 to 110 cm x - H from 190 to 230 cm (steps of cm 1)
THERMAL INSULATION
Thermal insulation with high density polyurethane and polystyrene insulation.
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
DOOR THRESHOLD
Weatherstrip bar or bottom rebate of the door threshold
MATERIAL
- Aluminium
- Steel subframe with thermal break
SYSTEM
Security locking system with master core + core with European cylinder with 5 user keys equipped with drill-proof manganese cover
ANGLE
Wide-angle peephole
OPENING
Push Opening
INSTALLATION SOLUTIONS
Steel frames with thermal break for mite
TECHNICAL FEATURES
- Opening limiter and inside service lock
- Adjustable hinges on 3 axes with hinge covers of the frame colour
- Frame made with 20/10 thick galvanized steel with thermal break (Secco Model), complete with plastic covers, gasket and footers. Standard colour brown Ral 8017
- 2 panels made of polyester fibre, placed in the locking system area, all along the bars.

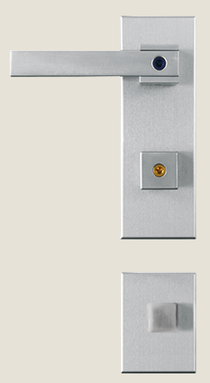

HANDLES
HANDLES
-Longhandle with fingerprint reader by E-Key -Maniglieria interna nera Quadrata -Pomolo esterno nero Quadrata -Handle kit DibiDoku -Dibidoku knob -Handle kit Poker -Poker knob -Handle kit Quadrata -Quadrata knob -Long Handle -Maniglione Quadrato Acciaio inox -Maniglione Tondo Nero -Maniglione Quadrato nero
