Dibigroup Di.Big Door
Di.Big Door
DI.BIG DOOR

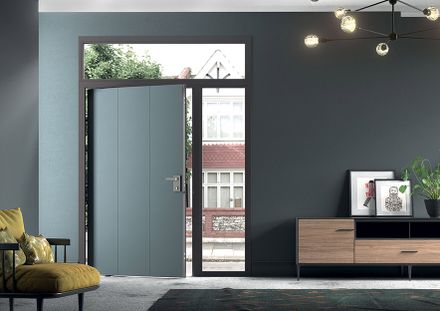

The pivot security door that combines design and safety in case of wide openings.
Planning your dreams’ house, you surely imagine it as a comfortable, refined and above all safe place.
Di.Big can satisfy all these expectations: it’s a security door with pivoting opening. It’s flush with the frame and equipped with double lateral deadbolts in both sides of the door-leaf.
Refined materials, accuracy in details and a stylish and simple design makes it an ideal piece of furniture for interiors; due to its thermal and acoustic performances and to the watertightness and air permeability, it’s also suitable for external use.
Di.Big is available with three different installation solutions: standard, flush with the internal frame for boiserie and flush with the external frame
locking system
ELECTRONIC LOCK FOR PIVOT DOOR
The pivot door electronic lock works with:
- App from smartphone and tablet with customised access control
- Digital keypad with secret code
- Finger print scanner
- Transponder
-Door can be always opened with traditional key from the outside and little knob from the inside.
MECHANICAL LOCK FOR DI.BIG PIVOT DOOR
European cylinder locking system for Di.Big pivot door. The lock is equipped with double lateral deadbolts on the lock and on the hinges side. It is protected inside by a hardened steel drill-proof plate. The lock is availble as key-key or key-knob version.
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.
It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
INFORMATION
PRODUCT TYPE
Di.Big Door
DOWNLOAD
↓ Catalogue
ACOUSTIC INSULATION
38 dB
ANTI-INTRUSION
Class 4

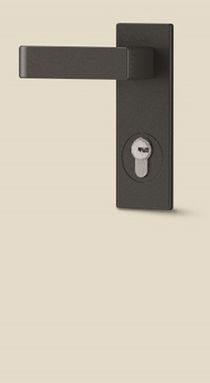

INSIDE HANDLE KIT
- Squared Polished Chrome
- Squared Silver
- Squared Brass
- Dobodoku
OUT SIDE HANDLE KIT
- Squared Polished Chrome
- Squared Silver
- Squared Brass
- Stainless Steel longhandle 400m
- Stainless Steel longhandle 1000m
- Stainless Steel longhandle 1800m
- Wood Finish longhandle
AIR PERMEABILITY
Class 2
RESISTANCE TO WIND LOAD
Class 3
INSTALLATION SOLUTIONS
Steel Frame For Di.big
HEIGHTS
-2100 -2110-2300 -2310-2450 -2460-2600 -2610 -2700
-2710 -2800
TECHNICAL FEATURES
-Subframe made with 30/10 galvanized steel with 12 anchors to wall -Frame made with 20/10 galvanized steel sheets, painted opaque black Ral 9005 -Pivoting hinges adjustable on three axes -Doorleaf made of two galvanized steel sheets 20/10 thick. -Internal feeling for thermal-acoustic insulation -Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with manganese cover. -Double lateral deadbolts: 2 on the lock side and 3 on the hinges side -Handle set in aluminium silver colour (inside handle + outside fixed knob), model “quadrata” -Upper and lower weatherstrip bar and watertight threshold -Internal and external finishing panel designed with 3 vertical panels of different depths (10mm thick the side vertical panels and 13mm thick the central one) -Predisposition for connecting alarm system and electronic lock
VETRI
VETRI
-White milk -Bronze -Satinated Bronze -White satinated -Stopsol Bronze -Stopsol light -Transparent
HANDLES
HANDLES
MATERIALS
FLAT IN MULTILAYER WOOD
Application is permitted only inside, in positions protected from atmospheric agents
ALLUMINIO BY PONZIO
Application is permitted only inside, in positions protected from atmospheric agents
FLAT LACQUERED PANELS
Application is permitted only inside, in positions protected from atmospheric agents
POLYMER-VENEERED PANELS FOR INTERNAL USE
Application is permitted only inside, in positions protected from atmospheric agents
LAMINAM
Application outside, with full exposure to atmospheric agents is permitted.
POLYMER-VENEERED PANELS FOR OUTSIDE INSTALLATION
Application outside, with full exposure to atmospheric agents is permitted.
