The secuirty door with an automatic mechanical locking system
Meccanya is a security door with an automatic locking system that lock the door every time you close it. It's an innovative door because it works as a door with the electronic locking system, but it has a mechanical one.
locking system
MECCANYA
Security locking system with automatic lock and european cylinder with 1 master key + 5 user keys, equipped with drill-proof manganese cover. A component of the locking system ensures the quick lock of the deadbolts when sutting the door. External turning knob that opens the latchbolt.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site.
The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
information
PRODUCT TYPE
Secuirty Door
ACOUSTIC INSULATION
30-31 dB
ACCESSIBILITY
- Outside handle height 90 cm
- Inside handle height 98 cm
ANTI-INTRUSION
Class 3
THERMAL INSULATION
1,5 W/m²K
OUT OF STANDARD
W from 70 to 100 x - H from 200 to 230 (steps of cm 1) cm
WATERTIGHTNESS
Class 9
STANDARD
W 80-85-90 X H 210 cm
AIR PERMEABILITY
Class 3
INSTALLATION
Security doors for external installation
THERMAL TRANSMITTANCE NOTES
-1.13 W/m²K with external panel 20mm thick -1.26 W/m²K with external panel 4mm thick
ACOUSTIC INSULATION NOTES
-30 dB with external panel 4mm thick -31 dB with external panel 10mm thick
DETAIL

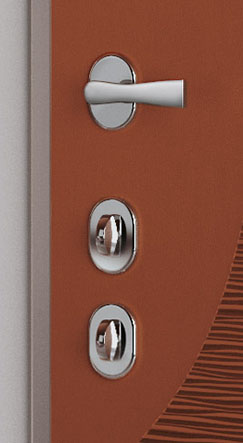

Meccanya protects the house anytime, either when you are at home and when you are away. You don't need to lock the door with the key, because it does it automatically when you shut it. The functioning is very simple: When you shut the door, both the latchbolt and the lateral deadbolts get closed at the same time.
-To open the door from the outside, you have to unlock the locking system by turning the key twice, like the traditional locking systems, and you turn the knob. -To open the door from the inside, you simply have to turn the handle.
TECHNICAL FEATURES
-Subframe made with 20/10 thick galvanized steel with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers., -Adjustable hinges on 3 axes with hinge covers of the frame colour -Doorleaf made of two galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf
-Thermal insulation with high density polyurethane -Wide-angle peephol -Security locking system with automatic lock and European cylinder with 1 master key + 5 user keys, equipped with drill-proof manganese cover plus reinforcement plates all along the locking system side. A special mechanism in the locking system ensures the quick lock of all deadbolts when closing the door. -External turning knob that opens the latchbolt -Inside service lock -Lateral deadbolts with two bolts -Handle set in aluminium silver colour (inside handle + outside fixed knob). -Standard colour: bronzed -Weatherstrip bar or standard bottom rebate of the door threshold -5 fixed deadbolts on the hinge side
