VENTILATED FAÇADES SYSTEM
VENTILATED FAÇADES SYSTEM
GammaStone Air is the most important technological challenge in the international ventilated façades sector and is the result of huge investments in research and development together with the qualified work of experienced teams of architects, engineers and designers.
Our team continuously works for the improvement of innovative and revolutionary construction systems, with the aim of harmonising the aesthetic charm with the best results from a technical and functional point of view.
GammaStone Air is an advanced eco-sustainable system able to meet the most ambitious and modern stylistic trends in architecture.
Our ventilated façades, the result of an intense research process, are a response to the widespread need for efficient thermal and acoustic insulation for homes and work environments.
With structures and materials that, at the same time, guarantee an unalterable aesthetic beauty. This innovative cladding system has been developed in collaboration with the largest and most reliable companies in the industry.
Together with our partners we have achieved the highest results in terms of insulation, protection from weather events and external noise.GammaStone Air panels allow easy installation, versatility in architectural design, original stylistic solutions with a wide variety of large marble, granite, porcelain and stone slabs.
INFORMATION
INSULATION
- Thermal Insulation
- Acoustic Insulation
ENERGY SAVING
A
PRODUCTION
Made In Italy
FORMAT
Large
DOWNLOAD
↓ Data Sheet
BRAND
Gammastone
PRODUCT TYPE
Façades System
RESISTANT
- Resistant to hurricanes
- Impact Resistant
- Resistant to thermal shocks

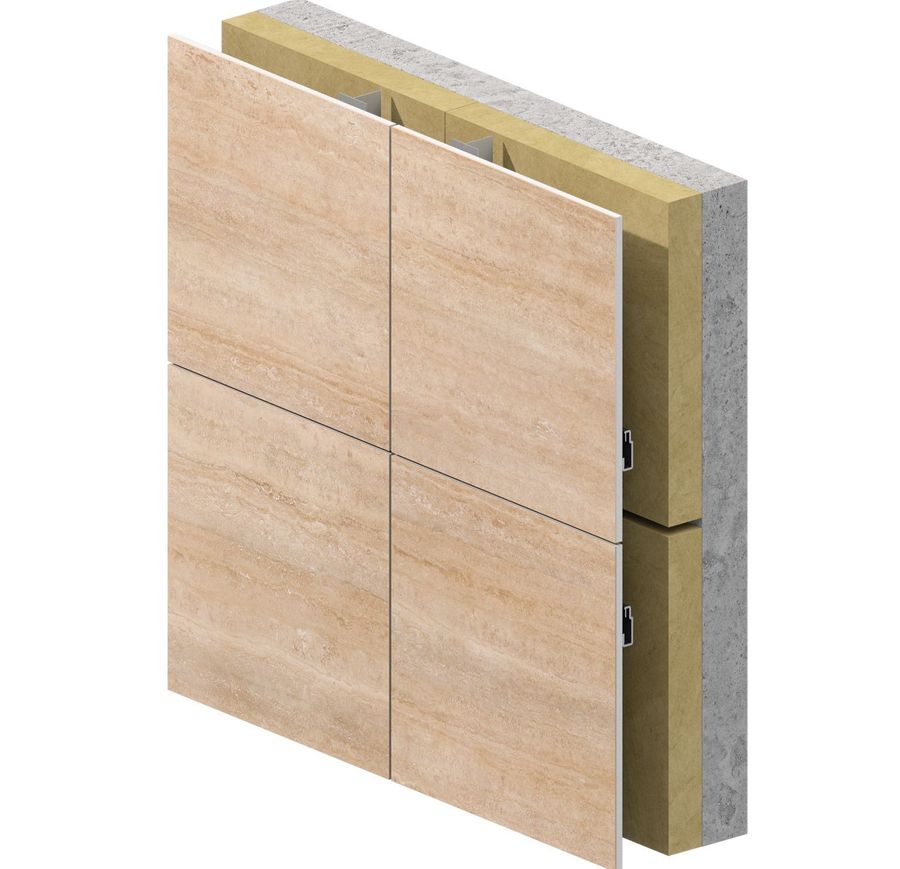

THE FASTENING SYSTEM WITH HIDDEN HOOK
The GammaStone Air ventilated system with mechanically fixed hidden hooks offers maximum design and maximum safety. This system eliminates any fasteners visible on the surface of the panel, resulting in a clean façade with the smallest possible joint. At the same time, it guarantees maximum safety as the system is certified to withstand negative wind loads exceeding 450 kg/sqm.
AVAILABLE SURFACES
THE DYNAMIC THERMO-FLUID SYSTEM (CHIMNEY EFFECT)
The suspension and fasteners of the metal structure are sized so as to create an empty space between the insulating layer and the outer panel. This is an air chamber connected to the outside by air intakes that are usually placed at the base and top of the façade creating a continuous ventilation effect in the slit also called “chimney effect” due to the temperature difference between the air in the ventilation chamber and the outside air. Air enters the space from below and moves upwards, thus creating an efficient airflow that maximises the breathability of the façade. This ventilation allows the rapid elimination of aqueous vapours from the interior. In addition, it considerably reduces condensation and the negative effects of any water penetration. This has led to a reduction in the amount of heat entering or exiting the building.
AVAILABLE SHAPES
TECHNICAL DATA
TECHNICAL DATA VENTILATED FAÇADES
Structurally speaking, GammaStone Air ventilated façades are reliable as our panels are subjected to severe testing against wind, compression, hurricanes and other physical or atmospheric agents. They are also installed on a suspended metal structure fixed to the building's wall with layers of insulation and protective materials inside. Through static, thermal and acoustic analysis, the system is resistant to air, water and wind and meets the most stringent requirements per current legislation.
VERTICAL SECTION
HORIZONTAL SECTION
EXTERNAL CORNER SECTION
INTERNAL CORNER SECTION
AIR WINDOW SILL SECTION
SHEET METAL WINDOW SILL SECTION
CONCEALED AIR SECTION
CONCEALED SHEET METAL SECTION
AIR SIDE PADDING
SHEET METAL SIDE INFILL
