Natural Air Panel
NATURAL AIR PANEL
GammaStone Natural Air is a natural, sophisticated and large-sized stone panel
Natural stones give buildings a beauty that defies the centuries, emitting magnificence and refinement.
The wide range of marble, granite, travertine and other natural stones, as well as the various types of processing, allow us to satisfy every architectural need. The dimensions available depend on the size of the block: the maximum size is 3200 × 1500 mm. All these surfaces can be customised according to the designer's specific needs.
The Natural Air panel is composed of a thin slab of natural stone, a structural core inserted between two sheets of glass fibre and a stainless steel plate with a thickness of 0.5 mm.
GammaStone's unique ability to prepare special monolithic elements ready for installation contributes to the undisputed success of GammaStone Air panels worldwide. They are the result of huge investments in research and development, for advanced solutions; a philosophy that contributes to the study and patenting of innovative building systems. Elements such as corners, intrados, ceilings, columns and beams are assembled entirely in our laboratories and installed with common anchoring systems of extreme simplicity
This system allows the production of architectural geometric elements of large and surprising light, impossible to realise with traditional products. All GammaStone Air products allow architects to carry out complex projects without neglecting the smallest detail.
INFORMATION

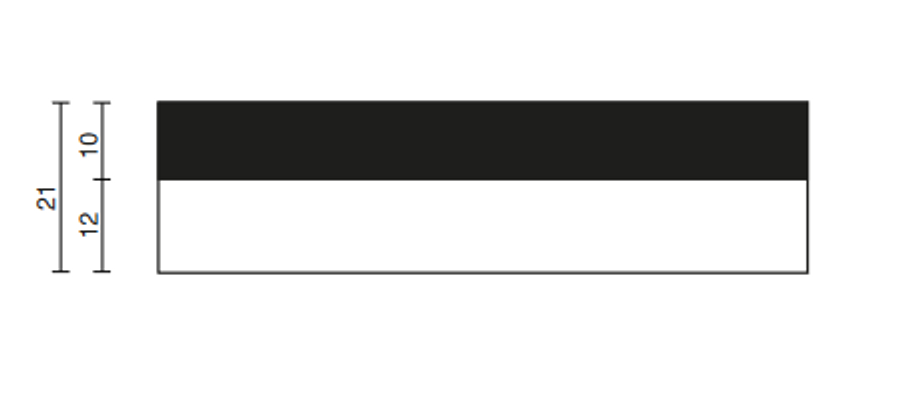

TECHNICAL DRAWINGS
TOTAL THICKNESS
- 17 mm
- 21 mm
- 23 mm
STONE THICKNESS
- 6 mm
- 10 mm
- 12 mm
WEIGHT
- 25 kg/m²
- 30 kg/m²
- 36 kg/m²
TOTAL THICKNESS 02
- 17 mm
- 21 mm
- 23 mm
STONE THICKNESS 02
- 6 mm
- 10 mm
- 12 mm
SHEETS
- Glass
- Fibre
- Stainless
AVAILABLE SYSTEMS
RESERVED FOR ARCHITECTS
We have the ability in GammaStone to make each project unique, even choosing natural stone as a solution. With decades of experience in the use of these materials, we are certain we guarantee a service of the highest quality.
We have been collaborating with the most important quarries on the international scene for years and we offer architects the opportunity to choose the one they prefer, and then dedicate ourselves totally and internally to the various processing processes.From the careful selection of the materials in the quarry, based on the tones and colors, we then proceed in our plants, where we host different automated surface optimisation systems with their specific finishes.
It is the architect, accompanied by our continuous assistance, who chooses the structure and plastering of the product.GammaStone offers you a machine equipped with 16 heads, thanks to which you decide to obtain varying degrees of excavated or honed, brushed or polished surfaces, leather or velvet effect and many more: thus, a practically infinite range of finishing possibilities are taken into account. The goal? It corresponds to our mission: to enhance the originality of each project.
AVAILABLE SHAPES
FINSHES
MATERIALS
Collaborating with all the most significant quarries in the world, we position ourselves as a leader in the natural stone sector. For the production of the Natural Air panel, GammaStone can boast an accurate and structured material selection process. It is our staff who examine them directly in the quarry, verifying their integrity and compliance with the project's purpose.There are several aspects to keep in mind in this procedure: the external appearance, the peculiarities of the grain and cutting along the layer or vein. So we accompany the architect in making the best choice for their project, also based on the availability of materials and their format. An assistance that starts from the extraction and selection phase, through the transport of the blocks and their processing, to reach the realisation of the finished project.
FINISHES
Our proposal offers virtually endless possibilities in terms of finishes. The internal and automated processing process developed by GammaStone allows you to obtain any kind of effect on the surface: honed, brushed, antiqued, open pore, leather type and many others.
