Gammastone Glass Air Panel
GLASS AIR PANEL
GLASS AIR PANEL
GammaStone Glass Air is an exceptionally durable back painted glass panel
Glass, with its timeless beauty and extreme flexibility of use, gives majesty and elegance to buildings and places.
The wide selection of colours, various compositions and processes allow you to meet all architectural needs with endless customisation.
The most important glass manufacturers in the world, our partners, allow us to offer multiple solutions: painted, reflective, screen-printed glass and more.
As for the available dimensions, the Glass Air panel reaches up to 4200 × 1500 mm and all the formats obtained by cutting the standard ones.
The panel consists of an ultrasonic glass plate, a structural core inserted between two fibreglass mats and a 0.5 mm thick stainless steel plate.
INFORMATION
APPLICATIONS REQUIRED
Float or tempered glass is applied according to the size and applications required.
DIMENSIONS IN MM
- 4200x1500 mm (6,30 m²)
- 3200x1500 mm (6,30 m²)
DIMENSIONS IN INCHES
- 165.35”x59.06” (67.81 ft²)
- 128.98”x59.06” (51.67 ft²)
WEIGHT
21 kg/m²
MAXIMUM DIMENSIONS
3000x1000 mm
GLASS TYPES
- Extra light
- Float
AVAILABLE SYSTEMS
TOTAL PANEL THICKNESS
17 mm
GLASS THICKNESS
6 mm
BACK-LACQUERED
- Lacquered
- Reflective
- Silk printed
FINISH GLASS
- Polish
- Sandblasted
- Satin
RESERVED FOR ARCHITECTS
The glass can be customised upon the architect's specific request. Among the features to be considered are RAL colours, texture and finish. The glass can be acidified or back glazed, responding to the possible need to report writings, logos, silkscreens or particular paints. There are several optional details with which to compose ad hoc the glass structure that has been included in the project.
TREATMENTS
Tempered Float
DOWNLOAD
↓ Data Sheet
LARGE FORMATS
The Glass Air panel is a high-performance solution, perfect for any façade that contemplates the need for an application in a back painted glass. With this, you can create extremely large formats with reduced thicknesses or, even, functional monolithic glass elements.

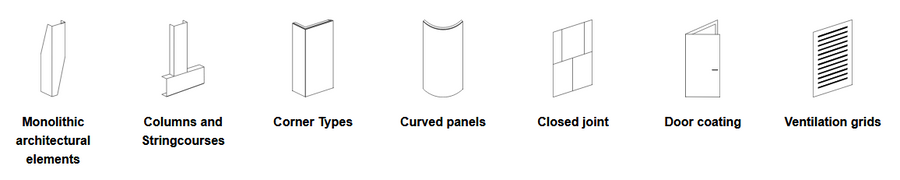

AVAILABLE SHAPES
COLOURS
DETAIL
The Glass Air panel can be customised with all available RAL colours, first screen-printed and then tempered on the surface structure itself.In this way, the colour penetrates inside the glass and the persistence over time of the tone itself is ensured in the face of various atmospheric agents, which could otherwise compromise its characteristics.
COLORS
-Anthracite -Silver -White -Pearl White -Beige -Taupe -Ochre -Orange -Ferrari Red -Bordeaux -Brown -Ocean Blue -Petrol Green -Light Green -Sea Green -Grey -Classic Grey -Ice -Black
