ARCHED SECURITY DOOR
ARCHED SECURITY DOOR
The security door to customize

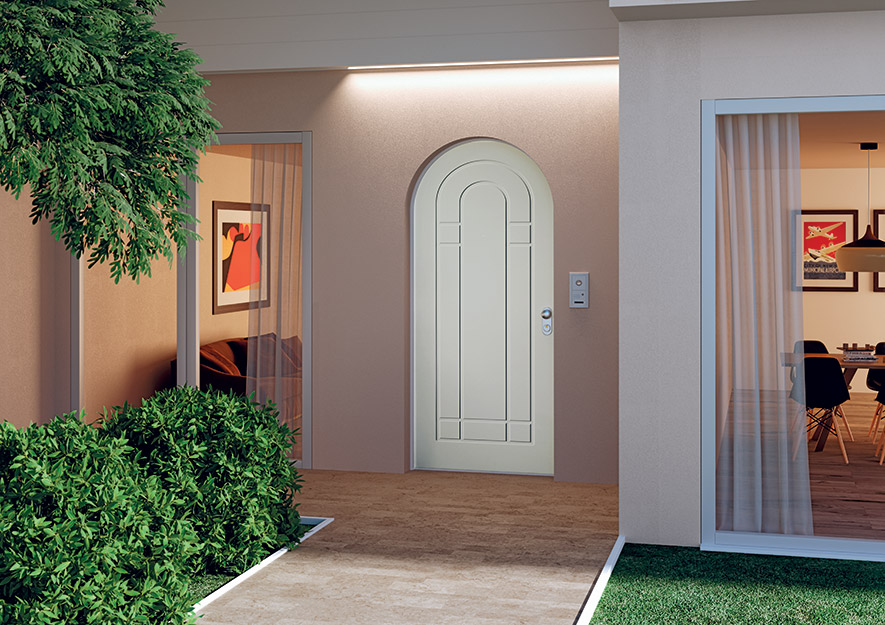

The Opentech arched door has the same technical features of single and double leaf 883 door, and it can be presented with all the finishing panels from Una Volta collection, in different materials: from polymer-veneered to aluminium panels, to all types of wooden panels.
INFORMATION
BRAND
Dibigroup
PRODUCT TYPE
Security Door
PRODUCTION
Made In Italy
DIMENSIONS
- 1 Leaf : W from 70 to 100 x H from 190 to 260 cm (steps of cm 1)
- Double leaf with asymmetric and symmetric leaves : W from 100 to 200 x H from 190 to 260 cm (steps of cm 1)
ACOUSTIC INSULATION
30-31 dB
ANTI-INTRUSION
Class 3
THERMAL INSULATION
1,13 - 1,26 W/m²K
MATERIAL
Aluminium
ACOUSTIC INSULATION NOTES
-30 dB with external panel 4mm thick -31 dB with external panel 10mm thick
AIR PERMEABILITY
Class 3
RESISTANCE TO WIND LOAD
Class 5
THERMAL TRANSMITTANCE NOTES
-1,26 W/m²K with external panel 4mm thick -1,13 W/m²K with external panel 20mm thick
WATERTIGHTNESS
Class 9
INSTALLATION
Security doors for external installation
DOWNLOADS
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
↓ Price list - Steel Frames
↓ Steel Frames price list 2020
↓ Technical drawings for 883 door leaf
↓ Checklist for taking dimensions of security doors
↓ Installation instructions for Electro-Mechanical locking system
↓ Installation instructions for Electro-Mechanical locking system - Russian
↓ Instruction manual for fingerprint cabeling
↓ Instruction manual for the installation and use of eKey fingerprint
↓ Certification 883 - Anti-intrusion
↓ Certification 883 - acoustic insulation 883 model
↓ Certification 883 - Resistance to wind load
↓ Certification 883 - Thermal insulation
↓ Certification double leaf security door - Acoustic insulation
↓ Certification double leaf security door - resistance to wind load
↓ Certification for double leaf security door
INSTALLATION SOLUTIONS
TECHNICAL FEATURES
- Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
- Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers
- Adjustable hinges on 3 axes with hinge covers of the frame colour
- Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
- Thermal insulation with high density polyurethane
![Dibigroup Arched Security Door](http://{"type":"application/jidipi-edit","data":"<figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00089467/opentech-arched-door-L2L.jpg\\" data-image-id=\\"64bfb87ee698fd225544998e\\" srcSet=\\"https://upload.jidipi.com/fit-in/420x0/posts/d00089467/opentech-arched-door-L2L.jpg 420w, https://upload.jidipi.com/fit-in/700x0/posts/d00089467/opentech-arched-door-L2L.jpg 700w, https://upload.jidipi.com/fit-in/900x0/posts/d00089467/opentech-arched-door-L2L.jpg 900w\\" data-image-name=\\"Opentech arched door.jpg\\" width=\\"370\\" height=\\"630\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure>"})
- Wide-angle peephole
- Electromechanical locking system with European Cylinder with one master key and 5 user keys, equipped with drill-proof manganese cover. Opening system with digital keypad, transponder, card, key. The locking system is either manual and electric
- Door leaf detector
- Lateral deadbolts
- Weatherstrip bar or bottom rebate of the door threshold
- 5 fixed deadbolts on the hinge side
- Handle set in brass (inside handle + outside fixed knob). Standard version bronzed
- Control unit
locking system
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
MOTTURA FINGERPRINT READER
Securemme or iseo electro-mechanical locking system with european cylinder with master key and 5 user keys and opening system with mottura finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software is integrated with the reader mechanism. Itcan be open with card too.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
