BRICK AIR PREFABRICATED PANEL
BRICK AIR PREFABRICATED PANEL

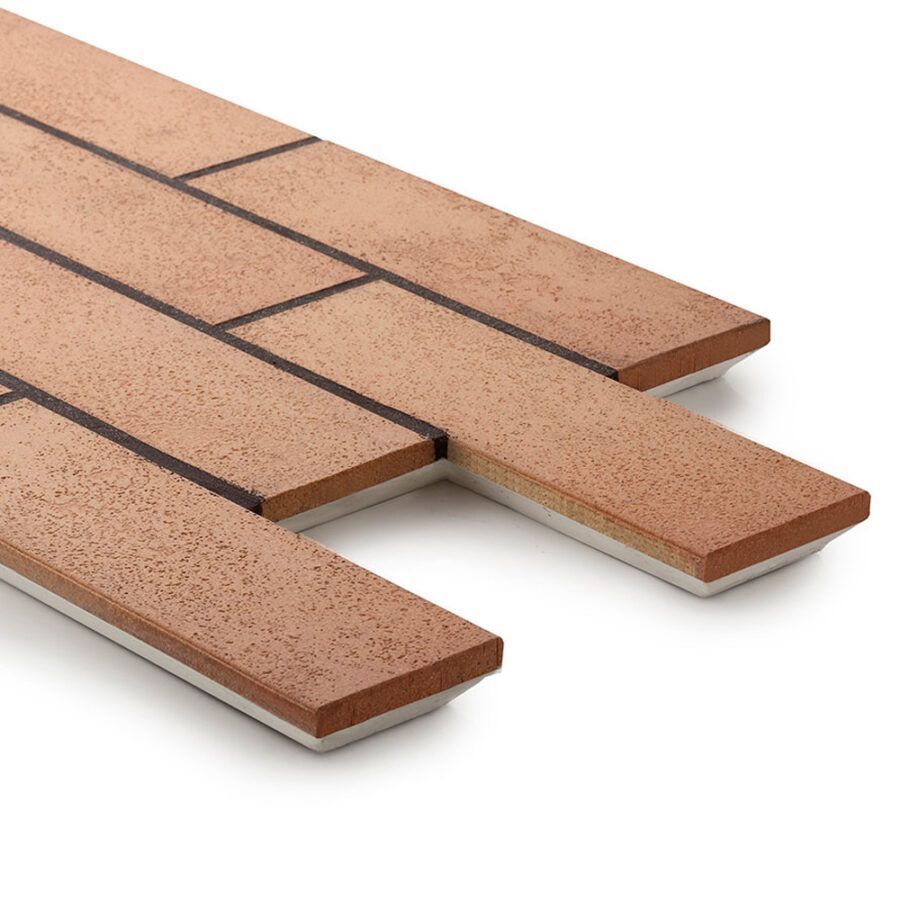

GammaStone Brick Air is a prefabricated panel in facing bricks, klinker or porcelain gres
This solution allows the dry installation of brick panels, ensuring the advantage of rapid application and wonderful aesthetics.
The Brick Air panel is supplied and pointed with mortar ready for installation. Choosing the Brick Air panel means opting for a timeless beauty solution that also lends itself well to buildings equipped with a modern structure. The joints between the panels are designed to ensure a unique effect on the entire façade. Thus, the drainages of these panels, whose production is supported by the most innovative technology, can boast incredible linearity, both vertically and horizontally.
In this way, we can contribute to the construction of magnificent skyscrapers, which can boast a single escape: linear from the ground to the top floor.
It is a meticulous processing, which requires extreme precision in the different manufacturing phases carried out within our production plant. Here we use state-of-the-art engineered systems, which allow us to align the leaks as it would not be possible to do in operation with traditional methods. Each brick is positioned with an extraordinarily effective specific offset, which guarantees as a result a truly exceptional product.
This feature provides great appeal on the building's final result: it ensures speed of installation and offers a highly rational, particularly accurate visual impact.
INFORMATION
TECHNICAL DRAWINGS
TOTAL THICKNESS
- 18 mm
- 26 mm
BRICK THICKNESS
- 7 mm
- 15 mm
WEIGHT
- 17 kg/m²
- 22 kg/m²
AVAILABLE SYSTEMS
SOLUTIONS
The Brick Air panel can be made by opting for a zip or no zip solution, i.e. panel.In the first case the escape is, so to speak, hidden between the various bricks and then sealed with special silicones of the same colour: the resulting effect is not that of a subdivision into panels but of a single façade.
In the second case, however, the structure of the single panel is enhanced.
RESERVED FOR ARCHITECTS
To meet the architect's needs, we collaborate with several major brick manufacturers. So we are sure that we can ensure a wide choice on the various features of the brick. The architect, can customise: the colour, tone, type of finish, shape, grouting, washing, practically any detail. In this way, the panel will respond precisely to the project's creative and aesthetic needs, making it unique and exclusive.
AVAILABLE SHAPES
FINSHES
FINISHES
The bricks can be made using different materials: Facing bricks, Klinker and Gres.The first corresponds to a solution of great value, in great demand and already widely used on projects of a different nature. However, for GammaStone it is crucial to offer other opportunities, so that the result responds perfectly to the architect's desire.
