RasoMuro security door
RASOMURO SECURITY DOOR

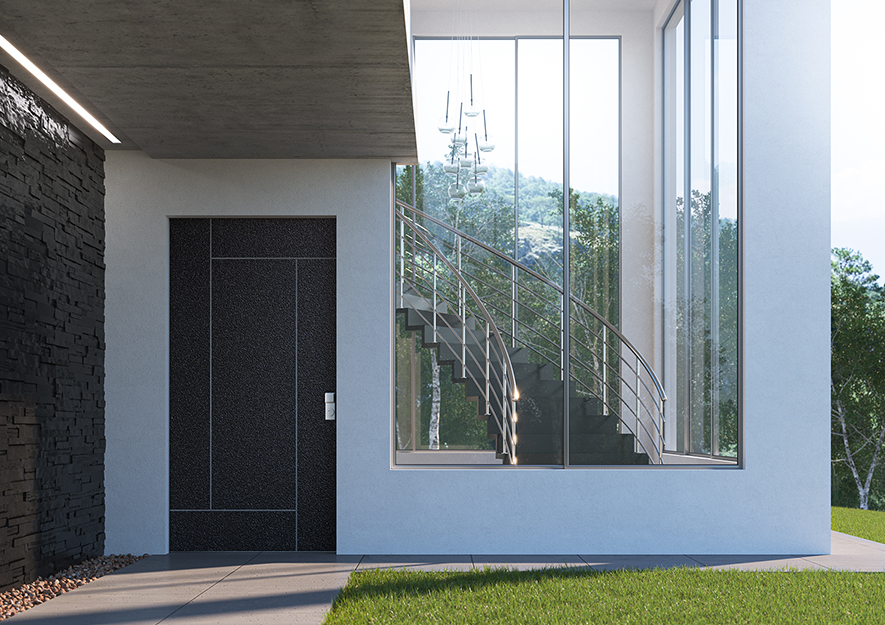

RasoMuro is designed to meet the latest trends of uniform architectural spaces. It is the ideal solution that allows to integrate perfectly the frame into the wall, blending it into the surroundings.
Realized with steel subframe and frame flushed into the wall, Rasomuro guarantees complete integration between the door and the internal walls achieving the desired aesthetic continuity.
Rasomuro offers a multitude of artistic solutions for wall decoration thanks to numerous collections of finishing panels that can be applied on it.
Along with the needs of a modern and minimalist interior design, Rasomuro meets technological performance requirements. It is a door equipped with concealed hinges with 180° opening, double watertight threshold and gaskets throughout the perimeter of the door leaf. These features give the possibility to install Rasomuro in any environment, even in direct contact with atmospheric agents.
locking system
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site.
The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
information
ACOUSTIC INSULATION
30-31 dB
THERMAL INSULATION
1.24 W/m²K
ANTI-INTRUSION
Class 3
INSTALLATION
Security doors for external installation
DIMENSIONS
-Width from 800mm to 1200mm -Height from 2000mm to 2400mm
TECHNICAL FEATURES
-Subframe made with 20/10 thick galvanized steel welded in 3 sides, with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, welded and painted opaque black Ral 9005 -Concealed adjustable hinges on 3 axes, opening angle 180°
-Doorleaf made of two galvanized steel flush with the internal wall, with double gasket in the perimeter of the leaf. -Thermal and acoustic insulation fillings -Security locking system with EVVA European cylinder with 3 or 5 user keys. -Handle set in aluminium silver colour (inside handle + outside fixed knob), model “quadrata” -Double lateral deadbolts, upper and lower. -Weatherstrip bar or bottom watertight threshold
handles
HANDLES

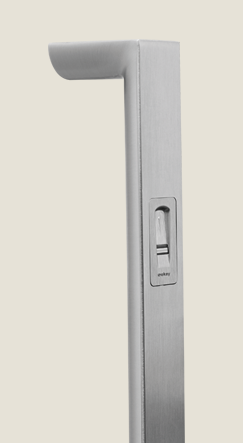

-Maniglione Quadrato Acciaio inox -Concealed inside handle -Long Handle -Maniglione Tondo Nero -Longhandle with fingerprint reader by E-Key -Maniglieria interna nera Quadrata -Handle kit Quadrata -Pomolo esterno nero Quadrata -Maniglione Quadrato nero -Quadrata knob
Handle
knob
