OPENTECH WITH GLASS INSERT
OPENTECH WITH GLASS INSERT
The security door to customize
The Opentech door with the glass insert has the same technical features of Opentech single leaf and it is possible to insert a safety glass in the leaf, choosing among different shapes, dimensions and colours. The Opentech door with glass insert can be realized with finishing panels from Una Volta collection.
locking system
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range.
The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
MOTTURA FINGERPRINT READER
Securemme or iseo electro-mechanical locking system with european cylinder with master key and 5 user keys and opening system with mottura finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software is integrated with the reader mechanism. Itcan be open with card too.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force. The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
INFORMATION
THERMAL INSULATION
1,7 - 1,8 W/m²K
ACOUSTIC INSULATION
30-31 dB
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
INSTALLATION
Security doors for external installation
GLAZING
Double glazing 26 mm thick
ANGLE
Wide-angle peephole
ACOUSTIC INSULATION NOTES
30 dB with external panel 4mm thick 31 dB with external panel 10mm thick
THERMAL TRANSMITTANCE NOTES
1,7 W/m²K with external panel 20mm thick 1,7 W/m²K with external panel 10mm thick 1,8 W/m²K with external panel 20mm thick
TECHNICAL FEATURES
-Subframe made with 20/10 thick galvanized steel with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers. Standard colour: brown Ral 8017
-Adjustable hinges on 3 axes with hinge covers of the frame colour -Doorleaf made of two galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf -Thermal insulation with high density polyurethane. -Glass-fixing frame
-Double glazing 26 mm thick -Wide-angle peephole
-Electromechanical locking system with European Cylinder equipped with drill-proof manganese cover. Opening system with finger print scanner digital keypad with secret code, transponder, card or key with 1+5 user key. The locking system is both manual and electric powered, to ensure opening during a power failure. -Door leaf detector -Lateral deadbolts -Handle set in aluminium silver colour (inside handle + outside fixed knob). Standard colour: bronzed -Weatherstrip bar or bottom rebate of the door threshold -5 fixed deadbolts on the hinge side
INSTALLATION
INSTALLATION SOLUTIONS
- Steel frames with thermal break for Opentech
- Box-shaped steel frames for Opentech
- Aluminium frame for Opentech with glass insert
- Steel frame for Opentech with glass insert
- Two-colour steel frames
Opentech
insert
frames

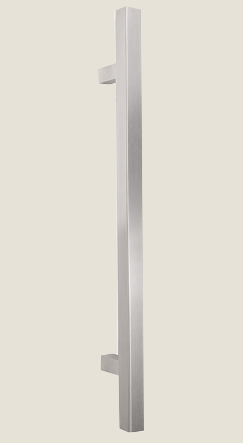

HANDLES
