OPENTECH - SINGLE LEAF SECURITY DOOR
OPENTECH - SINGLE LEAF SECURITY DOOR
The security door with finger print opening system
Opentech is the most hi-tech security door among Di.Bi models.Opentech is equipped with the electromechanical locking system and finger print scanner, it allows to register up to 99 finger prints, so you don't need to duplicate keys anymore.
information
DIMENSIONS
-Dimension 1 : Width from 70 to 100 x - Height from 190 to 245 cm (steps of cm 1)
-Dimension 2 : Width from 101 to 110 x - Height from 190 to 230 cm (steps of cm 1)
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
ACOUSTIC INSULATION
30-31 dB
RESISTANCE TO WIND LOAD
Class 5
ACOUSTIC INSULATION NOTES
-30 dB with external panel 4mm thick -31 dB with external panel 10mm thick
THERMAL TRANSMITTANCE NOTES
-1.26 W/m²K with external panel 4mm thick
-1.13 W/m²K with external panel 20mm thick
PRODUCT TYPE
Security Door
ACOUSTIC INSULATION
1.13 - 1.26 W/m²K
INSTALLATION SOLUTIONS
THIS LOCKING SYSTEM INCLUDES ALL OPENING METHODS OFFERED BY DI.BI
- Finger print scanner
- Digital keypad with secret code
- Transponder
- Card
- Traditional key
- Opentech is now available with a max width of 110 cm
WATERTIGHTNESS
Class 9
INSTALLATION
Security doors for external installation
TECHNICAL FEATURES
-Subframe made with 20/10 thick galvanized steel with 12 anchors to wall -Frame made with 20/10 thick galvanized steel, painted grey Ral 9006 and complete with plastic covers, gasket and footers. Standard colour: brown Ral 8017.
-Adjustable hinges on 3 axes with hinge covers of the frame colour -Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
-Thermal insulation with high density polyurethane -Wide-angle peephole -Electromechanical locking system with European Cylinder with one master key and 5 user keys, solution key-key with inside fast unlock, equipped with drill-proof manganese cover. Opening system with digital keypad, card or key. The locking system is either manual and electric -Door leaf detector -Lateral deadbolts
- Weatherstrip bar or bottom rebate of the door threshold -5 fixed deadbolts on the hinge side -Control unit. -Handle set in aluminium silver colour (inside handle + outside fixed knob)
locking system
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
MOTTURA FINGERPRINT READER
Securemme or iseo electro-mechanical locking system with european cylinder with master key and 5 user keys and opening system with mottura finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software is integrated with the reader mechanism. Itcan be open with card too.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3ksplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3ksplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3ks ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
Ics offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site.
The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HANDLES

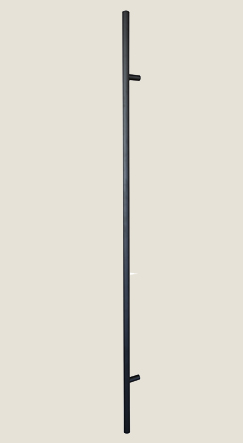

Handle
