OPENTECH SOUND ENTRANCE DOOR
OPENTECH SOUND ENTRANCE DOOR
The security door with electromechanical opening system and 42 dB of acoustic insulation
Opentech is the most hi-tech security door among Di.Bi models.
Opentech is equipped with the electromechanical locking system and finger print scanner, it allows to register up to 99 finger prints, so you don't need to duplicate keys anymore.
locking system
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
EKEY FINGERPRINT READER
Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.
MOTTURA FINGERPRINT READER
Securemme or iseo electro-mechanical locking system with european cylinder with master key and 5 user keys and opening system with mottura finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software is integrated with the reader mechanism. Itcan be open with card too.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.
It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
INFORMATION
PRODUCT TYPE
Entrance Door
THERMAL INSULATION
1.55 W/m²K
ACOUSTIC INSULATION NOTES
-41 dB with external panel 4mm thick -42 dB with external panel 10mm thick
DEADBOLTS
-5 fixed deadbolts on the hinge side -Lateral deadbolts
THICKNESS
- Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
- Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
RESISTANCE TO WIND LOAD
Class 5
WATERTIGHTNESS
Class 9
INSTALLATION
Security doors for external installation
OPENING METHODS
- Card
- Traditional key
- Transponder
- Finger print scanner
- Digital keypad with secret code
DIMENSIONS
- Standard : W 80-85-90 x H 200-210 cm
- Extra : W from 70 to 100 x H from 200 to 230 (steps of cm 5)cm
- Out of standard : W from 70 to 100 x - H from 190 to 245 (steps of cm 1)cm
BAND
Dibigroup
ACOUSTIC INSULATION
41-42 dB
INSULATION
Thermal and acoustic insulation with rock wool (density about 120 kg/m3)
ANGLE
Wide-angle peephole
DETECTOR
Door Leaf Detector
HANDLE SET
Handle set in aluminium silver colour (inside handle + outside fixed knob)
ELECTROMECHANICAL LOCKING SYSTEM
Electromechanical locking system with European Cylinder equipped with drill-proof manganese cover. Opening system with finger print scanner digital keypad with secret code, transponder, card or key with 1+5 user key. The locking system is both manual and electric powered, to ensure opening during a power failure.
OPENING
- Push
- Pull Opening
THRESHOLD
Weatherstrip bar or bottom rebate of the door threshold
TECHNICAL FEATURES
- Inner reinforcement spars
- Adjustable hinges on 3 axes with hinge covers of the frame colour
- 2 panels made of polyester fibre, placed in the locking system area, all along the bars.
- Frame made with 20/10 thick galvanized steel, painted black Ral 9005 and complete with plastic covers, gasket and footers. Standard colour: brown Ral 8017.
DOWNLOADS
DOWNLOADS (PERFORMANCES - REG. EU 305/2011)
↓ Certification 883 - Anti-intrusion
↓ Certification 883 - Resistance to wind load
↓ Certification 883 - watertightness
↓ Checklist for taking dimensions of security doors
PRODUCTS GUARANTEE
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
INSTRUCTION MANUALS
↓ Instruction manual for fingerprint cabeling
↓ Instruction manual for the installation and use of eKey fingerprint
↓ Assembly instructions for frame sol. B (with top window)
↓ Installation Instruction for Subframe without Angle Stiffeners
↓ Installation instructions for aluminium frame (in Italian)
↓ Installation instructions for aluminium frame without subframe and without glass (in Italian)
↓ Instruction manual for the installation of frames on 1 leaf security doors
↓ Instruction manual for the installation and adjustment of security doors with regular hinges
↓ Installation instructions for Electro-Mechanical locking system
↓ Installation instructions for Electro-Mechanical locking system - Russian
Installation solutions
INSTALLATION SOLUTIONS
-Box-shaped steel fras for Opentech -Aluminium frame for Opentech -Steel frame for Opentech -Steel frames with thermal break for Opentech -Two-colour steel framesme

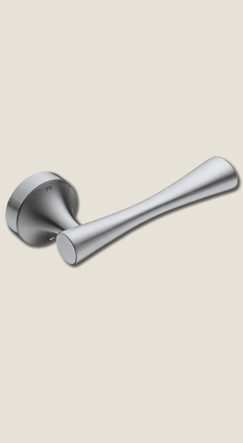

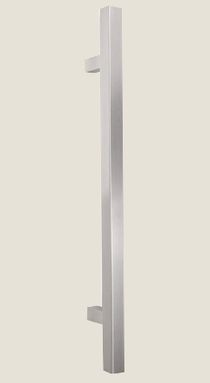

HANDLES
