Eclisse Syntesis® Line Battente Door Frame

FLUSH DOORS FOR EXTREME CUSTOMIZATION

Total freedom to your interior design

-ECLISSE Syntesis^® Line Battente is the solution that allows to install a hinged door with no jambs and architraves, completely flush with the wall. -With or without header, it grants a full integration between door panel, wall and ceiling.

TO HIDE OR TO BE PROTAGONIST?

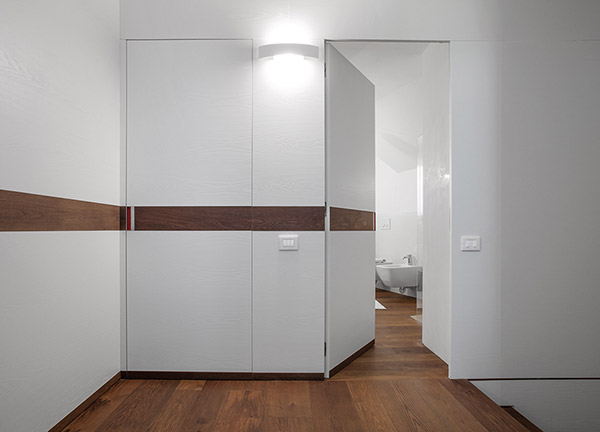

According to your taste, the door can be painted in the same color as the wall and be completely hidden from the view, or it can be lacquered or decorated with finishing or prints that put it in clear prominence making it a real design elements.

DETAILS THAT MAKE THE DIFFERENCE

-The structural characteristics of the frame are designed to guarantee a perfect flush-to-wall aesthetic and a functional performance. -Both elements (door panel and frame) are coated with a layer of primer to facilitate paint adhesion. -The magnetic lock, also flush with the wall, ensures extraordinarily quiet closing. Thanks to the adjustable tensioning rod, the door is constantly kept under tension and perfectly level with the wall.

DIMENSIONS AND TYPES OF OPENINGS

-ECLISSE Syntesis® Line Battente is a universal frame that places no limits on the opening directions: available as push door, right and left side, and as pull door, right and left side. -Non-standard sizes are not a problem, you can go up to 2700 mm and have a door that is flush with the wall and with the ceiling. A special feature of this product line is that the doors can be fitted without header, to achieve a total integration between the door, the wall and the ceiling.

TRY A DIFFERENT ANGLE

-ECLISSE Syntesis® Line Battente can also be supplied with an inclined upper edge, the ideal solution for sloping ceilings, attics or under-stair closets. The frame can be realized with different angles, both with or without header.
-ECLISSE Syntesis^® Line Battente with angled door is available only for pull version for solid and stud walls.

CONTROLLED OPENING

The electric strike for hinged door is an access control device that allows to open doors unlocking the lock via an electric impulse. The activation mechanism (magnetic card, pushbutton, etc.) is not included.

SILENCE HAS MORE SPACE

The flush hinged door with acoustic performance

ECLISSE Syntesis^® Line Battente, is now also available complete with acoustic kit, a solution with certified noise reduction up to 33 dB.

FORMAL COHERENCE AND RIGOUR WITH A FLUSH-TO-WALL SKIRTING

-Flush-to-wall doors installed on ECLISSE Syntesis® hinged and sliding frames can be combined with a flush-to-wall baseboard, thanks to a special aluminium profile that allows the skirting board to be fitted flush with the wall. -The result is minimalism, linearity and the absence of protrusions. Even along the stairs.

FORMAL COHERENCE AND RIGOUR STILL, BUT WITH A TWIST

The illusion of a totally flush wall with a play of light and volumes that only appear when changing your point of view. You can have this combining ECLISSE Syntesis® doors with ECLISSE Delta, the innovative inclined baseboard with tapered terminal elements (exclusive patent). The pure linearity of surfaces perfectly combined with a play of volumes.

First, the frame fits both to solid and stud walls. It comes with a plastic cover that protect it from dirt or scratches at construction site and is provided with spacer panels to ensure perfect squaring of the frame.

^{ACOUSTIC GASKETS}

Applied to the door, they seal it at the top and vertically. Linked to the bottom weatherstrip, the gaskets seal the entire door perimeter.

^{BOTTOM WEATHERSTRIP /}

-It is inserted into the bottom milling of the door panel and is adjustable in downward and tilt, for even pressure over the entire length. -The weatherstrip raises and lowers with every opening and closing of the hinged door. -The rounded, flexible shape envelops the gaps with precision.

STEP 1

- Measure the overall wall space available.
- The pocket door frame needs to fit within this space.

STEP 2

Look at the sizing table and decide which frame size will fit in the available space and which door size you will have with that frame E.g.
- Overall wall space in length and height of the partition : 1800x2300 mm
- Suitable door panel sizes: if you are willing to use the largest standard door panel to provide the largest possible passage width, from the size chart of the ECLISSE Single model you can see that the widest frame size fitting the space is 1715x2190 mm, which will provide a max. passage size of 800x2100 mm and will require a 815÷835x2110 mm door panel to fit the pocket door system.

STEP 3

If you want a larger passage width or door size than those provided by the fitting frame size, you may consider a couple of different options.
