Mvliving Elba Bioclimatic Pergolas
ELBA BIOCLIMATIC PERGOLAS
ELBA BIOCLIMATIC PERGOLAS
Comfort for your outdoor living, even when spaces are limited.
information
CONTROL
Motorised control including controller and remote control
BRAND
Mvliving
PRODUCTION
Made in Italy
RESISTANT
Weather resistant
INSTALL
Easy to install
FASTENERS
Stainless Steel Fasteners
PRODUCT TYPE
Bioclimatic Pergolas
ORIENTATION
Orientation from 0° to 140°
LOUVRES IN PAINTED
188.5 mm louvres in painted aluminium
COLORS
-Standard : White Ral 9010, Ivory Ral 1013, White Ral 9010 SOFT, Ivory Ral 1013 SOFT, Anthracite Grey 7016 SOFT
-Colouring With Application : Silver Ral 9006
CONFIGURATIONS
- Wall
- Wall with side by side
- Freestanding
- Freestanding with side by side
- Patio
MATERIALS
- Aluminium
- Stainless steel
WIND RESISTANCE
Class 5
SNOW LOAD
80 Kg/m2
CERTIFICATIONS
Certifications (EN 13659)
DOWNLOAD
↓ Brochure Ischia - Elba
FEATURES
An adjustable louvre system with orientation up to 140° and a 45° configuration for wall-mounted installation or freestanding configurations, also withside-by-side modules. The bioclimatic features of the sun shade offer greater control over direct sunlight and air exchange. The power of the standard linear motor let the large surfaces be covered with a single module. The frame can be equipped with LED lighting to create a relaxing and striking atmosphere.

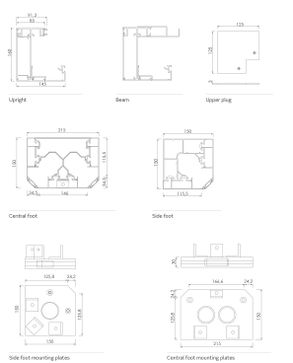

TECHNICAL DIAGRAMS
COMPONENTS
SECTIONS
