TECNOPIÙ PANELS
Corrugated Multiwall Polycarbonate Sheet Joined To Safety Metal Net.
TecnoPIÙ is a product designed, manufactured and patented by PolyPIÙ thanks to the research of our technical staff, able to create a unique solution, conceived by the union between a multiwall polycarbonate corrugated sheet and a safety metal net.
TecnoPIÙ is a pre-assembled product, that can be used to offer a higher level of safety in the installation of skylights in conjunction with metal sheets or panels in flat roofs.
In addition, the product TecnoPIÙ has received Reports and Certificates of Testing from the CSI institute regarding the soft-body shock resistance according to the norm EN 14963:2006 and the Fire test report Euroclass B s1 d0.
information
BRAND
Polypiu
PRODUCTION
Made in Italy
INSULATION
Good thermal insulation
APPLICATIONS
- High-performance flat roof
- Flat covering
- Ridge-eaves skylight
- Discover all the applications
PRODUCT TYPE
Sandwich Panels
EN
14963:2006
COLLECTION
Tecnopiu
CONJUNCTION
-Metal Sheets -Panels
STRENGTHS
-Good thermal insulation -Available flat and curved -High load resistance -High resistance to wind pressure -Ease/cheapness of fitting
-UV protection -Heat sealing -Complete system of accessories
FEATURES
-Available colors : Satined clear and opal
-Customizable colors on request : No
-Product certifications : Fire class
-Shock tests 1200 Joules

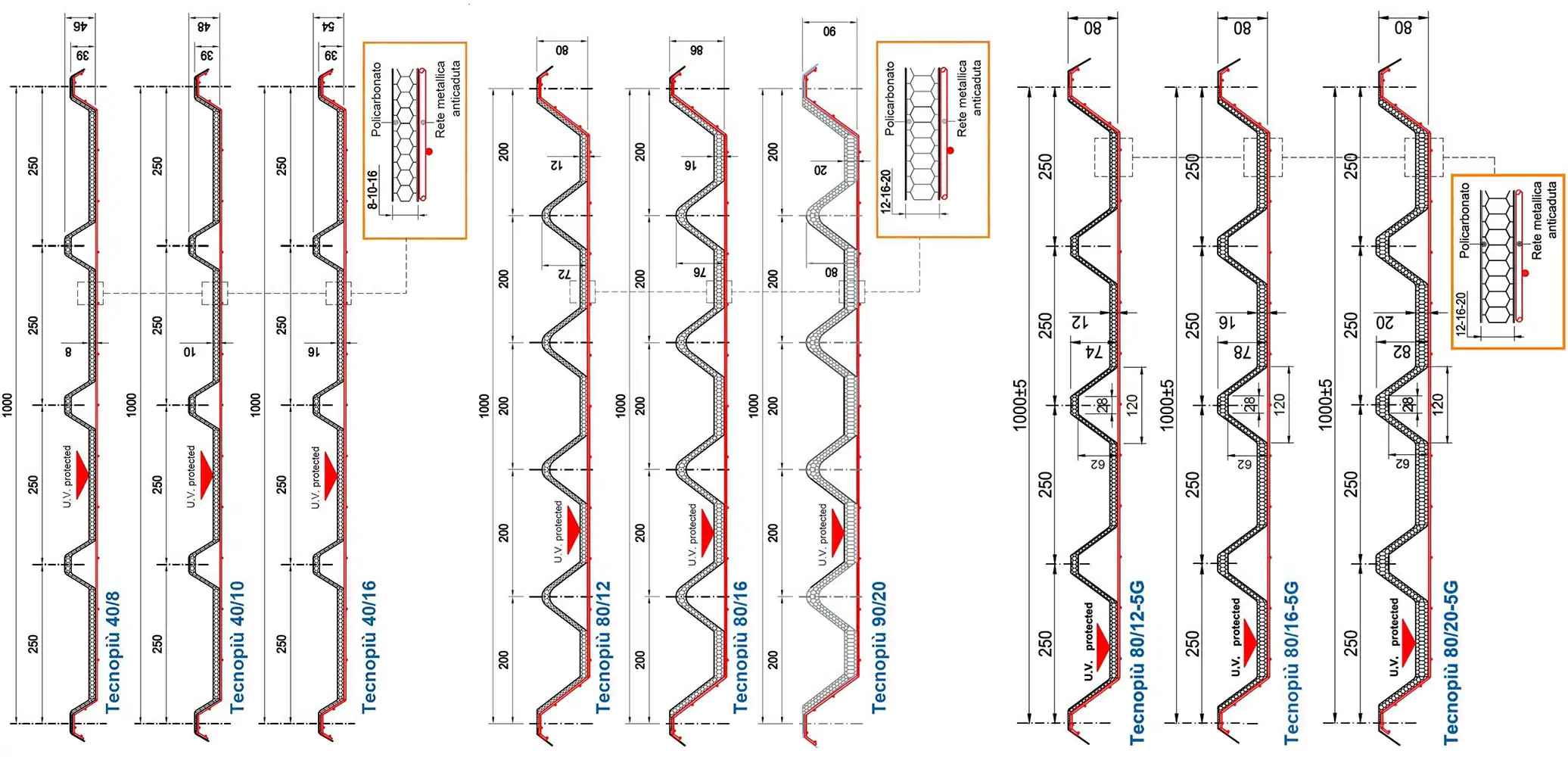

TECHNICAL DRAWING
