Polypiu Panelpiù Sandwich Panels
PANELPIÙ SANDWICH PANELS
PANELPIÙ SANDWICH PANELS
Modular system in interlocking multiwall polycarbonate
The uv-protected modular system in interlocking multiwall polycarbonate for industrial glazings and windows.
PanelPIÙ 500 is a polycarbonate interlocking modular system extruded in various thicknesses (16mm, 20mm, 25mm, 40mm, 55mm, 60mm & 65mm), ideal for the realization of industrial vertical glazing and windows.
It is a cost-effective product with a high light transmission figure, good thermal insulation properties and an attractive aesthetic finish as no connection profiles are needed.
The system is completed by framing profiles and finishing accessories.
information
PRODUCTION
Made in Italy
PRODUCT TYPE
Sandwich Panels
BRAND
Polypiu
INSULATION
Good Thermal Insulation
SHEET
Flat Sheets
TRANSMISSION
High Light Transmission
PROTECTION
UV Protection
AVAILABLE COLOURS
Satined clear and opal
VERSION
4 Wall Version
ANGLES BETWEEN TWO POLYCARBONATE WALLS
90° angles
MINIMUM ORDER QUANTITY
400 sqm
RESISTANCE
High resistance to wind load
CUSTOMIZABLE COLOURS
-Smoky-brown -Blue -Green -Red -Yellow -Orange -Light Blue -Fuchsia -Pearly -Gray -Matt -Bicolor.
THICKNESS
-16mm -20mm -25mm -40mm -55mm -60mm -65mm
CERTIFICATIONS
- Fire Class
- Thermal Transmittance
ROOFING APPLICATION
The PanelPIÙ 500 system is not watertight guaranteed for roofing applications.
APPLICATIONS
- Glazing
- Shed
- Continuous windows
STRENGTH
- Pleasant aesthetic effect
- Possibility of windows
- Complete accessory system
- Possibility of thermal break profiles
TECHNICAL DRAWING
PANELPIÙ 500/65: THE ONLY PANEL THAT MEASURES 65 MM
A new product concept, designed with the utmost care by our specialists to guarantee top-of-the-range performance in terms of resistance and wear and thermal insulation. The 65 mm thickness, never realized before, guarantees incredible technical and aesthetic advantages, as well as tangible environmental sustainability thanks to the thermal insulation.
PANELPIÙ 500/40 : POLYCARBONATE ANGLE PROFILE
The polycarbonate angle profile for panelpiù 500/40mm (available for the 4-wall version only) allows the construction of 90° angles between two polycarbonate walls, creating aesthetic continuity with a nice visual impact. This profile is also a good solution for the creation of inner partition walls and can fit within the existing aluminum profiles designed for panelpiù 500/40. It is extruded in uv-protected multiwall polycarbonate and available in a wide range of colours.

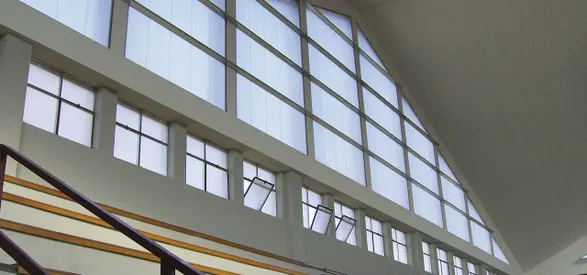

GALLERY
