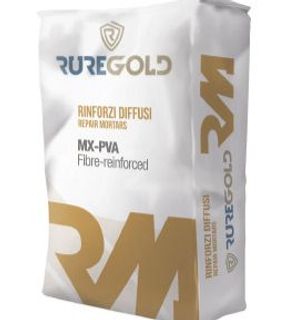

Ruregold MX-PVA Fibre-reinforced Plaster
MX-PVA Fibre-reinforced plaster
MX-PVA FIBRE-REINFORCED
High performance mortar for the structural restoration of walls with polyvinyl alcohol fibers
MX-PVA Fibre-reinforced is a premixed mortar based on a high pozzolan hydraulic binder and low salt content, select aggregates, additives, and polyvinylalcohol fibers.
Its particular composition excludes the possibility of chemical reactions with salts (sulphates, carbonates, nitrates, chlorides, etc.) present in the walls of old buildings.
Following the addition of water, a highly adhesive, thixotropic mortar without shrinkage is obtained. It is durable and suitable to improve the ductility and toughness of masonry structures.
It is ready to use: just add water to obtain a thixotropic mixture with no bleeding or segregation phenomena. It can be applied by trowel or spray.
In cases where a high aesthetic quality of the surface is required, use a suitable finishing coat.
INFORMATION
PRODUCT TYPPE
Plaster
NA' (CEN/TC 125)
< 350 ppm
WATER PER 100 KG OF DRY PREMIX MORTAR
16 -17 liters
WATER ABSORPTION (EN 1015-18)
0.2 ((Kg/(M2xmies))
CHARACTERISTICS
- Wet supports
- Compatible with masonry
- Tensile strain-hardening behavior
- Resistant to the freeze-thaw cycles
SOLUBLESULFATES(CEN/TC 125)
< 10 ppm
WATER ABSORPTION (EN 1015-18)
W1
COMPRESSION RESISTANCE AT 1, 7, 28 DAYS (EN 1015-11)
10; 24; 45 MPA
RESISTANCE
High resistance to chemical agents (chlorides, sulphates, acid rain, carbon dioxide, etc.).
PROPERTIES OF THE SYSTEM
- High capacity to absorb energy after cracking.
- High ductility and toughness.
- Increased tensile and flexural strength even after cracking.
- Excellent resistance to impact, wear and dynamic loads in general.
- No corrosion of PVA fibers.
- Excellent adhesion to masonry structures.
- High breathability.
- Complete compatibility with historical masonry.
- Absence of shrinkage cracking.
- Ease and speed of installation and finishing.
BENDING RESISTANCE AT 1. 7. 28 DAYS (EN 1015-11)
A.2;?3.1.7 MPA
CONSISTENCY OF THE MORTAR (EN 1015-3)
170 +/- 10 mm
VOLUME OF FRESH MORTAR PER 100 KG OF DRY PREMIX
About 63 liters
DENSITY OF HARDENED MORTAR (DRY; EN 101510)
Approx. 1600 kg/m3
SPECIFIC WEIGHT OF FRESH MORTAR (EN 1015-6)
1.85 ± 0.05 g/cc
COMPLIES WITH EN 998-1 AND EN 998-2
Complies with EN 998-2 MX-PVA Fibre-reinforced complies with EN 998-2 Mortar for general purposes for external use in elements subject to building code requirements (G).
FEATURES
Pure natural hydraulic lime (NHL 3.5) based mortar for the structural restoration of masonry, construction of structural plasters, and the preparation of the substrate for the application of structural reinforcements
CONSUMPTION OF DRY PREMIXED MORTAR
About 15.9 Kg/m2/cm
THERMAL CONDUCTIVITY/DENSITY (EN 1745-5.4.6)
(AULDRY) 0,83 W/MK (AS PER TABLE)
SOLUBLE CHLORIDES (CEN/TC 125)
< 10 ppm
ELASTIC MODULUS AT 28 DAYS (EN 13412)
15 GPA
DOWNLOADS
↓ Data Sheet
CA" (CEN/TC 125)
< 350 ppm
DENSITY OF FRESH MORTAR (EN 1015-6)
Approx. 1750 kg/m3
THE STRUCTURAL PVA FIBERS
The structural PVA fibers provide resistance to the composite material, modifying the stress-deformation ratio. The three-di-mensional contribution of the fibrous reinforcement is particularly noticeable in the post-cracking phase, considerably increasing the material's ability to absorb energy and slow down the crack-ing process. It follows that MX-PVA Fibre-reinforced effectively replaces the use of the reinforced slab with reinforcement mesh, con-siderably reducing the thickness (only 3 cm compared to 7 or 8 cm needed for a standard reinforced slab).
K• (CEN/TC 125)
< 350 ppm
MG" (CEN/TC 125)
< 350 ppm
POROSITY OF THE MORTAR
22% (normal 4/80) - open porosity
WATER VAPOR PERMEABILITY
P 15/35 as per table (EN 1745-5.4.4)
POROSITY OF THE MORTAR
68% (normal 4/80) - pore volume with d<0.5
FRESH MORTAR WORKABILITY TIME (20°C)
About 50 min.
FIELDS OF APPLICATION
-Restoration of structures subject to shock loads. -Fiber-reinforced plasters (without reinforcement mesh) for the restoration of infill walls. -Reinforcement of load bearing outer layers (without reinforcement mesh) to consolidate vaults. -Consolidation of existing walls by repointing with fiber reinforced mortar. -Interventions in structures exposed to severe chemical-environmental conditions. -Repair of damaged masonry structures. -Preparation layer on masonry elements (brick, tuff, stone) for the application of structural reinforcements with composite materials.
ADHESION (EN 1015-12)
1. 0.6 n/mm2 - fp: c
REACTION TO FIRE (EN 13501-1
Euroclass Al
SPECIFICATIONS FOR THE SUPPLY
25 Kg Bags On 1.000 Kg Pallets
