Bemo Standing Seam Facade
STANDING SEAM FACADE
STANDING SEAM FACADE
Smooth transition & free forms with the standing seam façade from Bemo
The right solution for new construction or renovation
Free forms, smooth transitions from roof to façade, and cylindrical and three-dimensional building shapes are increasingly required in modern architecture. A BEMO standing seam façade is exactly the right solution for this. BEMO standing seam impresses with many benefits, a variety of different systems and is suitable for both new construction and renovation.
Different profile widths from 100 mm to 800 mm, 2 profile heights, almost infinite panel engths, parallel, conical, and free-form profiles offer architects and designers a wide range of possibilities in the use of the standing seam façade. The standard materials used are aluminium and steel, but can be stainless steel, zinc, or copper. Radii for curved profiles start as low as 600 mm, depending on the choice of material.
Convex and concave radii are possible with the standing seam façade. The penetration-free and therefore invisible fastening leaves nothing to be desired and provides maximum safety. Length expansion takes place smoothly and permanently on the system brackets. BEMO standing seam brackets without thermal bridges optimise thermal insulation in low system structures. The standing seam system is completed by extremely variable, economical BEMO substructure systems for optimum tolerance compensation for any building shape, and of course all designed by the BEMO technical and design team.
FEATURES
BEMO FAÇADE PROFILES MEET THE VERY HIGHEST STRUCTURAL REQUIREMENTS
Straight or conical – free choice of shape and material of BEMO standing seam profiles
Bemo standing seam profiles ensure maximum safety for building cladding. Even in special shapes, bemo façade profiles guarantee full functionality. Our standing seam façades also meet the highest demands in terms of structural soundness and acoustics.
On top of that, they can be used for almost any shape of building. The visual design possibilities are many and varied. You have free choice of profile shape, metal, surface, and colour. By interlocking onto special standing seam holders, a penetration-free installation is also ensured.
BEMO-MONRO® FOR A FLEXIBLE STANDING SEAM FAÇADE COVERING
High adaptability for free-form buildings with BEMO-MONRO®
Bemo-monro® is a patented standing seam system that allows flexible adaptability of standing seam roofing to virtually any building shape. The system lets you create unique roofing at the front, where each panel is usually unique. Based on an exact 3d measurement, the metal sheets are shaped to the millimetre so that they fit perfectly into the measured space on the free-form building.
The monro® system is generally combined with a substructure that is adjustable in three dimensions. This allows unevenness in the supporting structure to be corrected easily and efficiently. Bemo 3d design plans the standing seam system ready for installation in the standing seam roofing of the façade.
For larger circular and conical buildings, special conical profiles are used. With a minimum width of 100 mm and a maximum covering width of 800 mm, these special profiles allow almost any requirement to be implemented. Because the standing seam sheets for the façade are formed to fit precisely in a single work step, there is no need for time-consuming trimming during the project. All bemo special profiles are also offered in curved shapes and in all materials.
PERFORATED FAÇADES WITH BEMO STANDING SEAM PROFILES
Protection and design freedom with perforated standing seam façades
Perforated bemo standing seam profiles impress with their many advantages: design and form freedom, high span widths and solar protection. Perforated standing seam profiles from bemo can also be used to create perforated façades and therefore fulfil important protective functions in the façade.
The profiles can be provided with almost any hole pattern and width. Parking garages can be clad floor by floor, thus saving substructure and installation costs. The profiles are slipped onto bemo brackets and therefore allow continuous panels of 20 m and more. Apart from the vertical arrangement, standing seam sheets can also be laid horizontally or diagonally. Panel seams come in two versions: with unperforated seams or fully perforated for free-form profiles.

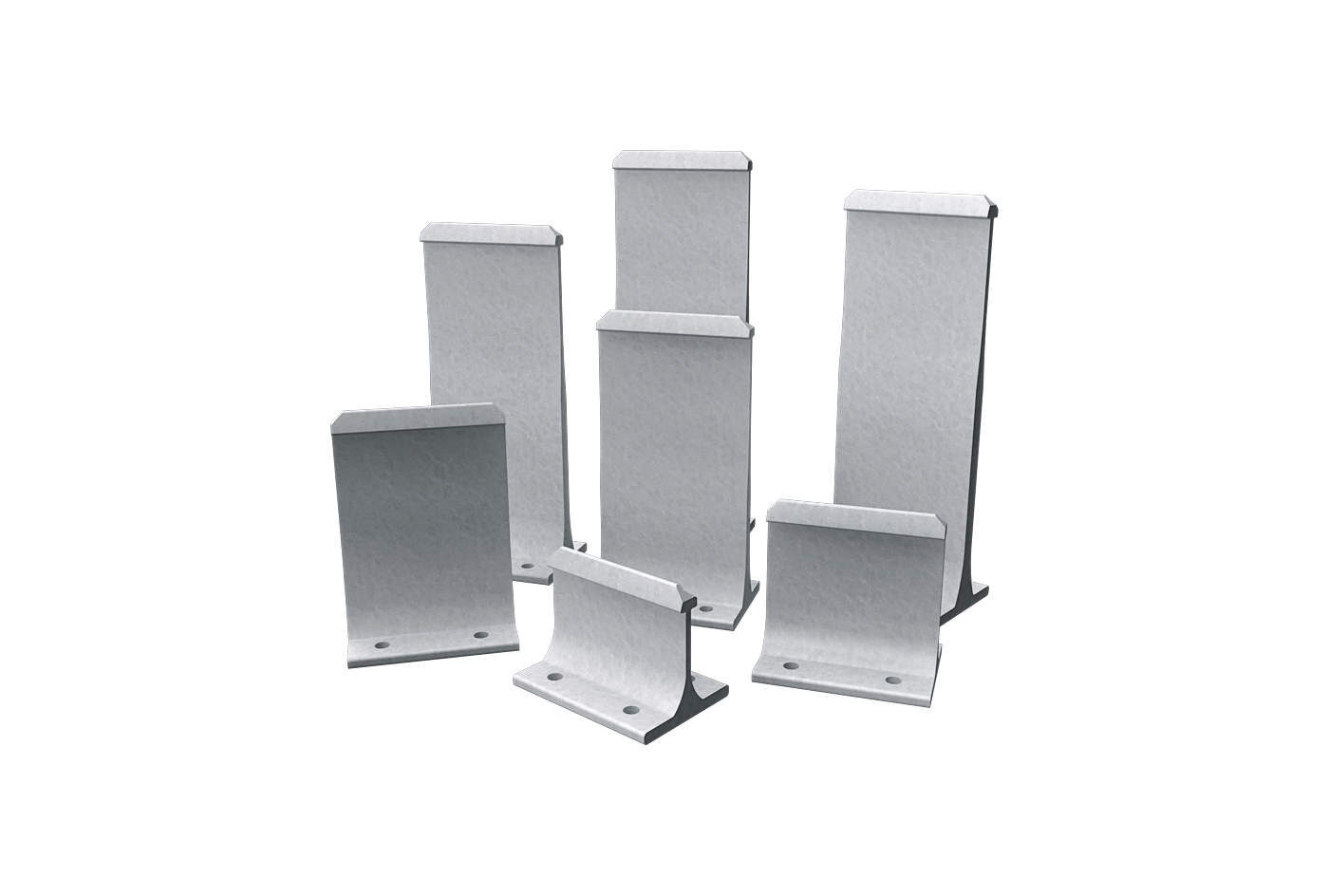

BRACKET SYSTEMS FOR STANDING SEAM FAÇADES
High load-bearing capacity of the façade with brackets from BEMO made of aluminium or GFRP
The free sliding movement of the standing seam sheets during thermal linear expansion is one of the most important properties of a BEMO standing seam façade.
For this purpose, the façade needs halters that ensure optimum load-bearing capacity. BEMO aluminium brackets are specially designed for optimum sliding behaviour due to their rounded corners. BEMO thermal caps TK 5 and TK 15 attached to the foot of the bracket provide thermal decoupling
BRACKET IN FIBREGLASS-REINFORCED PLASTIC (GFRP)
For a thermal bridge-free structure that sustainably reduces energy costs
As an alternative to our aluminium brackets, gfrp brackets are suitable for a thermal bridge-free construction. Our gfrp brackets are free of highly heat-conductive components and thus completely free of thermal bridges.
As a result, the insulation thickness is significantly reduced while the effective u-value remains the same. They are distinguished by high rigidity and very good load-bearing capacity.
360° SERVICE
Turning challenges into innovative projects with enthusiasm. That is what sets us apart.
Bemo is passion and joy – especially in meeting any challenges with new ideas and thereby implementing individual projects. We turn every challenge into a unique approach. You can feel the passion of our experts right from the start: from the conception phase on, our experienced project consultants support your projects and pave the way for unique standing seam façades.
We are also the experts at your side in the planning phase and take responsibility for any system-relevant questions. For us, 360 ° service not only means taking responsibility, but also guaranteeing the success of the project. Our extensive network of cooperation partners helps us to act globally, and your projects benefit from it, especially in material provision and delivery logistics. We can always count on our long-term partners.
CURVED FAÇADES WITH CURVED STANDING SEAM PANELS
Precise fit of the standing seam sheets by BEMO directly on the structure
Curved standing seam panels from BEMO can be used to create smooth building shapes. For a curved façade in perfectly fitting design, we shape the BEMO standing seam sheets into a curved form – often also with our mobile production facilities on site, not only to save freight costs, but also to be able to align the sheets directly on the object.
For a curved standing seam façade, the curvature can be either concave, convex or concave-convex. Curving down to the smallest radii is possible. Depending on the material and profile, minimum radii of less than 800 mm are feasible for us.
All BEMO profile variants can be used for subsequent curving. This ensures that even with a curved façade, complete functional safety of the products is guaranteed. Tolerance compensation is also possible using BEMO substructure systems BEMO-Dome or BEMO-Flex. We also recommend a 3D survey of the entire building shape as well as the use of the BEMO execution design in 3D.
THE BEMO-DOME FLEXIBLE STANDING SEAM FAÇADE SUBSTRUCTURE
As rainscreen substructures and for various building shapes usable
For cylindrical or over 2-axis curved building shapes the BEMO-DOME substructure builds the most suitable solution as it can be used highly flexibly. The cladding options are many: from metallic trapezoidal and corrugated profiles to conical or free-form BEMO-MONRO panels. What is special about the system is its good load-bearing capacity, its perfect tolerance compensation and its simple on-site installation. Moreover, it is also ideal as a rainscreen substructure.
As a rear-ventilated wall construction or unventilated the BEMO-DOME façade substructure can meet all regulations- also as a rainscreen. For a perfect result, the use of a 3-D scan for the on-site survey and execution design in 3-D for this substructure system is recommended.
The standardised system always consists of the same components. It only varies between round and square tubes and different brackets, depending on the design. The façade substructure can be fastened on the most diverse substrates and offers tolerance compensation of +/- 45 mm.
INFORMATION
BRAND
Bemo
PRODUCT TYPE
Facade Panel
PENETRATION
Free fastening for long-lasting stability
STANDING SEAM PROFILES WIDTH
From 100mm to 800mm
APPROVAL
Approval Z-14.1-182 / Z-14.1-640 / Fm-approvals / Astm / Bba-certificate / Avis Technique / Gos
THERMAL BRIDGE-FREE BRACKETS OPTIMISE
Thermal insulation with low system construction
PRODUCTION
Made in Germany
OPTIONS
Wide range of design options
PROFILE LENGTHS
> 100 meters can be realized
TOLERANCE
+/- 45mm
SEAM FAÇADES
In terms of building physics and acoustics
COLOUR SYSTEMS
Bemo-flon, pvdf, hdp, polyester & on customer request
FEATURES
-Durable -Recyclable -Variety Of Shapes -Variety Of Materials -Variety Of Colors -Low Maintenance -Any hole pattern possible -Are slid onto bemo brackets -Great freedom of design and layout -Penetration-free fastening -Thermally decoupled due to the thermal caps
MATERIAL
-Aluminum -Steel -Stainless Steel -Copper -Titanium Zinc
SURFACES
-Coated -Natural -Natural-stucco -Brushed
SLIDING MOVEMENT
Good sliding movement of the standing seam tracks on the bracket
CONTINUOUS PANELS
> 20 m possible
PROTECTION
Ideal Sun Protection
CURVES
Curves can be concave, convex or concave-convex down to the smallest radii
DOWNLOADS
↓ Double Halter Aluminium
↓ GFK Thermal Halter
↓ Halter Aluminium
↓ Rotation Halter Aluminium
↓ Standing seam profile
↓ Design variety
CAPACITY
High load-bearing capacity
BRIDGES
Completely free of thermal bridges
ASSEMBLE
Easy on-site assembly thanks to bemo assembly planning
ACCURACY
High accuracy of fit through 3d measurement and planning
OPTIMAL SUBSTRUCTURE
Optimal substructure solution for rounded roof and facade surfaces
VARIABLE & ECONOMICAL BEMO SUBSTRUCTURE SYSTEMS
For optimum tolerance compensation for every building shape standing seam façades meet the highest demands in terms of building physics and acoustics
THREE PROVEN PROFILE VARIANT
N 50
The profile with 50 mm seam height and variable profile widths. It is often used for smaller roof areas such as monopitch roofs and residential buildings, as it has a particularly subtle and aesthetic appearance. The façade profile is also in demand for industrial roofs without high snow loads.
N 65
The profile with 65 mm seam height and variable profile widths. Due to the seam height of the façade profile, it is particularly suitable for flat sloping roofs. It also has a very good load-bearing capacity and therefore good structural values.
VF 65
The profile with 65 mm seam height and variable profile widths. This façade profile is ideal for use on rigid insulation and wooden boarding, where it is laid over the entire surface. The geometry of the bracket foot accommodates special mouldings without imprinting.
