PLATE GIRDER BRIDGE (JSB)
PLATE GIRDER BRIDGE (JSB)

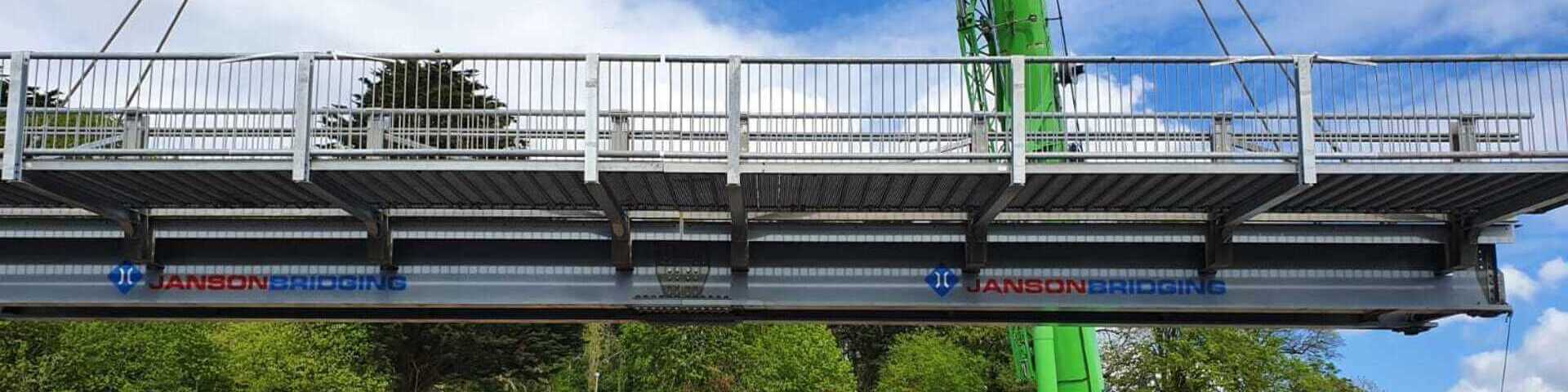

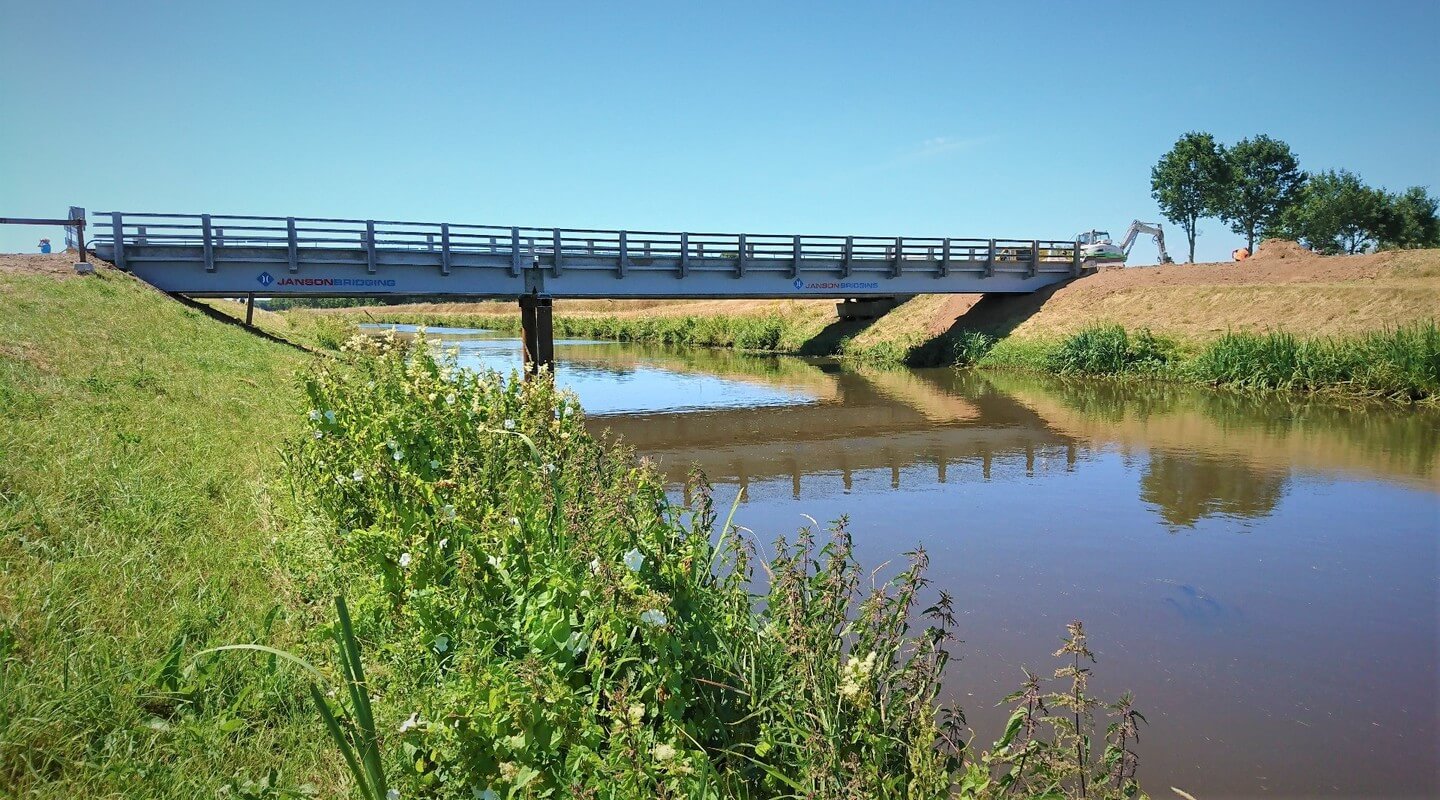

Janson’s plate girder bridges (JSB) were designed for temporary applications, especially in areas with heavy traffic density and where a span of up to 43.5 metres is required.

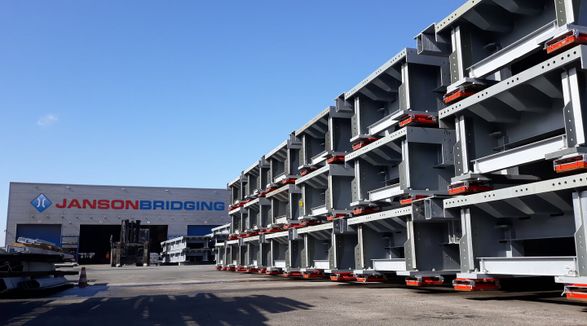

The bridge sections are transported to the construction site as one piece as possible and subsequently installed and assembled into a complete bridge in minimal building time.
The sections can be coupled both in the length and transversally and therefore offer an enormous variety of span options and passage widths. The sections are completely produced from high-quality steel and are equipped with steel bridge decks, which is reinforced with troughs.
Janson panel bridges were designed with any eye for assembly with the use of relatively small tools and small cranes.
It is also possible to set up this bridge system horizontally in places where a crane has no excess at all. The bridge sections can be pre-assembled as separate units or can be transported partly pre-assembled to the destination of the bridge.
INFORMATION
BRABD
Janson Bridging
PRODUCT TYPE
Bridge
PRODUCTION
Made In Netherlands
GUARDRAIL
Treffic, Pedestrian
TYPE
JSB
EXTERNAL FOOTPATH
1, 1½ & 2m width
FEATURES
- Option of hinged coupling
- Primary and secondary lanes
- For general and heavy traffic
- Can be coupled in both width and length
DECK HEIGHT INCLUDING SUPPORT
- JSB-1 : 1.18m
- JSB-2 & JSB-3 : 1.21m
SECTION LENGTH
- JSB-1 : 6, 9, 12 and 24m
- JSB-2 & JSB-3 : 10½, 13½, 19½m
SECTION WIDTH
- JSB-1 : 3½m
- JSB-2 : 2½m
- JSB-3 : 3½m
BRIDGE LENGTH
Up to 43.5 metres
TOPPING
Stone-chippings
MAXIMUM FREE SPAN
- JSB-1 : 30m (Eurocode)
- JSB-2 : 37½m (Eurocode)
- JSB-3 : 43½m (Eurocode)
