BEAM BRIDGE (JSK-JBB)
BEAM BRIDGE (JSK-JBB)
Janson’s beam bridges (JSK-JBB) were developed for creating a relatively short free span of up to a maximum 21 metres.
The beam bridge is often used as a temporary or semi-permanent bridge for public transportation or construction work. This type of bridge has modular elements with standard lengths. The width can vary by combining multiple sections.

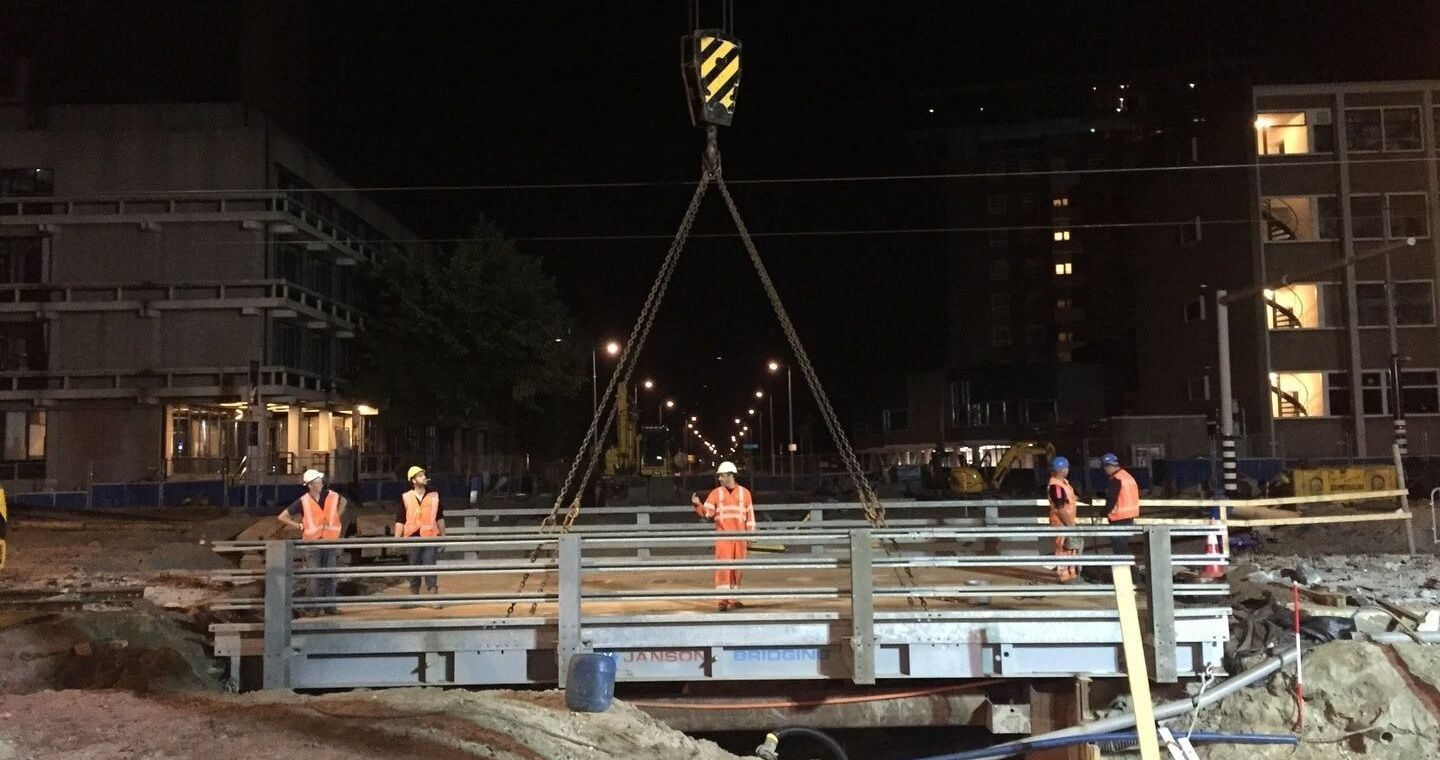

The beam bridge can be swiftly installed thanks to the efficient coupling system and the integrated crane hooks. Solutions are also possible with separate lanes, a bicycle path and the installation of a guardrail.
Spans greater than 21 metres can be realised by using intermediate supports. The Janson beam bridge is the ideal system for installing on an existing bridge when the capacity of the existing bridge is insufficient (or temporarily insufficient).
This bridge system can also be easily applied in places where traffic must be intervened temporarily. Janson can also deliver ramps from stock.
INFORMATION
BRABD
Janson Bridging
PRODUCT TYPE
Bridge
MODEL
-JSK 300 -JSK 450
FEATURES
- Bridge length up to 21 metres
- Calculations possible based on CC1 and CC2
- In the width can be coupled in multiple ways
- Integrated crane hooks
- Sections can be delivered completely pre-assembled
SECTION WIDTH
1½ and 2.1m
TOPPING
Stone-chippings
MAXIMUM FREE SPAN
-JSK 300 : 9m -JSK 450 : 21 m
TYPE
JSK-JBB
PRODUCTION
Made In Netherlands
SECTION LENGTH
- JSK 300 : 9m
- JSK 450 : 10½ , 13½, 15.7 and 21m
EXTERNAL FOOTPATH
Possible
RAMPS
Possible
GUARDRAIL
-Traffic -Pedestrian
