PEDESTRIAN BRIDGE (JTB-P)
PEDESTRIAN BRIDGE (JTB-P)

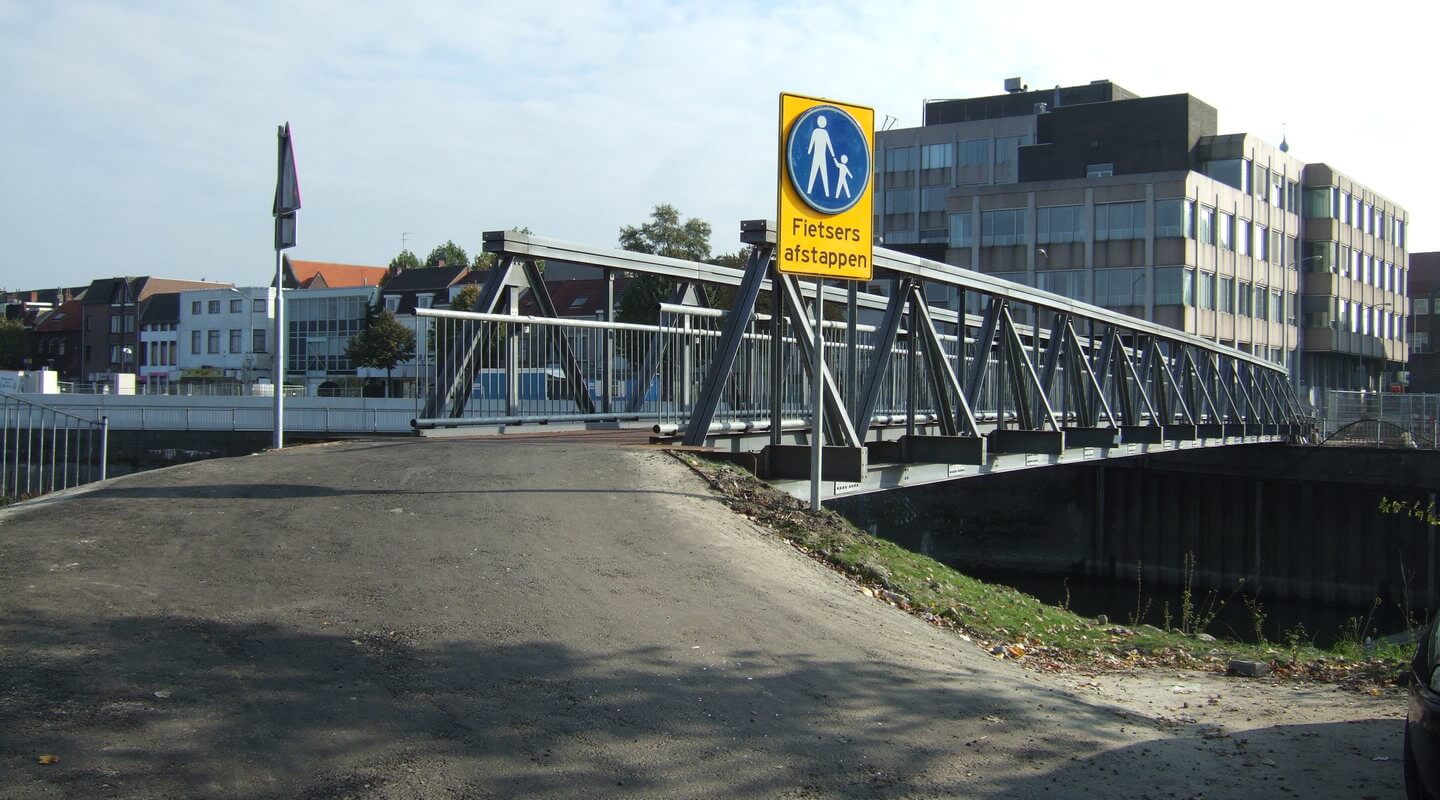

Within the range of Janson light traffic bridges, we also have the de JTB-P, in addition to the JPB-P. This bridge too is installed for light traffic, especially for bicycle and pedestrian loads.
The pedestrian-truss bridge is a modular system in which the length is built up from standard exchangeable componentsX in the modular form of 4.0 meter.
With the pedestrian-truss bridge, spans up to 48 metres can be achieved. Just as with the JTB-P, this system too can be transported to the workplace and subsequently installed and assembled into a complete bridge in minimum building time.
INFORMATION
BRABD
Janson Bridging
PRODUCT TYPE
Bridge
PRODUCTION
Made In Netherlands
TYPE
JTB-P
SUPPORT
Deck Height Including Support : 0.82m
FEATURES
- Bridge length up to 48 metres
- For cyclists and pedestrians
- Minimal building time
- Flexible solution
TOPPING
Red stone-chippings
MAXIMUM FREE SPAN
48 m
USE
This bridge too is installed for light traffic, especially for bicycle and pedestrian loads.
GUARDRAIL
Pedestrian
MODULAR FIELD LENGTH
4 m
PROPERTY
Installed for light traffic, especially for bicycle and pedestrian loads.
ROAD SURFACE WIDTH
2, 2½, 3m
PANEL HEIGHT
Panel Height Above Walking Deck : 2,75m
