MONOSPACE® DX MACHINE ROOM-LESS LIFT
MONOSPACE® DX MACHINE ROOM-LESS LIFT
KONE MonoSpace® DX is a machine room-less lift for mid-rise and low-rise residential and commercial buildings. With built-in connectivity, improved people flow, and an inspiring passenger experience, it redefines what a lift can be.
Powered by the compact, energy-efficient kone ecodisc® hoisting motor, the kone monospace® dx saves valuable space in your building by completely removing the need for a machine room.
KEY FEATURES
BUILT-IN CONNECTIVITY
Future-proof your building with a lift that offers new digital services and solutions enabled by cloud connectivity and based on kone apis.
OPTIMISED PRODUCTIVITY DURING CONSTRUCTION
Finish your building project more quickly with construction time use solutions that safely speed up the flow of people and materials on site.
CARBON NEUTRALITY
Take a step closer to your climate targets with our option to compensate for the remaining embodied CO2 emissions of your MonoSpace® DX lift.
A REDEFINED LIFT EXPERIENCE
Create a memorable and inspiring lift experience for tenants and visitors with our new material, lighting, and signalisation options.
BEST-IN-CLASS ECO-EFFICIENCY
Save energy and cut your building’s carbon footprint with a machine room-less lift that offers eco-efficient hoisting, high-efficiency regenerative drive, long-lasting led lighting, and energy-saving standby operation.
COMPLIANCE YOU CAN RELY ON
With the kone monospace ® dx you can rest assured that your building’s lifts are compliant with all relevant codes and regulations, including accessibility, vandal-resistance, and operation during a fire.
INFORMATION
BUILD GREENER
Our lifts use sustainable materials and include a wide range of energy-efficiency enhancements, helping you to obtain green building certifications such as leed and breeam.
BRAND
Kone
PRODUCTION
Made in UK
PRODUCT TYPE
Lift
COLLECTION
MonoSpace
DOWNLOADS (KONE MONOSPACE 300 DX)
↓ KONE MonoSpace DX brochure
↓ SKONE MonoSpace DX 300 Materials and accessories
DOWNLOADS (KONE MONOSPACE 500 DX)
↓ KONE MonoSpace DX brochure
↓ KONE Signalisation factsheet
↓ KKONE Materials and accessories brochure
DOWNLOADS (KONE MONOSPACE 700 DX)
↓ KONE MonoSpace DX brochure
↓ KONE Signalisation factsheet
↓ KONE Materials and accessories brochure
BUILD FASTER
Our construction time use solutions increase productivity and help you complete your building project more quickly by helping people and materials to move around the site safely and efficiently – meaning your development can start generating a profit sooner.
BUILD WITH A SMALLER FOOTPRINT
Our lifts are already the most energy-efficient on the market, and now you have the opportunity to offset the remaining CO2 emissions generated by any KONE MonoSpace ® 500 DX and 700 DX lifts that you purchase.
FIND A KONE MONOSPACE DX LIFT FOR LOW-RISE BUILDINGS OR HIGH-RISE BUILDINGS.
| SOLUTION | DESCRIPTION | MACHINE ROOM | MAX. TRAVEL | MAX. SPEED | MAX. LOAD / PERSONS | MAX. GROUP SIZE |
|---|---|---|---|---|---|---|
| Kone monospace 300 dx | Cost-efficient passenger lift for low-rise residential buildings | No | 18 m or 5 floors | 1.0 m/s | 1.000 kg/up to 13 persons | 2 |
| Kone monospace 500 dx | A versatile commercial or residential passenger lift for low-rise buildings and mid-rise buildings | No | 75 m or 24 floors | 1.75 m/s | 1.150 kg/up to 15 persons | 4 |
| Kone monospace 700 dx | A flexible commercial lift for buildings with demanding people-flow requirements. | No | 90 m or 36 floors | 3.0 m/s | 2.500 kg/up to 33 persons | 6 |
DETAIL
KONE MONOSPACE 700 DX MACHINE ROOM-LESS LIFT
A commercial lift for the flexibility you need in buildings with demanding people-flow requirements.
- Flexible Freedom : Create a truly unique user experience and future-proof your building with this connected lift solution for high-end residential and commercial buildings. The KONE MonoSpace 700 offers a huge range of materials, signalisation, and control systems to choose from.
KONE MONOSPACE 500 DX MACHINE ROOM-LESS LIFT
An impressive machine room-less lift that enhances residential and commercial buildings
- Comfort and convenience : Give residents and tenants superb ride comfort in a reliable, connected, and eco-efficient lift with a broad range of interior options to choose from.
KONE MONOSPACE 300 DX MACHINE ROOM-LESS LIFT
A reliable and cost efficient lift for low-rise buildings in one easy-to-specify package.
- Simple excellence : Low rise doesn’t have to mean low expectations. This highly cost-effective lift solution for low-rise residential buildings is durable, easy to maintain, and available in ten attractive car designs, all with clear, easy-to-use signalisation.

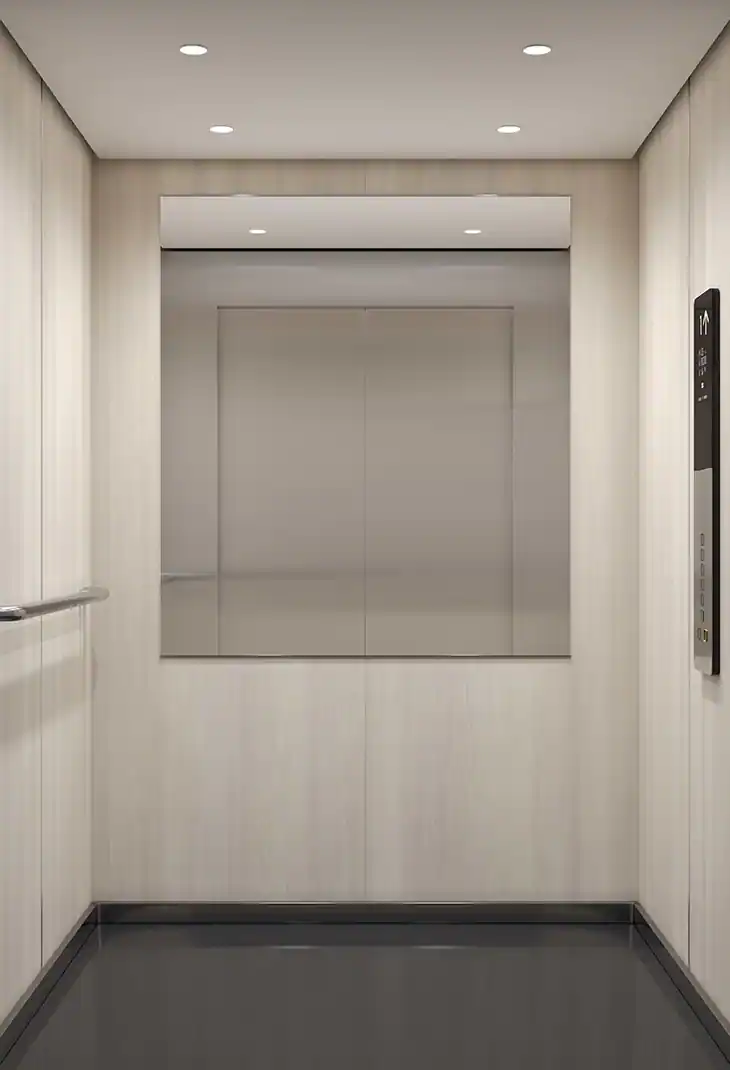

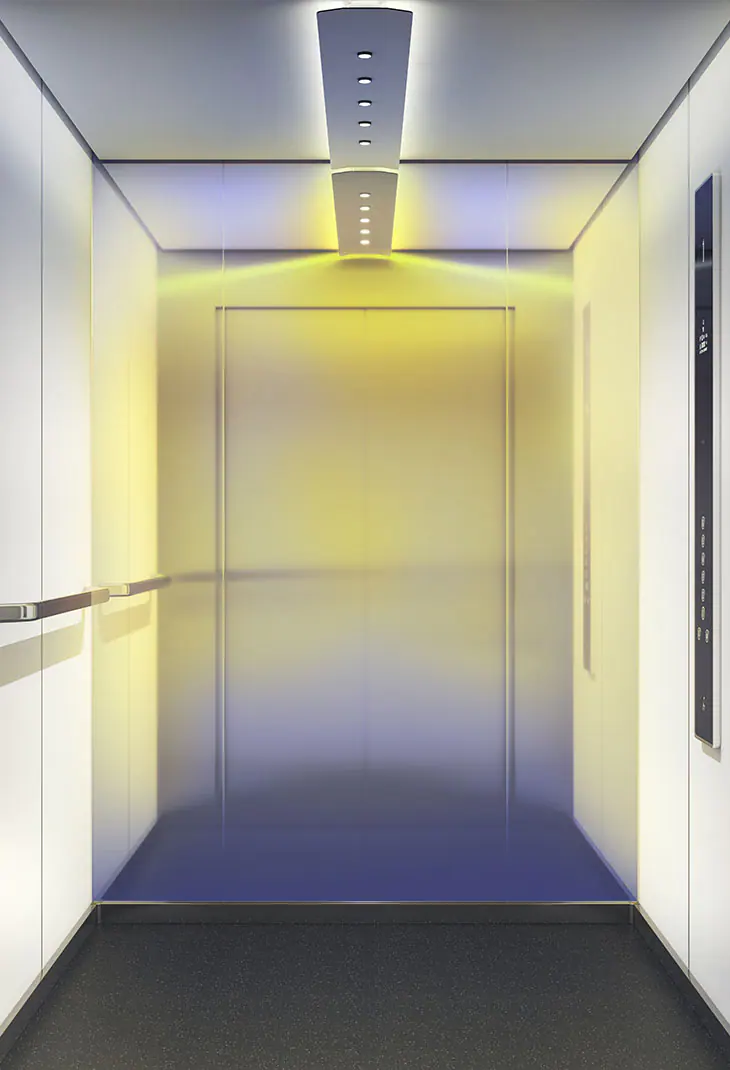

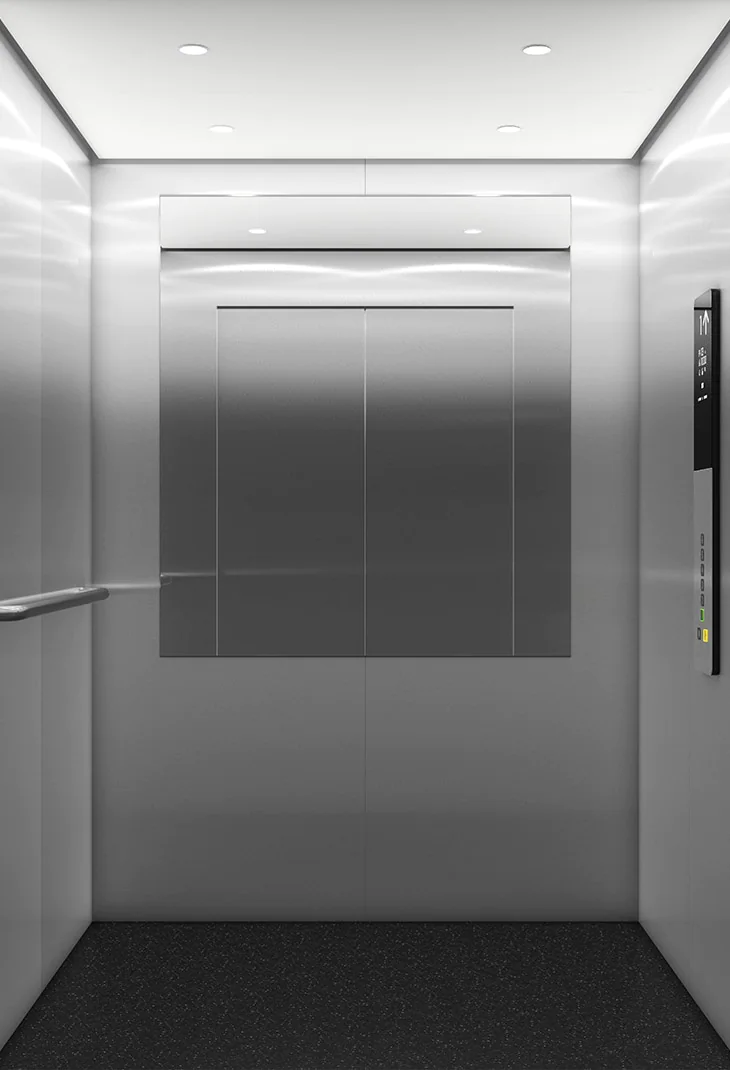

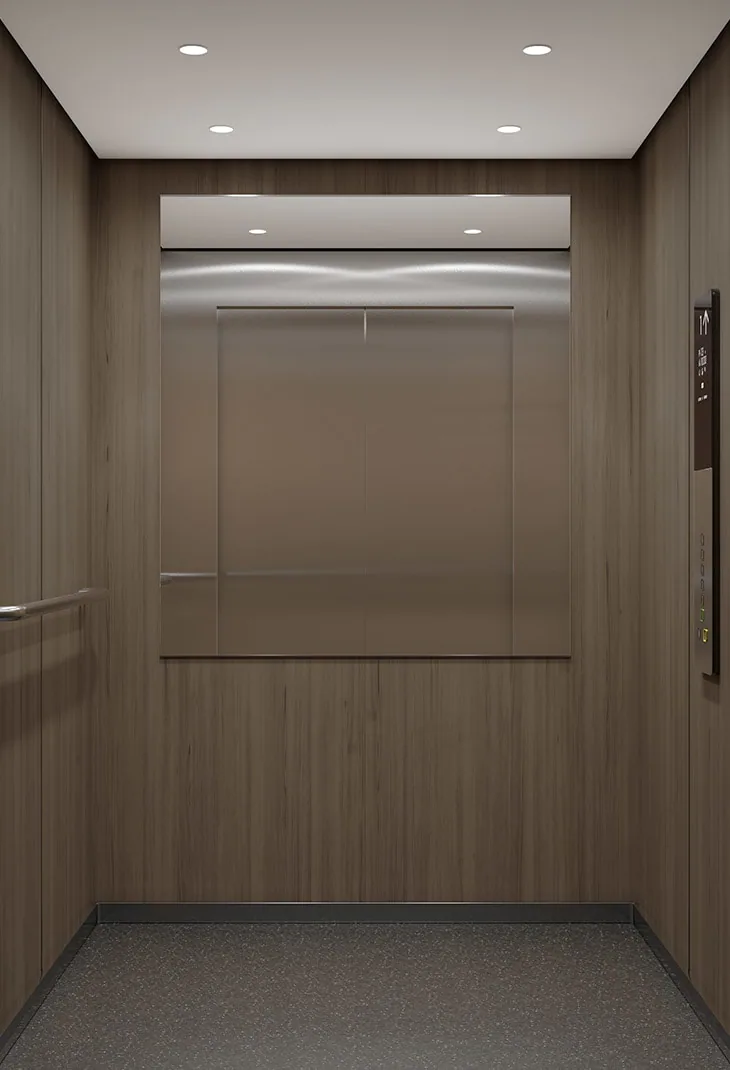

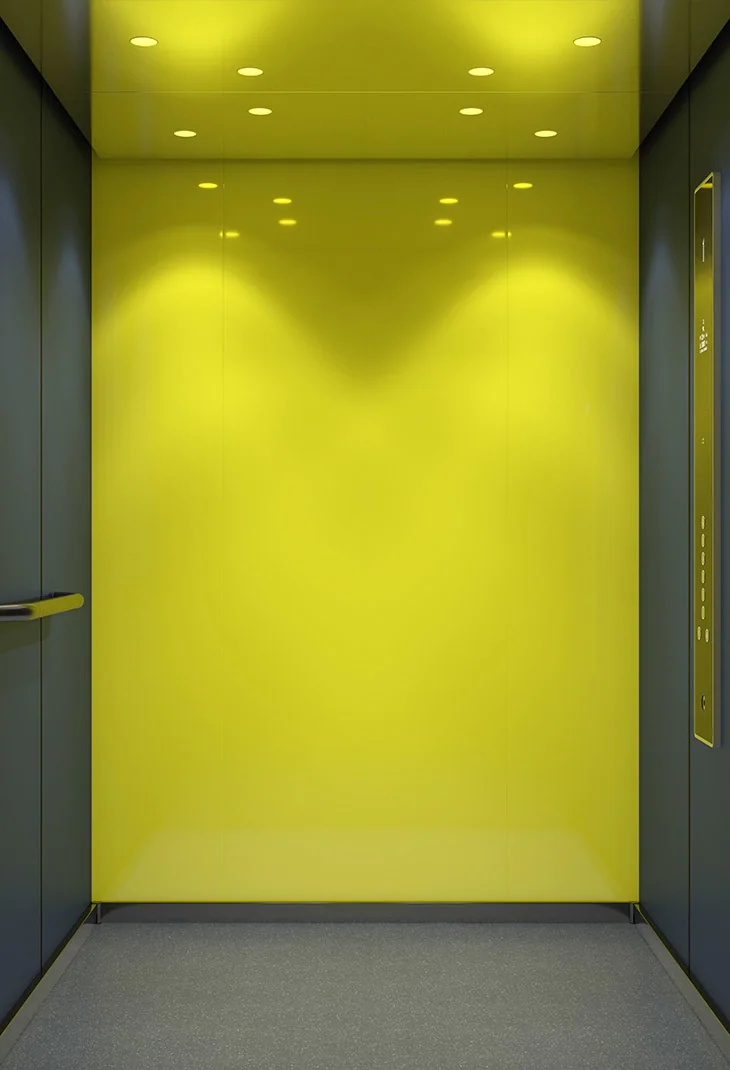

GALLERY
