KONE MOTALA™ lift
KONE MOTALA™ LIFT
A solution for making all premises accessible. The KONE Motala lift improves accessibility in residential and public buildings. Machine room-less lift for new and existing buildings
INFORMATION
DOWNLOADS
↓ KONE Monospace DX 500 EPD
↓ KONE Monospace DX 700 EPD
↓ KONE Care® maintenance
↓ KONE Online and Mobile
↓ KONE lift modernisation handbook
MAX. PERSONS
Up to 5
MAX. LOAD
500 kg
PRODUCT TYPE
Lift
GROUP
1
SAFE AND EASY TO USE
The heart of the KONE Motala 2000 platform lift is a patented guided chain drive system. The chain is enclosed in a track along its entire length, so it can never derail. The inverter drive ensures smooth starting and stopping. Thanks to the large “hold to run” pushbuttons, the KONE Motala 2000 is easy to use
FEATURES
- Self-supporting structure
- Large platform size within compact shaft dimensions
- Easy to install in stairwells without major structural alterations
- Only requires a single phase supply
- Several door choices, including half-height doors and fire-rating
- Control panel with large, easy-to-use buttons and emergency stop
- Low power consumption, small fuse requirements result in economical use
SPEED
0.15 m/s
MAX. TRAVEL
13 m
MAXIMUM RISE
13 cm
USE
Outdoor
DETAIL
- Factory paintwork, RAL colou
- Glazed shaft
- Automatic swing doors
- Folding chair
- Handrail (standard)
- Braille signalisation (standard)
- lectrical emergency lowering (standard)
- Audible announcements (voice synthesiser)
- Extra wide doors (1000 mm)
- Stainless steel and/or wooden door handles
- KONE Motala Exclusive interior materials
- Landing floor buttons away from the platform lift for easier use by people in wheelchairs

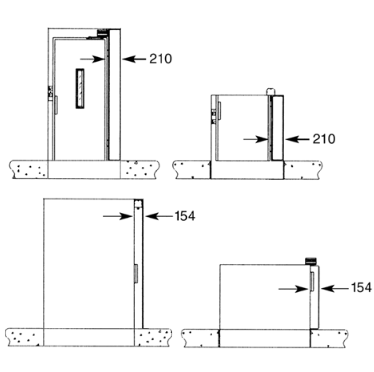

TECHNICAL DRAWINGS
KEY FEATURES AND DIMENSIONS
| (MM) | MOTALA 2000 HOM | MOTALA 2000 | MOTALA 2000 XL |
|---|---|---|---|
| Shaft size | 1150 x 950 | 1150 x 1560 | 1150 x 1760 |
| Platform size | 1020 x 870 | 1020 x 1480 | 1020 x 1680 |
| Shaft size | 1250 x 950 | 1250 x 1560 | 1250 x 1760 |
| Platform size | 1120 x 870 | 1120 x 1480 | 1120 x 1680 |
| Shaft size | 1350 x 950 | 1350 x 1560 | 1350 x 1760 |
| Platform size | 1220 x 870 | 1220 x 1480 | 1220 x 1680 |
