Nola Smidesstaket Modular Fencing System
SMIDESSTAKET MODULAR FENCING SYSTEM
SMIDESSTAKET MODULAR FENCING SYSTEM
Design By Lars Gunnars

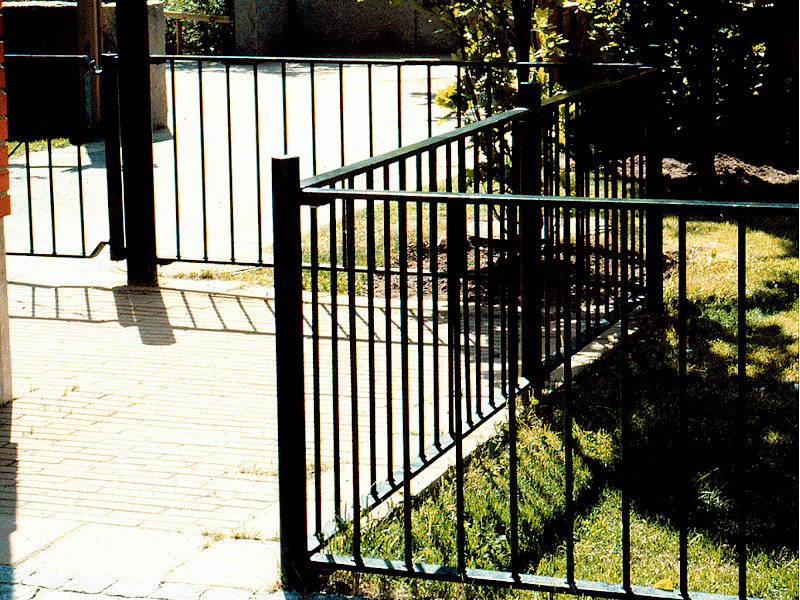

This classic steel fence resembles traditional forged steel, but it is made in pre-fabricated sections that are quick and easy to install.
The metal is protected by a rust-resistant coating and a durable layer of polyurethane paint. The sections can be secured between ground-mounted posts. The timeless appeal of this simple style will seem contemporary for years to come.
INFORMATION
APPEND TO PRODUCT NUMBER
- M för In-ground.
- 90 = 90 cm total height above ground
- 110 = 110 cm total height above ground
BRAND
Nola
PRODUCT TYPE
Fencing System
PRODUCTION
Made in Sweden
VARIANTS
Available in three standard lengths: 90 cm, 120 cm and 238 cm and in a choice of two heights.
ASSEMBLY AND PLACEMENT
-Delivered in sections for assembly on site with M10 bolts. -In-ground -Cast in ground.
INDIVIDUAL DIMENSIONS
-The standard heights above ground are 90 cm and 110 cm -The fence posts measure 60 mm in diameter with a depth of 3 mm -The gateposts measure 60 mm or 120 mm in diameter with a depth of 3 mm
STANDARD COLOR
RAL 9005
DIMENSIONS
- Length : c-c 90 cm, 120 cm, 180 cm alt 238 cm
- Height : 90 cm alt 110 cm
- Ø : 6 cm (mellan och slutstolpe) 120 cm grindstolpe
- Standard lengths : C-C 90 cm / C-C 120 cm / C-C 238 cm
- Standard heights : 80 cm / 100 cm
- Height above ground after installation : 90 cm and 110 cm
MAINTENANCE
-Electro Galvanized and Powder Coated Steel -Products that are electro-galvanized and powder-coated can be touch-up painted with alkyd paint.
CHARACTER
A flexible steel fence that resembles traditional metal railing. Constructed in pre-fabricated sections, the fence is easy to install.
MATERIALS AND SURFACE TREATMENTS
- The fence is made in forged steel painted with TecTalis® corrosion protection and polyester powder coating in black RAL 9005.
- TecTalis® rostskydd.
- Steel : Nola uses high-quality steel of good strength in our products. Steel rusts if left untreated and must therefore be surface treated. For this we use two main methods for surface treatment of steel parts; electrogalvanizing and powder coating as well as hot-dip galvanizing.
- Powder coating : Powder coating is a coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint, powder coating is usually applied electrostatically and then cured under heat or with ultraviolet light. The result is an even, hard-wearing coloured surface with the desired gloss level.
