Acquabella Tempo Arabba Shower Trays
TEMPO ARABBA SHOWER TRAYS
TEMPO ARABBA SHOWER TRAYS

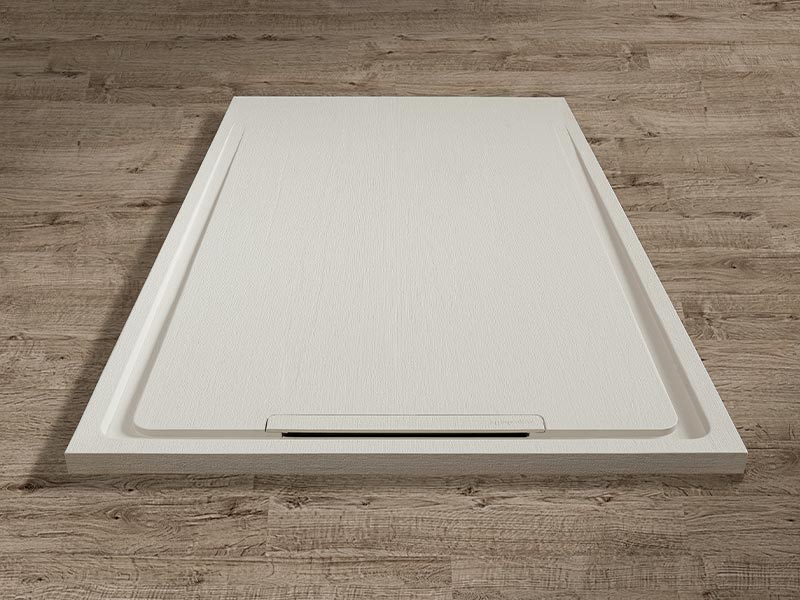

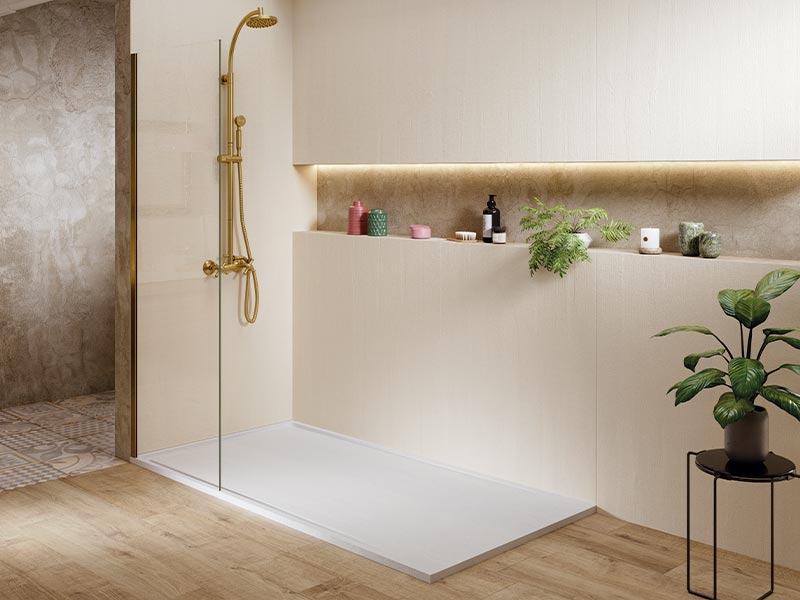

Discover Acquabella’s new Tempo Arabba made-to-measure shower tray. The Tempo shower tray is designed to intensify our experience with texture in the bathroom.
The design of this model changes the natural morphology of the shower tray to allow the water to slide to the sides and gently run around its perimeter, to then elegantly flow down through the subtle and delicate grate.

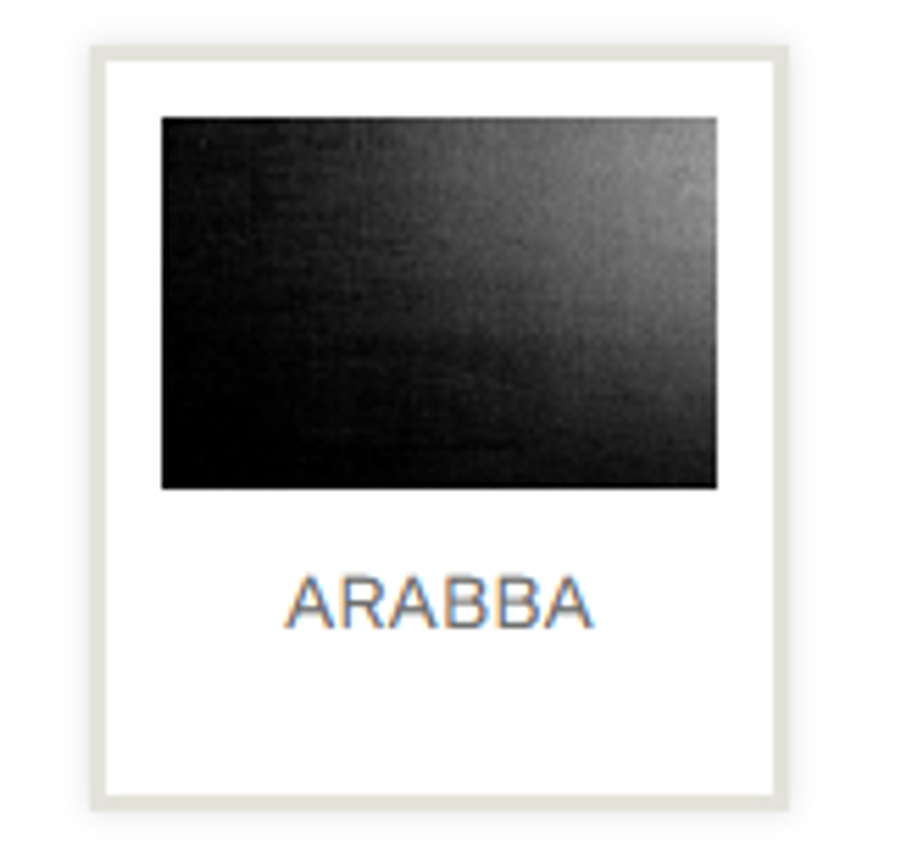

The Arabba texture simulates natural hand-woven fibres with the same care that Acquabella employs when making its products.
FEATURES
UNE- EN 16165:2022 ANNEX A
Antislip Class B
XP P 05-010
NF French Normative PN 18
ISO 22196:2011
Antibacterial cerificate Class 1
RESISTANT
Resistant to thermal shock
POLYESTER
Hydrolisis resistant. 0% ortoftal-polyester
CUT
Easy to cut
MATERIAL
Safe cut. Material without silica
IMPACT
Impact resistant
UNE-EN 14527:2016 + A1:2019
Class 1
INFROMATION
BRAND
Acquabella
DRAIN
SI
PRODUCT TYPE
Shower Tray
ANTI-SLIP
- UNE 41901 : 2017 EX - CLASS 3
- DIN 51097 : 1992 - CLASS C
- FRENCH NORMATIVE XP P 05-010 - PN 24
MINIMUM FORMAT
700X1000 mm
MAXIMUM FORMAT
2000X100 mm
HEIGHT
32 mm
SIZES

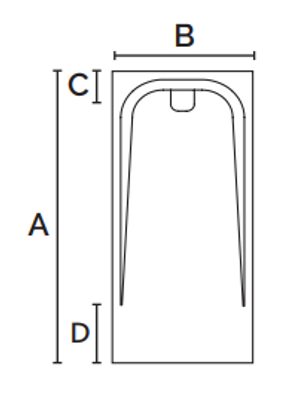

| A | B | C | D |
|---|---|---|---|
| 100 | 70/80/90 | 7.4 | 20 |
| 120 | 70/80/90/100 | 7.4 | 20 |
| 140 | 70/80/90/100 | 7.4 | 20 |
| 160 | 70/80/90/100 | 7.4 | 20 |
| 180 | 70/80/90/100 | 7.4 | 20 |
| 200 | 70/80/90/100 | 7.4 | 20 |

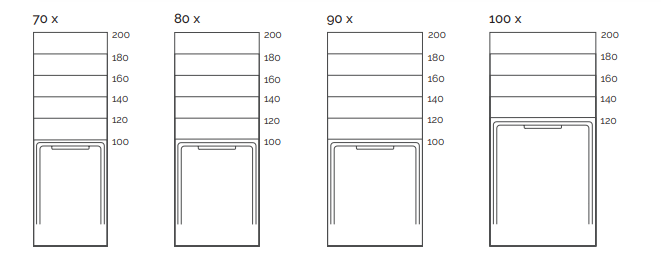

TECHNICAL DRAWINGS

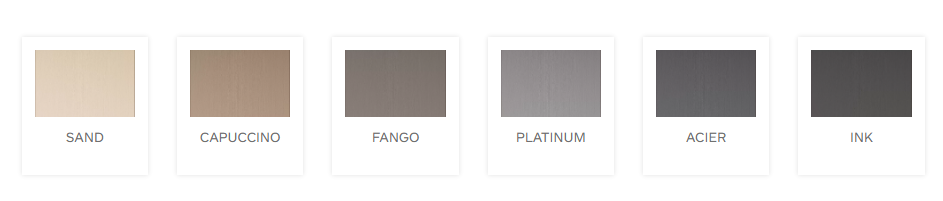

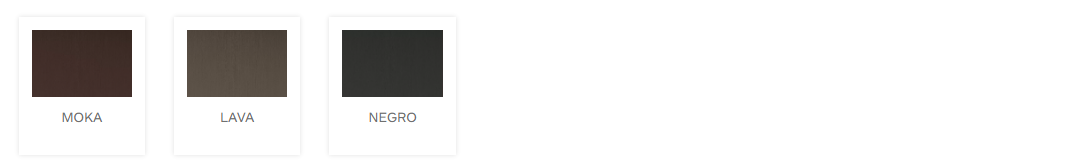

COLORS
TEXTURES
NATURALLY MADE COLORS

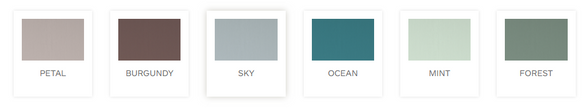

SEASON COLORS
STANDARD COLORS
