NEXT ELETTRA DOOR
NEXT ELETTRA DOOR
An opening towards the future.
For a smart home, Next Elettra is the hub created to develop over time, gradually integrating new functions. Progress strips away the excess. Gone is the small panel with display: only an LED illuminates the future.
DESIGN
PANELS
For every Dierre security door, quality is also guaranteed for the lining, as evidenced by the mark placed on the panel certifying the quality of materials and finishes.
If you choose the Sleek Next Elettra version, you can make it a one-piece or the star of your wall. Dierre guides you in choosing the ideal cladding, with an initial breakdown according to application and their materials. A panorama of proposals so vast that it can satisfy any desire, project and housing needs.
HANDLES
Next Elettra was born with standard “Dierre Design” handles, optionally “Amsterdam” and “Dallas.” Above the handle, the diopter, a light, which depending on the color illuminates the entrances.x
If you choose the Sleek Next Elettra version, you can make it a one-piece or the star of your wall. Dierre guides you in choosing the ideal cladding, with an initial breakdown according to application and their materials. A panorama of proposals so vast that it can satisfy any desire, project and housing needs.
SLEEK AND NEXT ELETTRA
Next Elettra is a state-of-the-art opening solution suitable for: Sleek, Synergy In and Synergy Out. If you want a minimalist, elegant, eye-catching style in your home, Sleek Next Elettra is the ultimate expression of Dierre’s design and technology inspired by aeronautical engineering.
Thanks to the Macron 5.0 concealed hinge, it opens at 180°, maintains high thermal and acoustic performance, with a double rebate, doubles the space reaching maximum dimensions in height up to 2850mm and in width up to 1200mm.
HIGHLIGHTS
BT-Bluetooth: BLE 4.2 device that can be configured via the new myDOOR app. AE-Electronic opening: motorized cylinder lock controlled by bluetooth device. SA-Anomaly sensors: active to report door status and provide basic diagnostics.
KF-Key-fob: the remote control with bluetooth module. DI-Diottro: the light that changes color, depending on the state of the door. Built-in AI-anti theft: through sensors, it signals burglary attempts. MB-MyBRIDGE: connection device to connect Next Elettra to the Internet.
information
BRAND
Dierre
PRODUCT TYPE
Door
PRODUCTION
Made in Italy
TECHNOLOGY AND SAFETY
The latest creation from a company that has always been forward-looking. Dierre imagines, anticipates, and creates “smart” security systems and doors, an expression of new plus points, indispensable today and in the years to come: thermal insulation, which means saving energy and protecting the environment; sound insulation; design; home automation.
OPENING SOLUTIONS

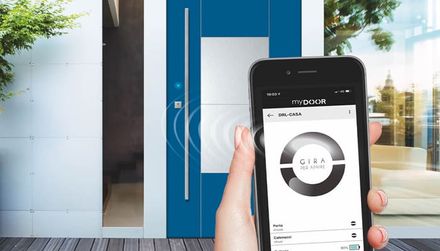

The myDoor App connects via Bluetooth with the lock, activating the opening and closing. The key-fob remote control has a single button for opening and closing. The Easy Key-fob snap-in key is integrated with the remote control. In addition, the following can be provided: biometric fingerprint reader; an external keyboard; and an internal Bluetooth button.
DESIGN
Next Elettra is eclectic. Technology meets minimalism. The badge disappears and a light, diopter, illuminates the entrances into the house.
The design becomes pure, essential. Next Elettra is an entry system that can be combined with the most distinguished models of the Prestige Line: you can choose from Sleek Next Elettra, Synergy In Next Elettra, Synergy Out Next Elettra.
technology and safety
GRIPS
Along the hinge side, with the leaf closed they insert in the corresponding cavities on the frame, so as to prevent unhinging. They can be dedicated chrome-plated fixed grips for the Sleek Next Elettra model or galvanized Shild grips for the Synergy In Next Elettra and Synergy Out Next Elettra models.
HOOK DEVIATORS

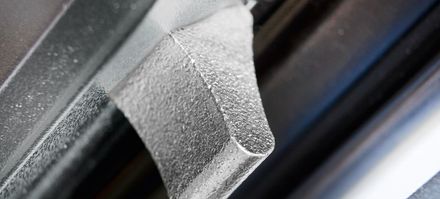

The highly innovative Hook hook deviators, controlled by the lock, fit into the frame and, by performing a 90-degree parallel rotation, anchor and securely lock the door.
LARGE SIZES
A large door. Thanks to its special structure and the solidity and technology of its hinges, it imposes its exclusive character in the Sleek Hibry version with dimensions from a minimum of 500×1900 mm, reaching 1200×2850 mm, while maintaining its burglar-proof, thermal and acoustic performance.
STRUCTURE W THE LEAF
Next Elettra: an advanced opening system, for Sleek, Synergy In, Synergy Out.
Made with the thickness of an ordinary security door, the revolutionary shell of these three models integrates and enhances the action of four different technical features-thermal insulation, acoustic insulation, resistance to break-in attempts-achieving absolute levels of excellence.
OPENING SOLUTIONS
MYRELAY
Do you want to open the gate with your keyfob or myDOOR app? As of today, automatic gates and electrically unlocked locks can also be managed via the App and remote control by installing the new myRELAY Bluetooth device. With myRELAY you can also enable other guest users to open connected doors.
MYBRIDG
The innovative myBRIDGE system allows connection with the Wi-Fi network, with the web App myDOOR always accessible to the network you are on:
access control; remote management of opening and closing; alarm indications; total management of Key-fob configuration or deactivation, anywhere. In addition, communicate with Dierre in real time to assess the condition of the door and provide for scheduled maintenance.
KEYS & KEYLESS
Key-fob, Remote Key-Fob and Easy Key-fob. The remote control, which can be configured with the myDOOR App, has a single button for opening and closing. LED signals its correct operation.
Easy Key-fob, inspired by the automotive industry, contains all the features of the Key-fob and integrated Easy Key snap key. In addition, more opening systems can be provided with Next Elettra. Biometric fingerprint reader; an external keypad, which allows the lock to be opened by entering a numeric code; an internal Bluetooth button.
MYDOOR
It is the App made by Dierre, available for iOS and Android. A simple and intuitive interface with purpose-built code, for iOS and Android.
The myDoor App connects via Bluetooth with the lock, activating the opening and closing. Manages and controls access, even remotely. All of Next Elettra’s keys can be configured using Bluetooth technology through the App.
D-UP CYLINDER
Patented manipulation-resistant high-security cylinder. Protected and controlled key duplication Modular Cylinder Anti-bumping cylinder mechanism Key blanks protected with rounded patented coupling 4 times more resistant to halfway breakage compared to a brass cylinder.
All Dierre cylinder locks with gear system come with a security system (trap) that locks the carriage and keeps the lock bolts locked in case an attack is made on the defender protecting the cylinder. In the event that the defender is pulled out and the cylinder is cracked, the system is irreversibly triggered, locking the deadbolts securely and preventing attackers from opening the lock.
