Bt Bioclimatic Pergola Pergospace
BIOCLIMATIC PERGOLA PERGOSPACE
BIOCLIMATIC PERGOLA PERGOSPACE

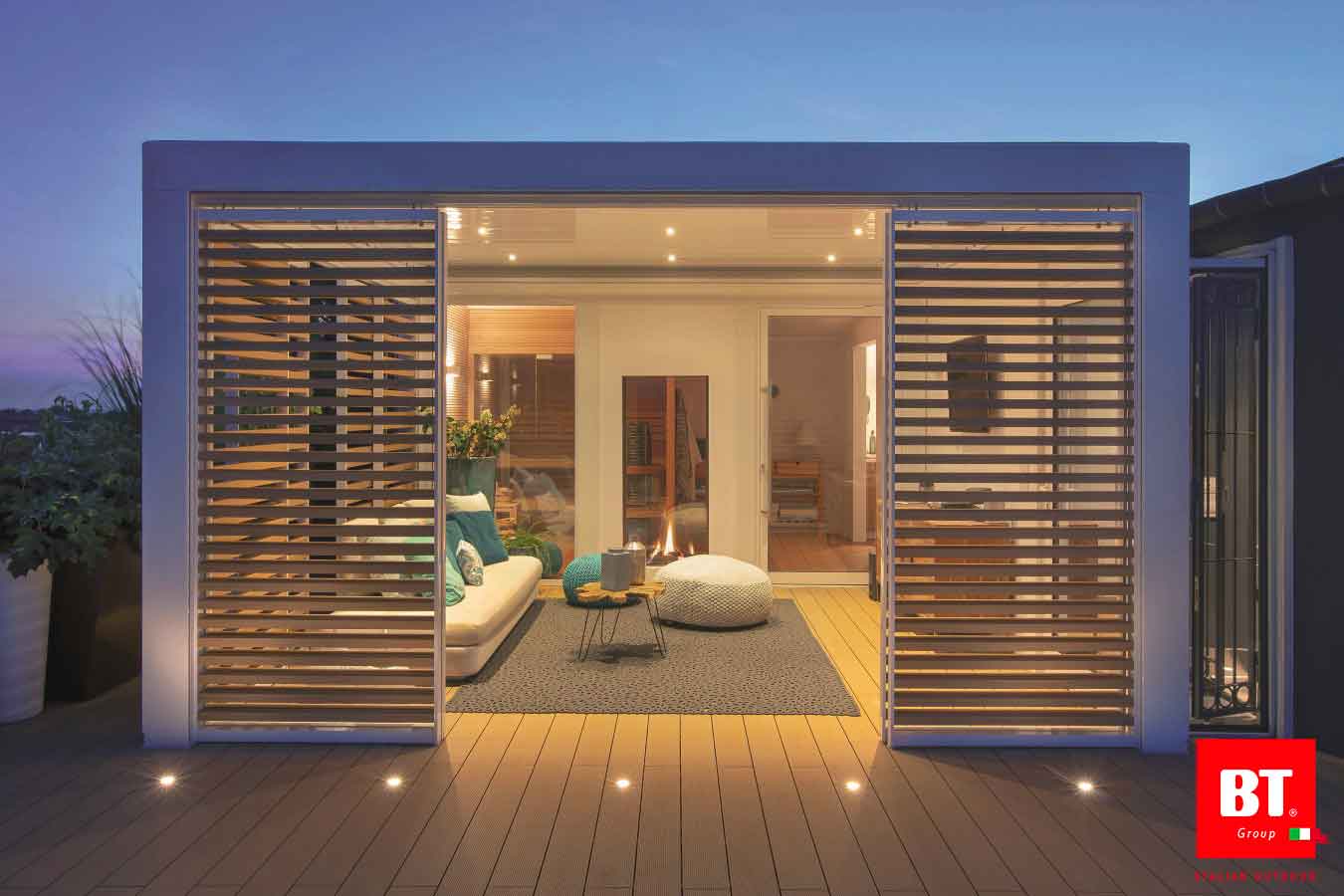

Bioclimatic self-supporting pergola with a refined and innovative design. Perimetrical water drain for the outflow of rain water in vertical poles. Integrated ZIP closings and all-glass system.
Roof made of aluminium blades L cm. 22 x 4 that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water.
The structure can offer a complete or a partial protection from sun, a perfect air-conditioning and an assured shelter from rain, becoming a real living space. Maximal dimensions of single form: L mt 4.50 x projection mt. 8.00 with 4/6 poles of cm. 20×20 only.
Working by linear motor low-tension. Availability of options as LED lights, generating synergies between the new and the existing environments, offering each time personalized and original solutions.
INFORMATION
BRAND
Bt
PRODUCTION
Made In Italy
MAXIMAL DIMENSIONS
Maximal dimensions of single form: L mt 4.50 x projection mt. 8.00 with 4/6 poles of cm. 20×20 only.
SIZE
- R640 : 450 x 800 cm.
- R641 : 450 x 800 cm.
- R642 : 450 x 790 cm.
VARIANTS
Self supporting structure
Wall installation water-drain
Blades perpendicular to the wall
Wall installation water-drain
Blades parallel to the wall
CERTIFICATIONS
WEIGHT
40Kg./Mq.
SUN AND RAIN PROTECTION
Specific product for sun and rain.
INTEGRATED LED LIGHTS
LED lights integrated into the structure.
BLADES ROTATION
140° blades rotation
SNOW RESISTANCE
INSULATE AND SOUNDPROOF BLADES
MECHANICAL STRENGTH FOR WIND RESISTANCE PERGOLAS
Pergolas marked with the indicated brand are products of particularly high quality and great mechanical resistance to wind stress
REGISTERED DESIGN
BT Group boasts a series of products with a registered and registered design. The presence of this logo, in the products shown, reinforces the exclusivity and uniqueness that distinguishes us in our sector.
COLORS
RAL FINE TEXTURE (FT) MATT SATIN COLORS TABLE
SPECIAL COLOURS
