PANEL garage doors

PANEL GARAGE DOORS

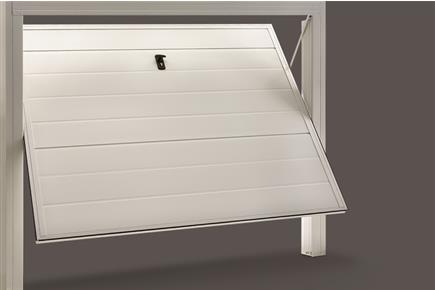

Is the new generation of steel overhead doors that use the same covering of the sectional overhead door Sector 2, always interpreter in the exclusive De Nardi style. Available in the four aesthetic rapresented, with two surface variants (smooth or embossed) and a numerous range of standard and special ral colors.

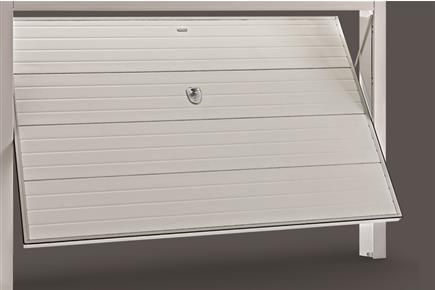

The model PANEL is composed of panels of 49,5 and 61,5 for 4,2 cm of thickness. Composed of two opposing sheets of sendzimir galvanized steel and stucco embossed, wood and smooth; male and female profiled with anti-pinch shape.

Inner and outer side with ribs for reinforcement longitudinal channels. Coupling without thermal bridge between internal and external sheet with insulating in polyurethane foam free from cfc injected with the foaming process continuously. With or without internal steel reinforcement.

The family of the insulated overhead door PANEL, is enriched with new versions, destined mainly for the residential shipbuilding market. They are made with the traditional pillar of 6-8-12 cm, are coated with an insulated panel of 2,5 cm of thickness. The metal parts are always painted with polyester powders for maximum resistance to atmospheric agents. The painting of the panel, outer and inner, is performed by spraying by means of a special anti-corrosion treatment. All ral colours of the bribe De Nardi are available, both standard and special.

INFORMATION

PRODUCTION

Made in Italy

PRODUCT TYPE

Garage Door

BRAND

De Nardi

FINISHES

ENERGY CERTIFICATION

Ministry of economic development, with decree of 26 January 2010 - art. 1, clause 1, letter c), it establish that the “extendable and assimilated closures, that delimit the building to outside or to unheated rooms”, can take advantage of the tax deduction, now stands at 65%, if they respect certain thermal transmittance values.

Overhead and sectional doors belong to the category “extendable and assimilated closures”, with the necessary condintion that they separate heated rooms (garage or other) from the outside or from other unheated local.

CE SAFETY

SAFETY ACCORDING TO CE MARKING

Pratic overhead doors are CE certified and they are equipped with the following safety systems:
- Anti-fall system with certified cable (12/16): in case of break of suspension cable the "parachute" immediately stops the overhead door in the position where the break occurs.
- Anti-fall system with double certified cable (16 optional/Special standard): anti-fall system designed by De Nardi, with the addition of an additional suspension cable, guarantees the unstoppable of the overhead door. Since 1998 it has never occured the break of both certified cables.

Limitation of forces: an electronic system adjusts the engine power, maintaining the impact forces within the parameters of safety.
Mechanical safety rib: provides continuos self-test excluding any possibility of uncontrolled failure.

Protection of lever arms: safety and beauty. The levers are designed and positioned as the law requires, are coated to balance into the overhead door.
Durability and manoeuvrability: tested with 20.000 cycles of opening and closing, they didn’t have to undergo interventions of extraordinary maintenance and/or replacement of components.
Wind resistance: certified class 2.
- Anti-fall system with double certified cable
- Limitation of the forces
- Mechanical safety edge
- Levers protection

ANTI-FALL SYSTEM WITH CERTIFIED CABLE

In case of breakage of the suspension cable, the “parachute” stops immediately the overhead door in the position in which the break occurs.

ANTI-FALL SYSTEM WITH DOUBLE CERTIFIED CABLE

breaks cable? The second intervenes. Breaks the second cable? The door is locked in the position in which it is, thanks to the parachute of the series. Since 1998 it has never occurred the break of the both certified cables. N.B. Not available on version PRATIC 12.

LIMITATION OF THE FORCES

An electronic system adjusts the engine power maintaining the impact forces within the security parameters.

MECHANICAL SAFETY RIB

Provides continuos self-test excluding any possibility of uncontrolled failure.

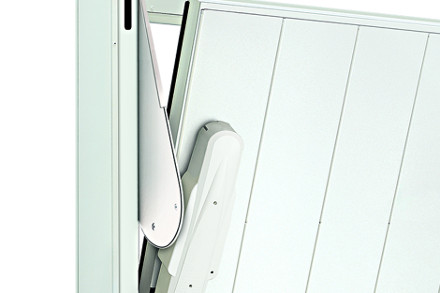

LEVERS PROTECTION

Safety and beauty. The levers are designed and positioned as the law requires, are coated to balance into the overhead door.

DETAIL

SIZE VERSION IN LIGHT & SIZE VERSION OVER LIGHT

- L=light horizontal hole -H=light vertical hole
- Hp=passage height -Ma=width of the upright
- Mb=depth of the upright -I=21 cm manual, 24 cm motorized
- Measures: Widht up to 550 cm - Height up to 280 cm.

DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSIONWITH OR WITHOUT ENGINES

Ma x Mb Up to L 340 x H 265 cm	Ma x Mb Up to L 500 x H 265 cm	Ma x Mb Up to L 550 x H 265 cm
12 x 29	14 x 29	16 x 29

NON PROJECTING VERSION

H	X	Y	Z
200	50	81	131
210	50	83	133
220	50	85	135
230	50	87	137
240	50	89	139
250	50	91	141
260	50	93	143
270	50	95	145

SECTION OF THE MANTLE

The model PANEL is composed of panels of 49,5 and 61,5 for 4,2 cm of thickness. Composed of two opposing sheets of sendzimir galvanized steel and stucco embossed, wood and smooth; male and female profiled with anti-pinch shape.Inner and outer side with ribs for reinforcement longitudinal channels. Coupling without thermal bridge between internal and external sheet with insulating in polyurethane foam free from cfc injected with the foaming process continuously. With or without internal steel reinforcement.

TECHNICAL PANEL FEATURES 49,5/4,2 &61,5/4,2

- Thickness : 4.2 cm
- Total K : 0.78 W/mK

WEIGHT OF THE PANEL 49,5/4,2 &61,5/4,2

- Kg/m : 5.56 ,6.55
- Kg/m2 : 11.12 , 1.74

TOLLERANCE

- Thickness : + / -2
- Pitch : + / -2
- Length : + / -5
- Off the square : + / -2
- Acoustic abatement : RW (C;Ctr) = 23 (-2; -3) dB

AESTHETICS

HORIZON - B

MULTI LINE - B

SINGLE LINE - B

PANEL 16 - 24

INNER SIDE

Embossed stucco finish. Colour standard simil Ral 9002. Painting combined outside, on request.

FINISHES

PANEL COLORS - WOOD TYPE FINISH

-Honey -Noce

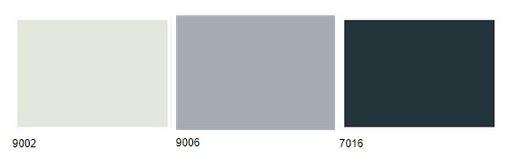

PANEL COLOR - SMOOTH FINISH

-9002 -9006 -7016

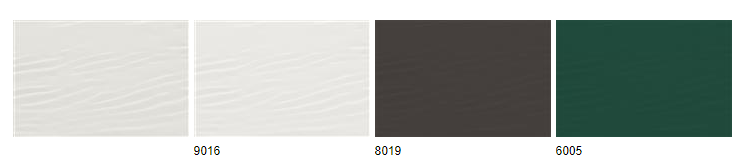

PANEL COLOR - EMBOSSED WOOD FINISH

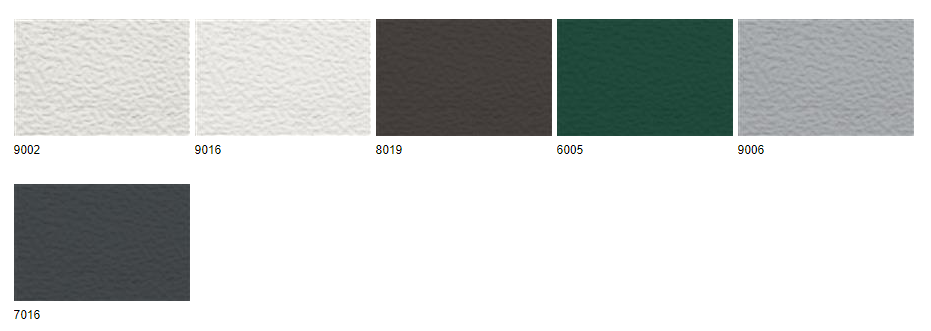

PANEL COLOR - EMBOSSED STUCCO FINISH

H	X	Y	Z
200	50	81	131
210	50	83	133
220	50	85	135
230	50	87	137
240	50	89	139
250	50	91	141
260	50	93	143
270	50	95	145

H	X	Y	Z
200	50	81	131
210	50	83	133
220	50	85	135
230	50	87	137
240	50	89	139
250	50	91	141
260	50	93	143
270	50	95	145

H	X	Y	Z
200	50	81	131
210	50	83	133
220	50	85	135
230	50	87	137
240	50	89	139
250	50	91	141
260	50	93	143
270	50	95	145
