Casalis Ondo Wall Panels
Ondo wall panels
ONDO WALL PANELS
Designed by Aleksandra Gaca
Ondo provides visual, tactile and even acoustic experiences as it muffles and absorbs sound.
With harmonious weaves, fresh colour combinations, its ability to soften sound, its reassuring warm touch and balanced aesthetics, Ondo creates a sophisticated, subtle atmosphere.
designer
ALEKSANDRA GACA
Aleksandra Gaca designs innovative woven textiles. She works with brands, architects, manufacturers and institutions to create textile solutions, products and installations that translate her clients’ identities, needs and interests into woven form.
Her work appears in interiors, architecture, fashion and art exhibitions. It unites strong aesthetic qualities with high functional performance in acoustics and insulation.
At the outset of her 20-year career, she pioneered 3D woven textiles, becoming an expert in their design, manufacture and use. Her fabrics combine experimental weaving techniques with her own sensuous approach to materials, colour and pattern.
To make them, she combines ancient craft and cutting-edge technology, sometimes creating a sample design on a handloom, before transferring the resulting concept to industrial machines. Her innovative textile designs have earned her a number of international awards. Born in Lodz, Poland, she lives and works in Delft, the Netherlands.
INFORMATION
PRODUCT TYPE
Wall panels
BRAND
Casalis
PRODUCTION
Made in Belgium
REACTION TO FIRE
-SBI Test Report – EN 13823
-Class of reaction to fire EN 13501-1 B-s2,d0 -ASTM-E84 to the US standard
COMPOSITION OF THE PANEL
-Aluminium frame with straight or round-angled corners
-Acoustic absorber -Cover in 3D fabric (with closing system at the back)
FABRIC
Composition: Woven in a mixture of 0.6% elasthane 99.4% Trevira CS polyester.
DESIGNE
Aleksandra Gaca
ACOUSTIC PERFORMANCE
Class A acoustic rating - αw 0.90
PANEL TECHNICAL DETAILS
-Simple system of covers easily removable for cleaning and replacement
-Thickness of the panel 60 mm – mounted 65 mm -Sizes and shapes customisable: Irregular, triangle, round sides, L-shape to cover corners
-Power sockets and screens integratable -All fixing systems available (wall, ceiling, suspended, standing)
MAINTENANCE INSTRUCTIONS
-General maintenance and preventive measures Mounting: Please use textile gloves to protect the fabric from stains. Vacuum regularly: We advise regular dusting and vacuum cleaning with a smooth mouthpiece and never with the vacuum bristles showing. -Total cleaning of the fabric For complete cleaning, specialized companies in upholstery cleaning are advisable. The fabric can be easily removed from the panel for this purpose.
ENVIRONMENT
-Oeko-Tex ® standard 100.
-All chemicals used are registered under the REACH legislation. -The acoustic panels can be easily disassembled and the parts are recyclable.
DESIGN & COLOURS
-The Ondo collection contains 1 design and 14 colours. -Colour differences: slight colour differences between yarn batches are characteristic of dying natural materials and consequently can not be valid grounds for complaints.
ACOUSTIC PERFORMANCE CLASS A ACOUSTIC RATING
Our acoustic panels offer outstanding performance, both in absorption and diffusion of the sound. Thanks to our 3D woven fabric, the surface of the acoustic element increases drastically: Casalis’ acoustic element is absorbing more than 90% of the sound, which comes in contact with it.

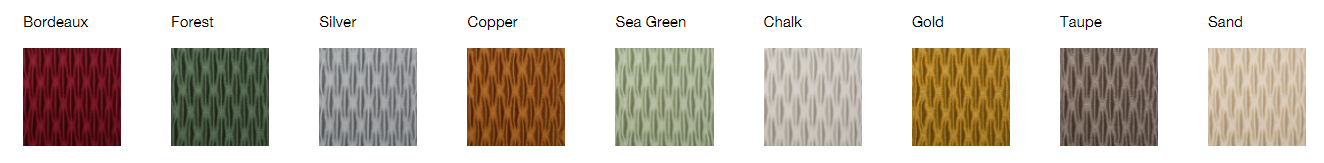

COLOURS
TECHNICAL DRAWING
TECHNICAL DRAWING
CRAFT & MATERIALS
WEAVING
It’s 12:28 PM in Flanders
Years of experience and know-how of woven textiles have allowed us to develop top quality 3D fabrics using state of the art warping and weaving machines.
TREVIRA CS POLYESTER
Comfort and safety, the two most important requirements in home textiles, were first successfully combined in 1980 with the creation of flame retardant Trevira fibers and yarns. Textiles made from these fibers and yarns carry the trademark Trevira CS and are permanently flame retardant. Unlike fabrics that receive a surface treatment at a later stage, Trevira CS textiles offer long-term safety and security.
