Effe Nuvola Smart Power Steam Generator
NUVOLA SMART POWER STEAM GENERATOR
NUVOLA SMART POWER STEAM GENERATOR
This high-power steam generator is fitted outside the Hammam: using the most sophisticated technology available and featuring clean, crisp lines, Nuvola Smart Power is a truly unbeatable product.
INFORMATION
BRAND
Effe
CONTROL PANEL
18 x h 6 cm
DOWNLOAD
ā Data Sheet
PRODUCT TYPE
Steam Generator
STEAM DI!USER FEATURES
- Essential oils container.
- Steam output Led light.
- Additional temperature probe inside the di"user.
- Adjustable #aps to control the outgoing steam
direction.
- Cubicle air-recirculation system built into the
water-resistant fan.
PANEL MOUNTING BOX
19 x 8 x h 4,3 cm
STEAM DI!USER
18.2 x 4,5 x h 12.3 cm
CONTROL
Automatic heating element control for even steam distribution over time.
STEAM DI!USER MOUNTING BOX
18 x 10 x h 15.2 cm
SMART POWER
Nuvola Smart Power has been designed for concealed installation and therefore blends in perfectly with any interior design.
POWER STEAM FUNCTION
PSF (Power Steam Function): an innovative ventilation system that minimises temperature layering.
LARGE SPACES
External professional-standard steam generator suitable for large spaces Long, maintenance-free operation.
ECC - E!E COMFORT CONTROL
System that remotely controls the steam bath from your device, using the E"e ECC app. Available on iOS and Android.
STEAM GENERATOR
- 52 x 26 x h 27 cm
- 52 x 26 x h 45 cm (Mod. 110-140-180)
- 52 x 26 x h 95 cm (Mod. 250-360)

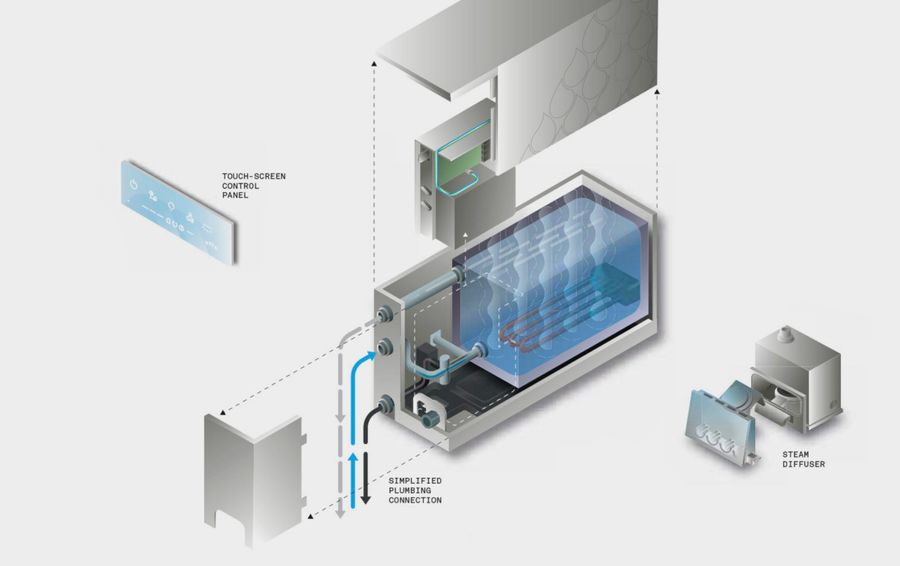

TECHNICAL DRAWING
STEAM GENERATOR FEATURES
- Rwf regulating water flow: can work on a wide range of water systems with different pressures.
- Swf smart water filling: optimised management of boiler filling.
- Sbc smart boiler cleaning : dilution and
intermediate rinsing processes not time controlled but based on real need.
- SEC Smart Energy Control: evenly spaced on/o"
periods for thec heating elements.
-ODS Open Door Sensor.
Touch-screen control panel with backlit icons and temperature gauge.
TECHNICAL DRAWING
| MODEL | POWER KW | VOLUME V |
|---|---|---|
| 25 | 2.5 | 0 - 2,5 |
| 30 | 3.0 | 2.5 - 3.5 |
| 45 | 4.5 | 3.5 - 4.5 |
| 55 | 5.5 | 4.5 - 5.5 |
| 70 | 7.0 | 5.5 - 7.2 |
| 90 | 9.0 | 7.2 - 9.2 |
| 110 | 11.0 | 9.2 - 12.0 |
| 140 | 14.0 | 12,0 - 15.0 |
| 180 | 18.0 | 15.0 - 25.0 |
| 250 | 25.0 | 25.0 - 35.0 |
| 360 | 36.0 | 35.0 - 50.0 |
