Living Concrete Fair-Faced Concrete Wall Panels
FAIR-FACED CONCRETE WALL PANELS
FAIR-FACED CONCRETE WALL PANELS

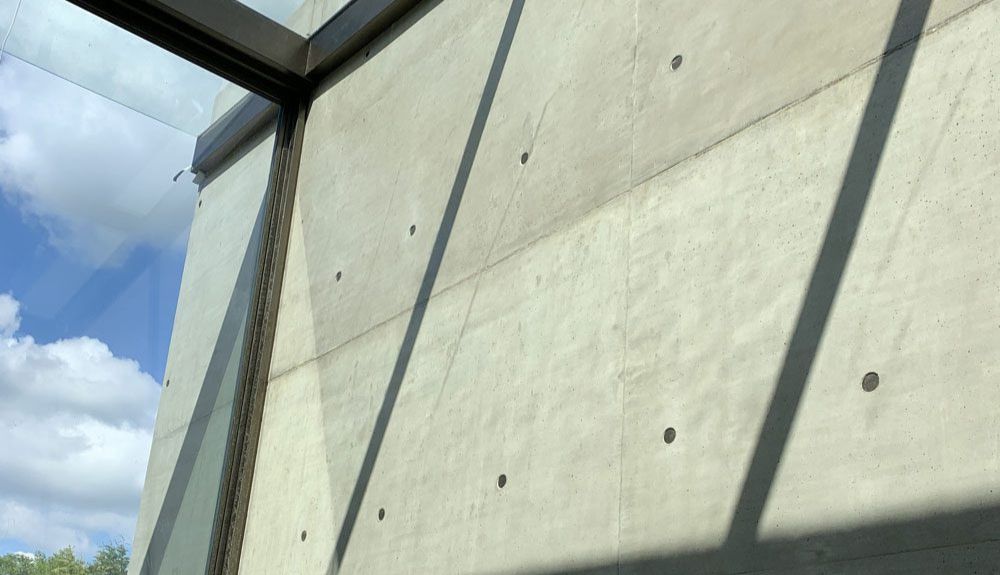

Living Concrete offers GRC Fair-faced wall panels which are built to look like cast-in-situ concrete walls.
You can easily put them into existing brick, stud and block walls to give a construction project a new lease of life or simply have them as a decorative feature for your wall panels, external cladding or a rain screen.
Our concrete is manufactured using our bespoke process which allows us to make exceptionally thin panels which have a lot of strength, fantastic UV stability and a superior mechanical resistance. These types of panels can therefore be made in different colours to get the results needed.
The Fair-faced panels we create will be suitable for any commercial or domestic project, making them a great choice for indoor and outdoor use. They’re also available in a range of different thicknesses and sizes. Furthermore, we offer a bespoke installation service, and all panels come pre-sealed for ease of use.
INFORMATION
BRAND
Living Concrete
CATEGORY
Concrete Panels
MAINTENANCE
- Clean with neutral detergent
- Use wax maintainers or self-polishing cleaners
DOWNLOAD
↓ Product Sheet
↓ Installation
PANEL'S LAYOUT
INSTALLATION
Adhesive or bracket system
USE
Internal and external
INSTALLATION GUIDE - WALLS
- Base : solid flat surface
- There can be no rising or negative humidity
- Verify that the base wall is leveled (+/-2 mm in 3 meters)
- Allow for the perimeter joints and joints against objects from the base
STANDARD SIZES
- 600 x 600 x 15 mm
- 600 x 900 x 15 mm
- 600 x 1200 x 15 mm
- 1000 x 1000 x 15 mm
- 1200 x 1200 x 15 mm
- 750 x 1500 x 20 mm
- 1000 x 2000 x 20 mm
COMPOSITION
-Cement -Selected sand -Specially designed additives and UV stable pigments
STORAGE
- Panels should be kept in a horizontal way
- Keep in a dry, clean space in the original packaging
MATERIAL
Concrete
WEIGHT
18kg/m2/10mm
PANELS
Grc fair faced wall panels are designed to resemble cast in situ concrete wall
PERFORMANCE
Grc ultra high performance concrete offer a stylish and contemporary alternative to ceramic, porcelain or stone tiles
CONSIDERATIONS BEFORE INSTALLING GRC PANELS
- Keep packaged until installation
- Do not force the panels over uneven surfaces
- Always store horizontally
- Do not place loads on the panels
- Leave at least 2-3mm for joints
- BTX panels are not rectified, they can have variations of 0.6%
- Level the sub-wall correctly before starting the installation (+/- 2mm in 3m)
APPLICATIONS & BENEFITS
-Internal & external use -Large format pre-cast panels -High mechanical resistance and UV stability -Easy maintenance -Made of natural materials -Fully recyclable -Great thermal conductivity -Available in many colours -Bespoke sizes and finishes -Great alternative to poured polished concrete -Fast installation
TEXTURES & FINISHES
SURFACE TEXTURES
- Silk (smooth)
– Rough (pitted)
– Sandblasted
COLOURS
This selection of colours is for reference use only and are as similar as possible to the real colours. Because we work with only natural materials such as cement, sand and water, these may undergo changes in colour and tone.
INSTALLATION
1. STEP BY STEP MANUAL INSTALLATION
-The wall should be leveled (+/-2 mm in 3 meters) -Sand the wall to remove any loose elements -Apply primer if needed -The base has to be firm. Verify with a sharp tool -Define the way of installation according to the aesthetic wanted -Begin the installation of the panels from the bottom up -Apply adhesive as per manufacturer's recommendations -Install panels applying pressure until initial grab
-If necessary use T screws on the panels joint to fix them. Once the adhesive is dry remove the screws -Panels joints can be butted, left with shadow gaps or filled with flexible tile grout -Seal the panels with Water Based Sealer, Polifan pu k14 or acrylic wax
2. STEP BY STEP MANUAL INSTALLATION
-The wall should be levelled (+/-2 mm in 2 meters) -Sand the wall to remove any loose elements -The base has to be firm. Verify with a sharp tool -Define the way of installation according to the aesthetic wanted
-Install bracket system -Begin the installation of the panels from the bottom up depending on design
3. STEP BY STEP MANUAL INSTALLATION
-The wall should be leveled (+/-2 mm in 2 meters) -Sand the wall to remove any loose elements -Apply primer -The base has to be firm. Verify with a sharp tool -Define the way of installation according to the aesthetic wanted -Begin the installation of the panels from the bottom up
-Apply adhesive as per manufacturer's recommendations -Install screws / bolts and metal or concrete caps in various colours -Seal the panels with water based sealer, polifan pu k14 or acrylic wax
