CONCRETE PLAIN CONCRETE WALL PANELS

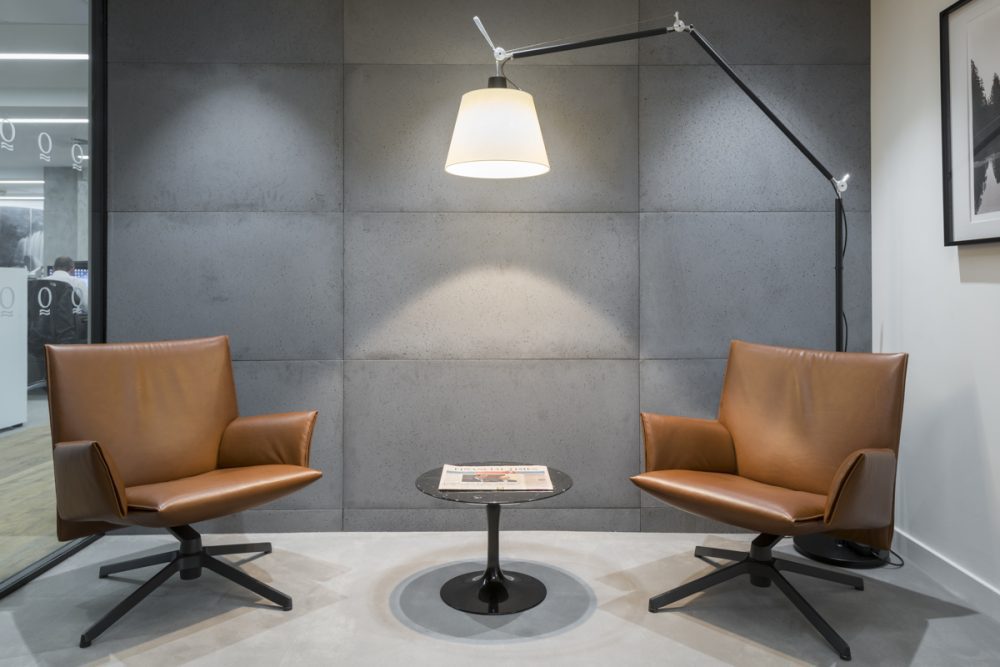

Living Concrete has created a wealth of GRC Plain Concrete wall panels that can be tailored to any project. Whether you choose to incorporate them into construction, as decorative panels or simply external facade cladding, they’ll look good.
Our concrete is manufactured using our bespoke process which allows us to make exceptionally thin panels which have a lot of strength, fantastic UV stability and a superior mechanical resistance. These types of panels can therefore be made in different colours to get the results needed.
We design concrete panels that are suitable for whatever environment you choose – both indoor and outdoor, and also corporate and domestic settings. They help to seamlessly transform a space and turn it into a contemporary area.
All of our panels come pre-sealed and we offer a full in-house installation service. They’re available in a range of sizes and thicknesses – from standard offerings to custom options upon request.
INFORMATION
FINISH
Finishes: Unsealed or a choice or Matt, Satin or Gloss (we recommend sealing to limit staining). Give our team a call to discuss your requirements.
BRAND
Living Concrete
SIDE STRAIGHTNESS
+/-0.5%
PLANIMETRY
+/-0.5%
ORTHOGONALITY
+/-0.6%
THICKNESS
+/-5%
USE
-Internal -External
WEIGHT
8kg/m2/10mm
INSTALLATION
-Adhesive -Bracket System
GRC CONCRETE FEATURES
- Suitable for wall installation both indoor and outdoor
- Large format panels with superior strength
- High mechanical resistance and UV stability
- Available in different textures and colours
DELIVERY AND PACKAGING
- Secure packaging for each tile
- Palletised delivery
- Installation data sheet
DOWNLOADS
↓ Product Pdf
↓ Installation Guide PDF
MECHANICAL PROPERTIES
- Yield strength (modulus of rupture): 5-8 mpa
- Tensile strength (modulus of rupture): 2-5 mpa
- Compressive strength: 20-30 mpa
- Impact strength: 5-10 KJ/m2
- Thermal expansion coefficient: 20 x 10-6/°C
- Absorption: Low water permeability
- Dorry wear: 2.5 mm
COMPOSITION
- Cement
- Selected sand
- Specially designed additives and UV stable pigments
- The GRC Ultra High Performance Concrete panels stand out because of their versatility
- Durability and high hardness
- Making them suitable for all types of applications.
COLOUR VARIATIONS
Because of its cementitious composition the colour of GRC panels may have different textures and tones within the same panel and / or in comparison to other panels in the same batch. Our colour selection chart is for reference use only and the colours are as close as possible to the original colours.
VERIFICATION OF THE AESTHETIC APPEARANCE
Please check and ensure that you are happy with the delivered product and there are no apparent visible defects. If any issues are detected do not start the installation and contact supplier immediately. No claims will be accepted after tiles have been installed.
CLEANING & MAINTENANCE
- Clean with fresh water and a neutral pH detergent
- Do not use any aggressive cleaning agents or any other chemicals that are reactive to concrete or sealant
- To clean specific stains do not use abrasive materials
- Do not leave standing water on the surface
- Do not leave stains to dry, as they may permanently stain the surface
- For outdoor apply sealant periodically depending on usage
- Sweep or vacuum the surface regularly to remove all dirt and dust
STANDARD SIZES
We offer a selection of standard panel sizes for you to choose from. These panels can also be cut to size to suit any space.
-600 x 600 x 15 mm -600 x 900 x 15 mm -600 x 1200 x 15 mm -1000 x 1000 x 15 mm -1200 x 1200 x 15 mm - 750 x 1500 x 20 mm-1000 x 2000 x 20 mm
INSTALLATION
WALLS
- Base: solid flat surface
- There can be no rising or negative humidity
- Verify that the base wall is levelled (+/-2 mm in 3 meters)
- Allow for the perimeter joints and joints against objects from the base
STORAGE
- Panels should be kept in a horizontal way
- Do not leave the panels in a vertical or inclined position or leaning against any surface
- Keep in a dry, clean space in the original packaging
DIRECT WALL INSTALLATION WITH ADHESIVE
-Bracket system -Spirit Level -Sealer -Screws and anchors -Tape measure -Cradle Caulking Ladder/Scaffold tower/ -Access platform -Angle grinder Sandpaper -Paint Tray Microfibre roller Safety equipment
DIRECT WALL INSTALLATION USING INVISIBLE FIXINGS
-Spirit Level -Drill /driver -Prime, sealer and Polyurethane / Epoxy adhesive -Screws, anchors and concrete or metal caps -Tape measure -Cradle Caulking Gun -Ladder /Scaffold tower/ Access platform -Tile Spacers -Angle grinder -Sandpaper -Paint Tray
STEP BY STEP MANUAL INSTALLATION
- The wall should be levelled (+/-2 mm
in 2 meters)
- Sand the wall to remove any loose elements
- The base has to be firm. Verify with a sharp tool
- Define the way of installation according to the aesthetic wanted
- Install bracket system
- Begin the installation of the panels from the bottom up depending on design
STEP BY STEP MANUAL INSTALLATION
- The wall should be levelled (+/-2 mm in 2 meters)
- Sand the wall to remove any loose elements
- Apply primer § The base has to be firm. Verify with a sharp tool
- Define the way of installation according to the aesthetic wanted
- Begin the installation of the panels from the bottom up
- Apply adhesive as per manufacturer’s recommendations
COLOR RANGE
SURFACE TEXTURES / FINISHES
-Silk (Smooth) –Polished (Pitted) –Timber Planked
COLORS
The colours in our colour selection chart are for reference use only and are as close as possible to the original colours. Give our team a call and we’ll work with you to create the perfect colour to suit your designs.
