Livingconcrete Gap Concrete Wall Panels
Gap Concrete Wall Panels
GAP CONCRETE WALL PANELS
Living Concrete has created an exciting series of GRC Gap concrete wall panels. These panels incorporate a unique corner-fixing system which lets them become easily installed to existing walls. A selection of specially designed concrete or steel caps are used to cover fixing holes.
Our concrete is manufactured using our bespoke process which allows us to make exceptionally thin panels which have a lot of strength, fantastic UV stability and a superior mechanical resistance.
Our panels are suitable for indoor and outdoor applications and come in a range of different sizes. They create an exciting contemporary feel whether used as decorative feature wall panels, external facade cladding or rain screen. They are also readily available in diverse colours to best suit your project.
INFORMATION
GRC CONCRETE FEATURES
- Suitable for floor and wall installation both indoor and outdoor
- Large format panels with superior strength
- High mechanical resistance and UV stability
- Available in different textures and colours
PRODUCTION
Made In London
CATEGORY
Concrete Panels
DESIGNED
Specially designed additives and uv stable pigments
COMPOSITION
- Cement
- Selected sand
- Specially designed additives and UV stable pigments
The GRC Ultra High Performance Concrete panels stand out because of their versatility, durability and high hardness, making them suitable for all types of applications.
APPLICATIONS
-Suitable for any place with high footfall -Suitable for mosaic, marble, ceramic and tile with no breaks -Looks similar to polished concrete without the thickness -Helps with on-site concrete renovation with minimal fuss
MECHANICAL PROPERTIES
- Yield strength (modulus of rupture): 5-8 mpa
- Tensile strength (modulus of rupture): 2-5 mpa
- Compressive strength: 20-30 mpa
- Impact strength: 5-10 KJ/m2
- Thermal expansion coefficient: 20 x 10-6/°C
- Absorption: Low water permeability
- Dorry wear: 2.5 mm
WEIGHT
18kg
USE
Internal or external
SIZE
Ø3,4 cm
DOWNLOAD
↓ Product Sheet
MATERIAL
Hand-cast concrete -Brushed steel
INSTALLATION
Adhesive or bracket system
FINISHES
Unsealed or a choice or Matt, Satin or Gloss (we recommend sealing to limit staining).
TOLERANCES
- Thickness +/-5%
- Side straightness: +/-0.5%
- Orthogonality: +/-0.6%
- Planimetry: +/-0.5%
- Length and width +/-0.6%
COLOUR VARIATIONS
Because of its cementitious composition the colour of GRC panels may have different textures and tones within the same panel and / or in comparison to other panels in the same batch. Our colour selection chart is for reference use only and the colours are as close as possible to the original colours.
CLEANING AND MAINTENANCE
- Clean with neutral Detergent
- Use wax maintainers or self-polishing cleaners
STORAGE
- Keep in a dry, clean space in the original packaging
- Panels should be kept in a horizontal way
CON^IDEZATION^ E&OZE IN^TALLIN' GRC PANELS
- Keep pacŬaged until installation-Do not force the panels over uneven surfaces -Always store horinjontally -Do not place loads on the panels -Level the sub-wall correctly before starting the installation (н/- 2mm in 3m) -Leave at least 2-3mm for ũoints -GRC panels are not rectified, they can have variations of 0.6й
VERIFICATION OF THE AESTHETIC APPEARANCE
Please check and ensure that you are happy with the delivered product and there are no apparent visible defects. If any issues are detected do not start the installation and contact supplier immediately. No claims will be accepted after tiles have been installed.
CLEANING & MAINTENANCE
-Clean with fresh water and a neutral pH detergent -Do not use any aggressive cleaning agents or any other chemicals that are reactive to concrete or sealant -To clean specific stains do not use abrasive materials -Do not leave standing water on the surface -Do not leave stains to dry, as they may permanently stain the surface -For outdoor apply sealant periodically depending on usage -Sweep or vacuum the surface regularly to remove all dirt and dust

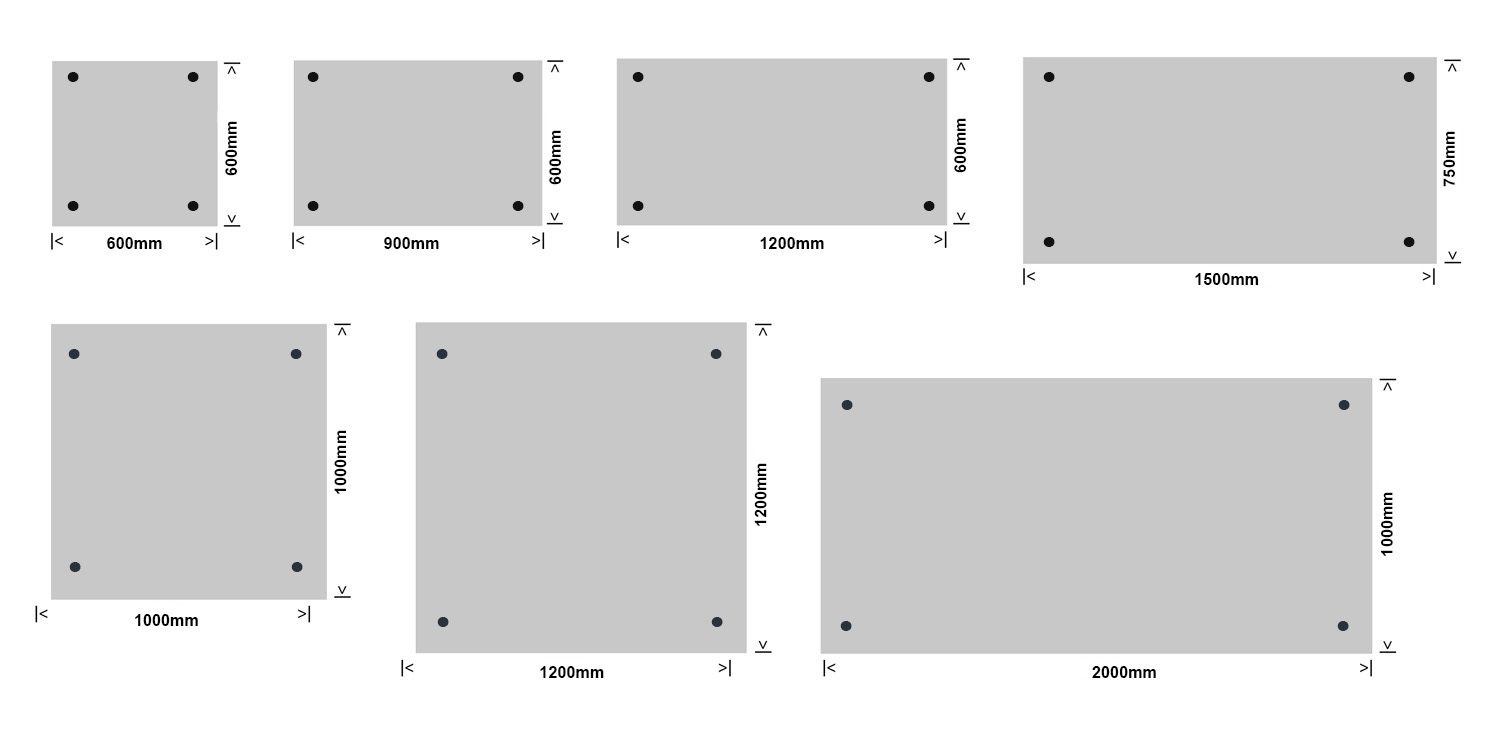

STANDARD SIZES
We offer a selection of standard panel sizes for you to choose from. These panels can also be cut to size to suit any space. Minimum order 10m2.
- 600 x 600 x 20 mm - 600 x 900 x 20 mm
- 600 x 1200 x 20 mm - 1000 x 1000 x 20 mm
- 1200 x 1200 x 20 mm - 750 x 1500 x 20 mm
- 1000 x 2000 x 20 mm
TEXTURES & colours
SURFACE TEXTURES
Silk (Smooth) – Rough (Pitted) – Sandblast (Rustic)

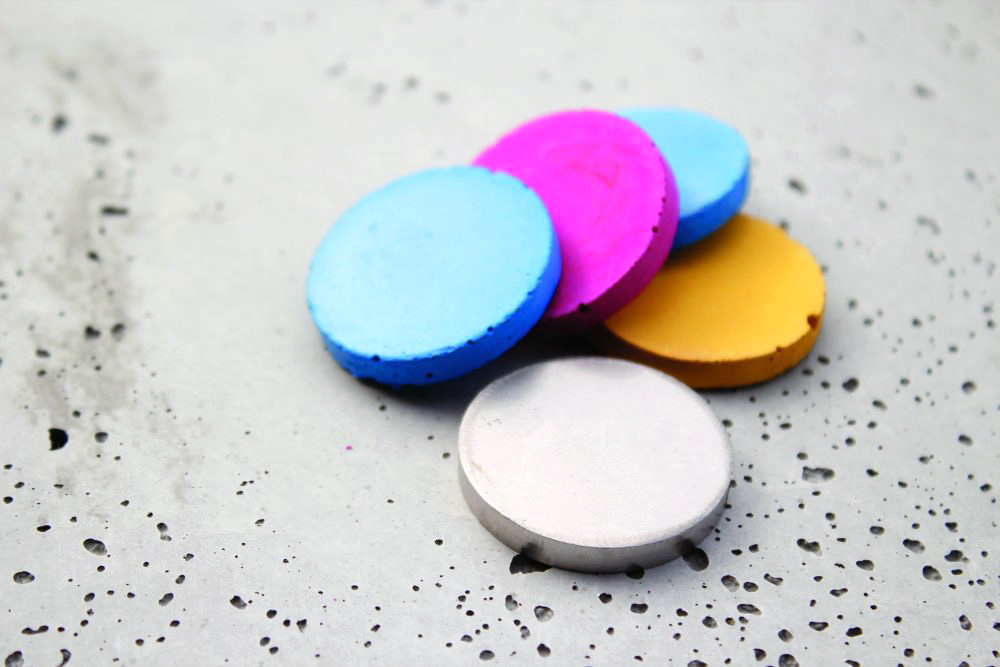

CONCRETE & METAL PLUGS
The C-PLUG is made from hand-cast GRC concrete. It can be used with concrete panels and frame modules for covering fixing holes. The brushed steel M-PLUG has a polished metal finish which looks fantastic paired with concrete panels both indoors and outdoors. They are designed to last many years and can be combined with concrete panels or frame modules to create individual finishes.
COLOURS
Because of its cementitious composition the colour of GRC panels may have
different textures and tones within the same tile and / or in comparison to other tiles in the same batch. The colours in our colour selection chart are for reference use only and are as close as possible to the original colours.
