Kratki Boiler fireplace LUCY 16 kW Ø 200
BOILER FIREPLACE LUCY 16 KW Ø 200
BOILER FIREPLACE LUCY 16 KW Ø 200
Proposal for those who cares about the maximum use of the heat from the insert.
Advanced solutions ensure energy savings and make operation and cleaning of the device very easy.
INFORMATION
WATER CAPACITY
39 l
MAX WORKING PRESSURE
2 bar
CERTIFICATES / COMPLIANCE
- Ecodesign Compliance
- Suitable for recuperation
- BImSchV 2 compliance
WEIGHT
257 kg
HEATING EFFICIENCY (%)
84
MATERIAL
Steel
HEATING POWER RANGE
7.0 - 19.0 kw
SAFETY AT THE HIGHEST LEVEL
-Perfect tightness thanks to the solid welds made in a noble gas shielding. -All steel elements are laser cut and bent on CNC bending machines. -Insert`s front equipped with a heat resistant ceramics that withstands temperatures up to 660°C.
DIMENSIONS
- Width : 85.6 cm
- Height : 138.4 cm
- Depth : 40.7 cm
- Diameter : 200mm

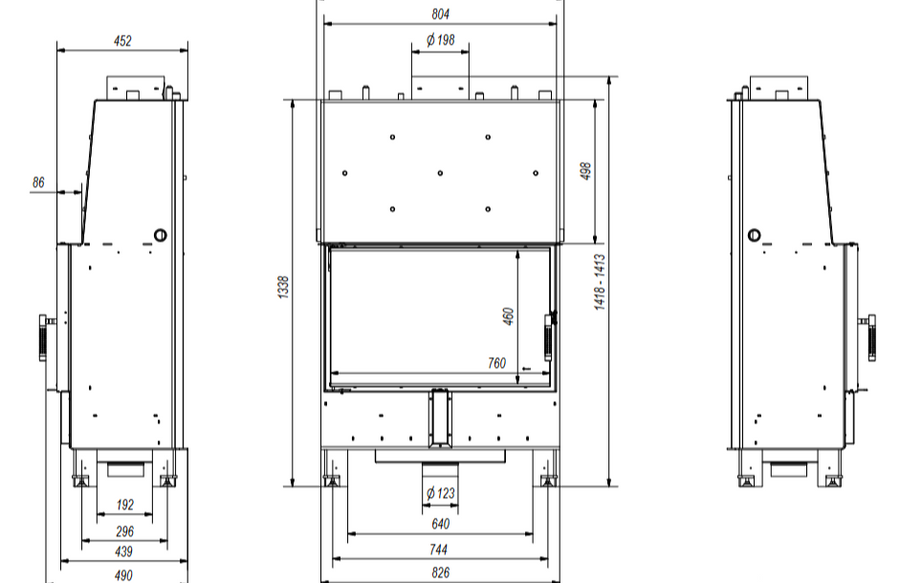

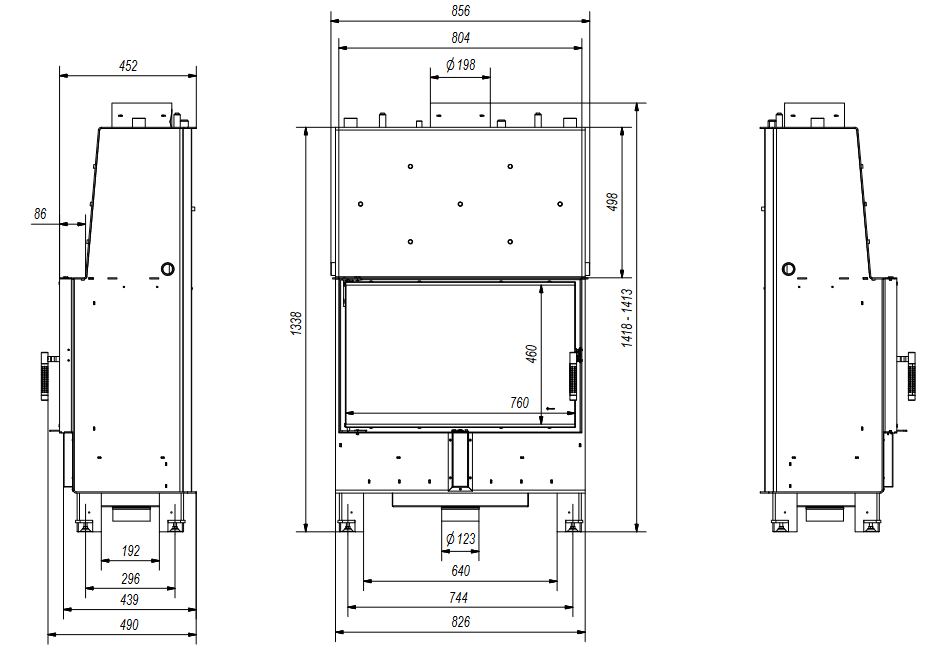

TECHNICAL DRAWING
FUEL TYPE
Seasoned hardwood (moisture ≤20%)
MODERN DESIGN
-An elegant and comfortable handle. -Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
GLAZING TYPE
Flat
DOOR OPENING SYSTEM
Left-hand
ENERGY CLASS
A+
ENERGY EFFICIENCY INDEX
110.62 EEl
DUST EMISSION
25 (mg/Nm3)
EXHAUST GAS TEMPERATURE
200 (℃)
CONVENIENT TO USE

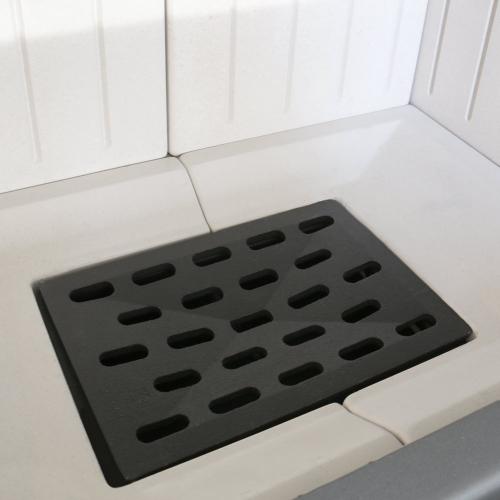

-Movable grate and ashpan enables to clean the insert. -Reduced soot deposition through a system of pure glass (air curtain). -It can be used in a various mounting conditions thanks to adjustable legs and movable fumes outlet with 360 regulation. -The special perforated design of the handle protects against excessive heating, which has the influence on the high comfort of using the fireplace.
AVERAGE POWER FROM WATER
10 kw
RATED OUTPUT (KW)
16
MAX LENGTH OF LOGS
50 cm
MAXIMUM USE OF ENERGY
-The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production. -Special water system which allows that big amount of the heat from fumes is transferred into heating system, thanks to that high energy efficiency is obtained. -Protection against overheating by the built-in coil pipe - connector input / output 1/2”. -Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to lining of combustion chamber with TERMOTEC - heat accumulating material which raises the temperature in the combustion chamber. -More ecological combustion thanks to double deflector system which extends the exhaust gas path. -Air supplied from outside only thanks to biult-in an external air inlet fi 125mm. Air adjustment with just one regulator which prevents from improper usage. -Triple system of combustion chamber`s air venting: primary air - secondary air supplied under the grate through holes in a back wall. Additionally clean glass system designed (air curtain).
