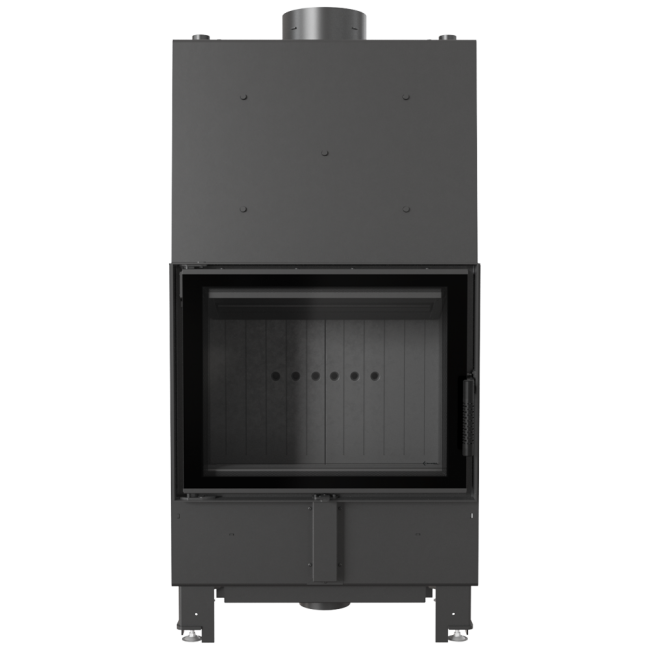

Kratki Boiler Fireplace LUCY 12 kW Ø 200 Black
Boiler fireplace LUCY 12 kW Ø 200 Black
BOILER FIREPLACE LUCY 12 KW Ø 200 BLACK
EAN : 5902539503258
Proposal for those who cares about the maximum use of the heat from the insert. Advanced solutions ensure energy savings and make operation and cleaning of the device very easy.
INFORMATION
COMBUSTION CHAMBER LINING
Yes
PRODUCT TYPE
Fireplace
WEIGHT (KG)
213.34215
RATED OUTPUT (KW)
12
MODERAN DESIGN
- The cartridge is equipped with two front and rear door (instead of the back wall), thanks to which the heat radiates in two directions.
- This type of fireplace is a frequently chosen solution for mounting between neighboring rooms, eg a living room and a dining room or bedroom.
- The cartridge is equipped with a single, decorative glass glass window, thanks to which it looks elegant and modern.
- The cartridge door has a comfortable handle.
MATERIAL
Steel
HEATING EFFICIENCY (%)
5.0 - 15.082
HEATING POWER RANGE (KW)
5.0 - 15.0
AVERAGE POWER FROM WATER (KW)
7
CO EMISSIONS (AT 13% O2 )
0.090000 Seasoned Hardwood (moisture ≤20%)
WATER CAPACITY (L)
35
ENERGY CLASS
A+
ECOLOGICAL COMBUSTION
The device meets the requirements and bimschv 2 standard, determining the maximum CO emission.
EXHAUST GAS TEMPERATURE (℃)
210
MAX LENGTH OF LOGS (CM)
50
GLAZING TYPE
Flat
DOOR OPENING SYSTEM
Left-hand
DOOR OPENING SYSTEM
Left-handDUST EMISSION (MG/NM3)
DIMENSIONS
- Width : 99.9 cm
- Height : 120.3cm
- Depth : 42cm
- Diameter : 200mm
SECURITY AT THE HIGHEST LEVEL
- Front of the cartridge equipped with a heat-resistant ceramics that can withstand the temperature up to 660 ° C. The glass offered by us has a quality and safety certificate.
- Special perforated handle design protects against excessive heating, which affects the high comfort of the fireplace.
- Body and front cartridge resistant to high temperatures thanks to high-quality steel.
- Excellent tightness, thanks to solid welds made in a noble gas shield. Laser cut steel elements with modern devices, and then bent on CNC bending machines.
TECHNICAL DRAWING
CO EMISSIONS (AT 13% O 2 ) ≤ GIVEN IN %
0.1
MAX WORKING PRESSURE (BAR)
2
ENERGY EFFICIENCY INDEX (EEI)
108
MAXIMUM POWER USE
Efficient combustion and longer maintenance of temperature thanks to the burning chamber of the thermotec, the heat accumulating material, which increases the temperature in the furnace. Pouring fuel particles thanks to two deflectors that extend the exhaust gas. This process also increases the efficiency of combustion and ensures better use of energy, and thus minimizes the emission of harmful substances into the atmosphere.
Delivery of air to the cartridge takes exclusively from the outside, thanks to the built-in air intake pipe FI 125 mm. Its adjustment takes place by means of a throttle set with one controller below the door, which excludes errors in improper use. The entire mechanism works very quiet and trouble.
In the cartridge, a double combustion chamber containing system is used. The primary air, facilitating wood firing, is delivered under the grate. In addition, the cleaning glass system (air curtain) is used in the cartridge, i.e. the air is delivered directly to the window through the channel system placed on the sides of the fireplace. In this way, oxygen is supplied to the upper part of the combustion chamber, in which the gas burning gases occurs in the wood combustion process, which additionally limits the emission of harmful to the atmosphere. The use of such a package system allows very precise combustion process control.
