Kratki Air Heating Fireplace
Air Heating Fireplace
AIR HEATING FIREPLACE
Steel Lucy 16 Kw Ø 200 With Msk Control

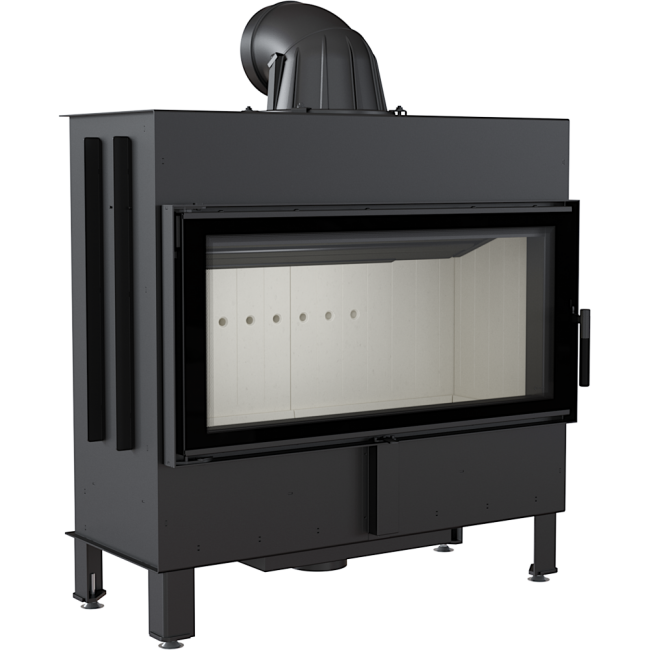

Fireplace insert LUCY equipped with MSK controller and automatic throttle.
A product for all those who care about the highest economy and ecology of burning. Electronic control of the fireplace ensures optimum burning conditions and savings of up to 30% of fuel.
INFORMATION
SUITABLE FOR RECUPERATION
Yes
DOOR OPENING SYSTEM
Left-hand
MATERIAL
Steel
HEATING EFFICIENCY (%)
81
GAS TEMPERATURE
260
MAX LENGTH
50
MIN OUTLET GRIDS ACTIVE FIELD (CM2)
≥1000
CO EMISSIONS (AT 13% O 2 ) ≤ GIVEN IN %
0
MIN INLET GRIDS ACTIVE FIELD (CM2)
≥800
DUST EMISSION (MG/NM3)
20
I CONTROLLER FUNCTION
- Precise dosage of air for combustion.
- Room temperature control - when the temperature set on the controller is reached, the damper automatically closes the supply of oxygen to the furnace, making the combustion process slower
- Protection against overheating.
CO EMISSIONS (AT 13% O2 ) ≤ GIVEN IN %
0.090000
DUST EMISSION (MG/NM3)
20.000000
DIMENSIONS
- Width : 99.9 cm
- Height : 120.3cm
- Depth : 42cm
- Diameter : 200mm
ENERGY CLASS
A
WEIGHT (KG)
213.34
ENERGY EFFICIENCY
106.71
RATED OUTPUT (KW)
16
I INTELLIGENT FIREPLACE WITH MSK CONTROL
-Save money and the environment with the electronically controlled fireplace insert Lucy.-The MSK controlled fireplace insert is the latest development in the field of intelligent fireplaces. -Thanks to the automatic control of the combustion process we can save up to 30% of wood - you save money and the environment. -The device meets the requirements of Ecodesign and the BImSchV 2 standard for maximum CO emissions. -It is equipped with a single, decorative glass pane which makes it look elegant and modern. The application of this solution optically enlarges the front of the insert and emphasizes the vision of fire.

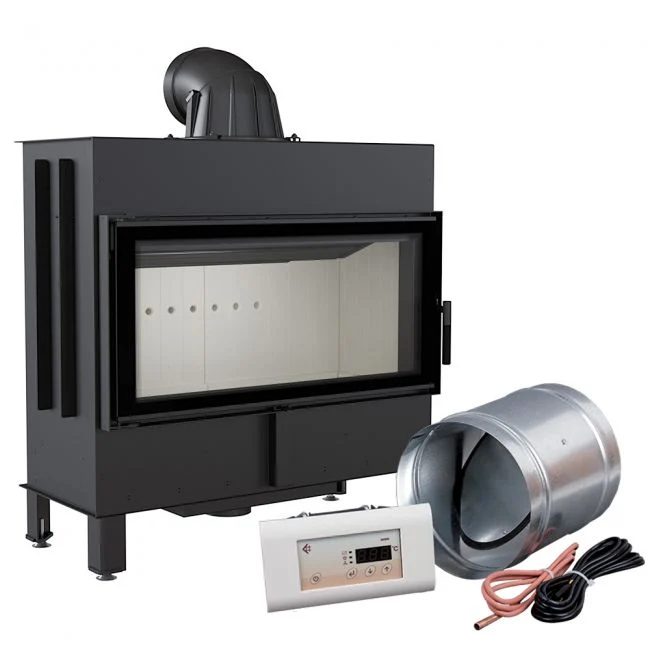

THE INCLUDES

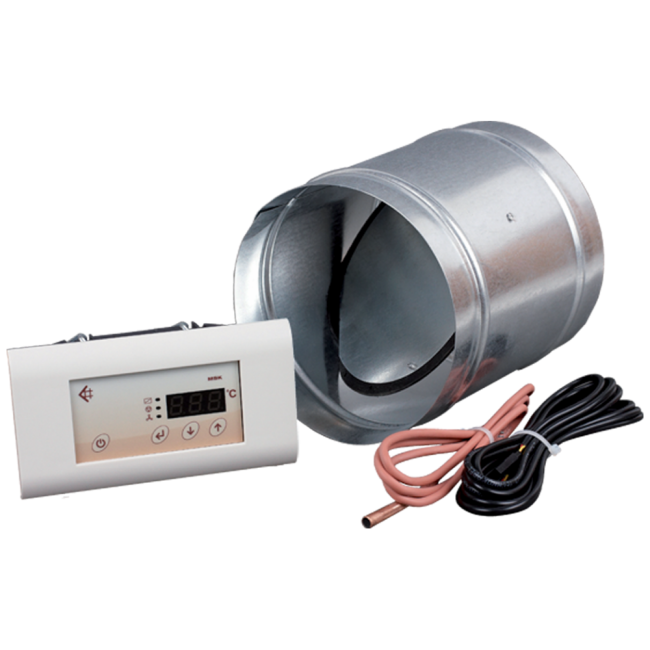

- MSK microprocessor controller.
- Temperature sensor with 2.5 m silicone cable.
- Electronic damper.
- Flush box.
PRODUCT TYPE
Fireplace
BRAND
Kratki
EQUIPMENT
- External Air Inlet
- Combustion Chamber Lining
- Ash Pan
- Screen Printed Glass
TECHNICAL DRAWING
