Leeboy Tack Distributors L150
Tack Distributors L150
L150 TACK DISTRIBUTORS
The L150 Tack Distributor ideally serves the paving contractor dedicated to smaller projects. With a conservative 150-gallon capacity tank, this solution still contains many of the features and functionality of the larger units.
Inclusive of a powerful gas engine, the user-friendly design can either be trailer or skid mounted. Multiple additional options including remote in-cab controls or overnight heating can further enhance the end user’s experience.
INFORMATION
BRAND
Leeboy
PRODUCT TYPE
Tack
TANK SIZE
150 gallons (567.8 l)
ENGINE
Honda – 4.8 hp (3.6 kw)
CAPACITIES
Fuel: 1 gallon (3.79 l)
CLEAN OUT
4” (102 mm)
ASPHALT PUMP
26.5 lmp
SAMPLING VALVE
1” (25 mm)
DIMENSIONS (TRAILER CONFIGURATION)
- Length : 10’ 6” (3.22 m)
- Width : 6’ 6” (1.98 m)
- Height : 5’ 9” (1.76 m)
- Shipping Weight : 1,519 lbs (689 kg)

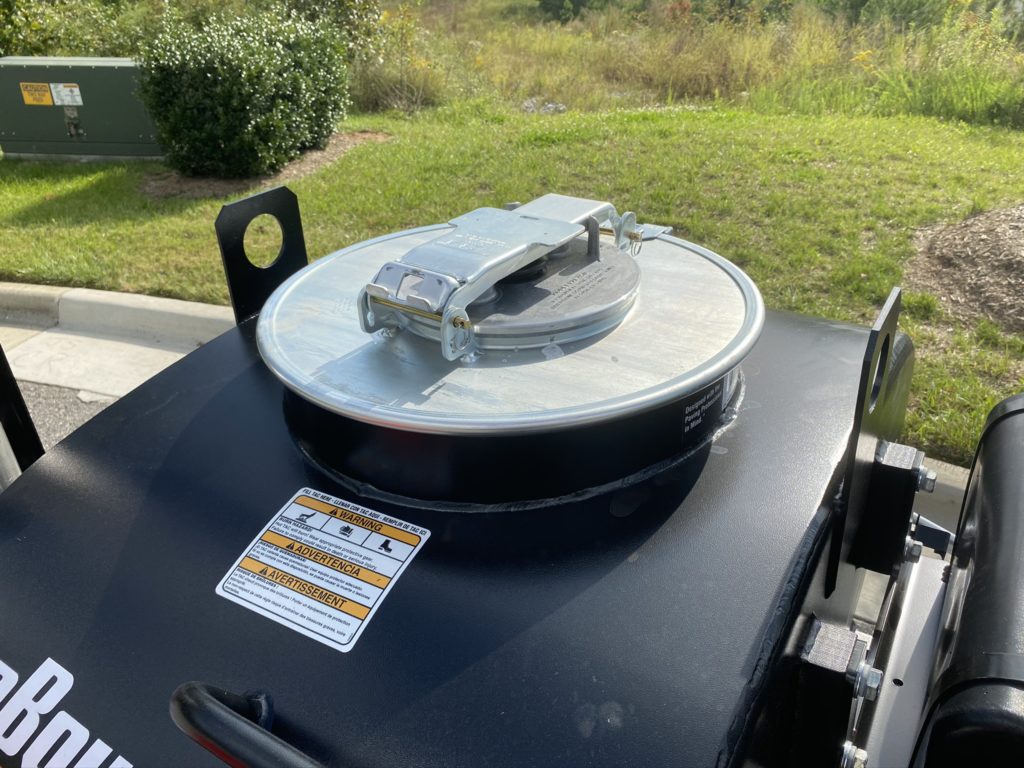

MANHOLE
- 20” (508 mm) diameter
- 10” (254 cm) diameter fill hole
- 3 psi (2.1 bar) pressure relief
HEAT SYSTEM
-One 300,000 BTU propane burner -One start burner
-40 lbs (18.1 kg) propane fuel tank
HOSE AND REEL
5” x 40’ (13 mm x 12.19 m) heavy-duty recoil hose reel
TEMPERATURE GAUGE
-50 - 3000 F (10 - 1490 C) -Adjustable angle faceplate
WAND
- 6’ (1.829 m) : wand with cold handles
- On/off valve
- Removable spray tip
ADDITONAL STANDARD EQUIPMENT
-Waste bucket mount (trailer only) -1” rear tank return -2” in-tank overflow
SPRAY BAR
-Spray width : 12’ (3.65 m)
-Spray Bar Controls : In-truck wireless remote controls (requires spray bar option)
- =Spray bar : lift with wireless remote control
DIESEL BURNER
-One 300,000 BTU diesel burner (only available with electric start engines) -7 gallon (26.5 l) fuel tank Auto ignition diesel burner with outfire
ENGINES OPTIONAL EQUIPMENT
-Honda gas - 4.8 hp (3.6 kW) electric start -Hatz diesel - 7.2 hp (5.4 kW) pull start or electric start Fuel: 1.32 gallons (5.0 l)
