Nola Tree Grille Tree Grate
TREE GRILLE TREE GRATE
TREE GRILLE TREE GRATE
Design By Anders Nyquist

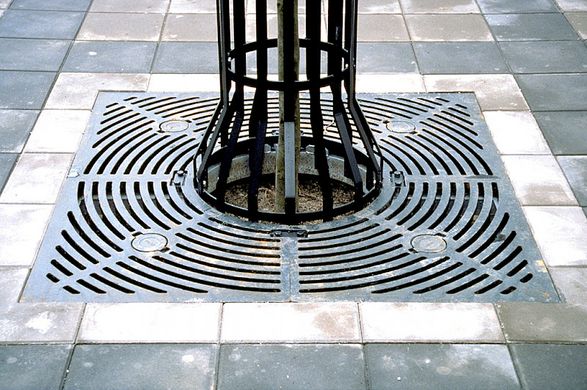

This iron tree grate is installed at the same level as the pavement surrounding the tree.
The tree grate allows the soil underneath it to remain uncompacted, encouraging healthy roots. The grate allows the tree roots to absorb water, air and sunlight while protecting them from pedestrians and traffic. Able to withstand weights up to 12 tonnes, the tree grate is strong enough to resist the pressure created by growing tree roots that can break many similar products.
INFORMATION
PRODUCT NUMBERS AND COMBINATIONS
- Ö30-71 Ground grid.
- Ö30-71BT80 Irrigation tank, 80lit.
- Ö30-72 Fitting set for ground grid, set of 4 pcs.
- Ö30-73 Under construction.
- Ö30-75 Trio lift.
- Ö30-76 Concrete box for ground grid.
DESIGNER
Anders Nyquist
PRODUCT TYPE
Tree Grille & Grate
CHARACTER
Tree grilles are extensions of the pavement that protect the roots while allowing rain to funnel through to water the tree.
MAINTENANCE
Over time, cast iron may develop rust on the surface but it will not affect the structural integrity. Anti-rust treatments may be applied from time to time.
NUMBER OF COMPONENTS
- Tree grille : 4
- Sub Frame : 2
- Root Barrier : 5
DIMENSIONS (TREE GRILLE)
- Length : 140 cm
- Width : 140 cm
- Depth : 5 cm
DIMENSIONS (SUB-FRAME)
- Depth : 8 cm
- Length of sub-frame : 140 cm
- Width of sub-frame : 140 cm
PRODUCTION
Made In Swedan
USE
Outdoor
VARIANTS
One version is available in steel to withstand heavy loads. Another version has a concrete sub-frame to control root growth and an optional irrigation tank.
WEIGHT
- Tree Grille : 76 kg
- Sub Frame : 37 kg
- Root Barrier : 145 kg
ASSEMBLY AND PLACEMENT
The surface grille’s own weight is substantial enough to secure it to the sub-frame without fittings. If it is installed without the sub-frame we recommend securing it with metal fittings Ö30-72, which you will need to include in your order.
DIMENSIONS (ROOT BARRIER)
- Length : 140 cm
- Width : 140 cm
- Depth : 60 cm
MATERIALS AND SURFACE TREATMENTS
Cast iron. The tree grille is made from cast iron with a thickness of 50/44 cm. The sub-frame is made from zinc electro-plated steel with U-beam USP80. The root control barrier is made from reinforced concrete with a thickness of 10 cm (there are openings in the bottom to enable roots to grow deeper).
