Nola Ulricehamn Tree Guard
ULRICEHAMN TREE GUARD
ULRICEHAMN TREE GUARD
Design By Camilla Wessman

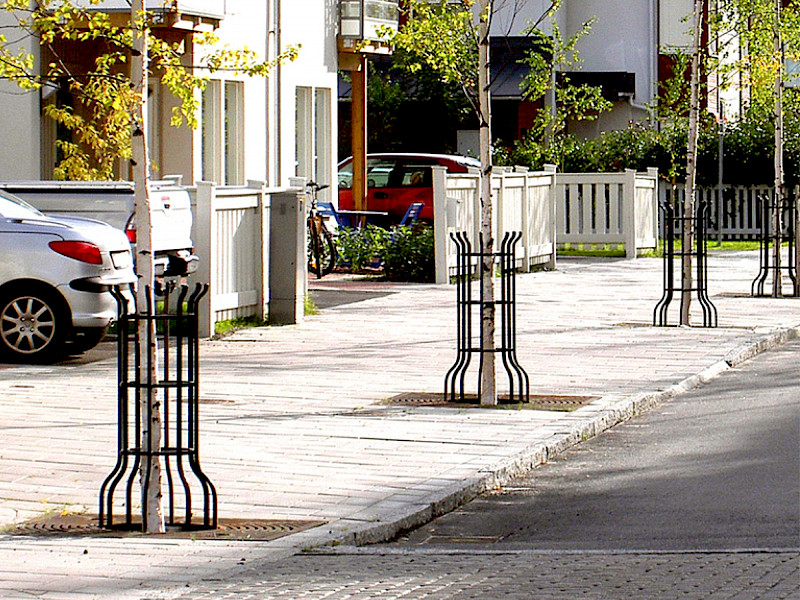

Ulricehamn encases trees in an attractive steel structure that guards the trunk against damages caused by vehicles and cycles.
The steel bars at the bottom of the frame widen to provide extra room for the trunk’s growth and fan outwards at the top to discourage climbing.
Ulricehamn is lightweight and easy to position. For best results, it should be paired with a tree grate to protect the roots.
INFORMATION
BRAND
Nola
AREA OF CONSTRUCTION
Street Tree Guards
VARIANTS
Available with a choice of two attachment specifications and a choice of three surface coatings.
MATERIALS AND SURFACE TREATMENTS
Made in solid steel bars measuring 20 mm × 20 mm. The steel is zinc electro-plated and powder-coated or hot dip galvanised and powder-coated, black RAL9005.
DIMENSIONS
-Height: 120 cm -Height with security fixtures: 155 cm -Distance tree guard mounts below ground: 35 cm -Diameter of top: 50 cm -Diameter of base: 60 cm -Diameter of base with security fixtures: 130 cm -Smallest inner diameter: 32 cm -Weight: 40 kg -Weight with security fixtures: 50 kg
PRODUCT NUMBERS AND COMBINATIONS
Ö20-13 Ulricehamn Standard.
Ö20-13 Umeå - Rak variant av Ulricehamn.
Ö20-13 Luleå - En bredare variant av Ulricehamn.
DESIGNER
Camilla Wessman
PRODUCT TYPE
Tree Guard
ASSEMBLY AND PLACEMENT
Some assembly required. Should be attached to a tree grille at the base or ground-mounted using the attachment fittings (not included, please order separately).
CHARACTER
An attractive steel tree guard that protects the trunk from damage by vehicles and cycles and discourages climbing.
MAINTENANCE
The version made with the lacquered finish should be handled with care.
Scratches to the powdercoated steel finish can be treated with alkyd oil enamel as needed. Scratches to the hot-dip galvanised steel version can be treated with cold galvanise solution.
PRODUCTION
Made In Swedan
COLOR
RAL9005.
