OPEN FENCES

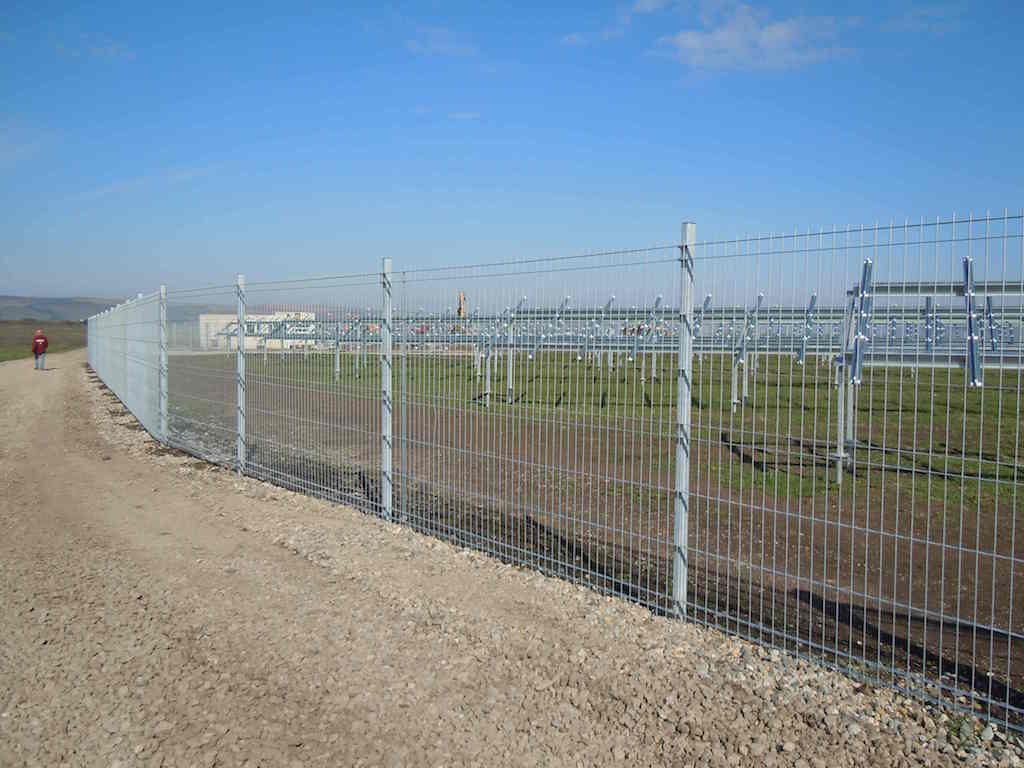

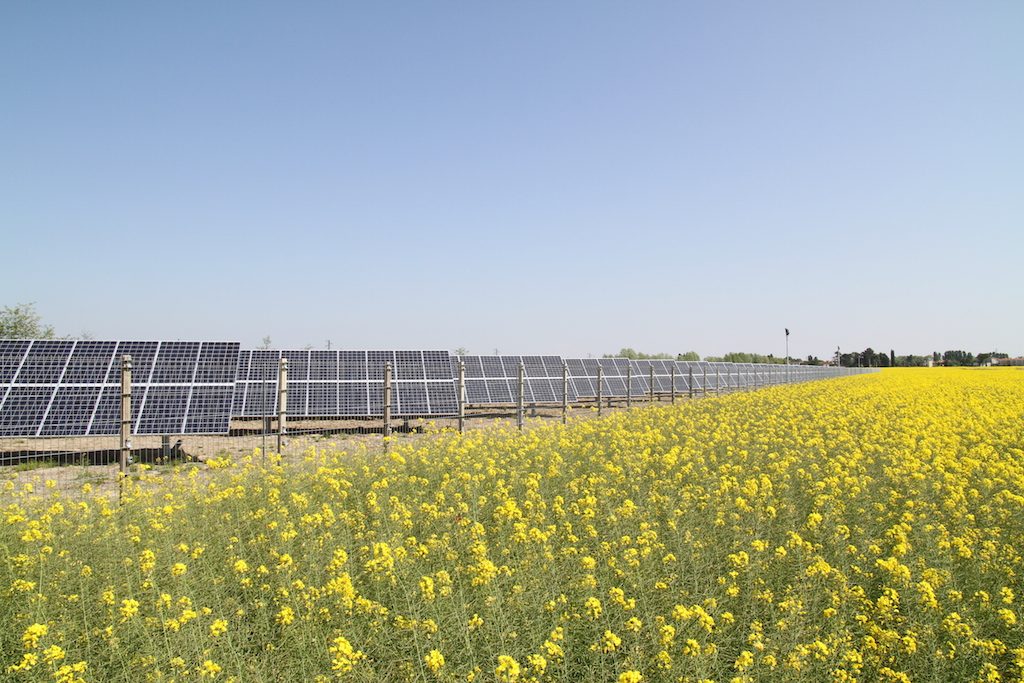

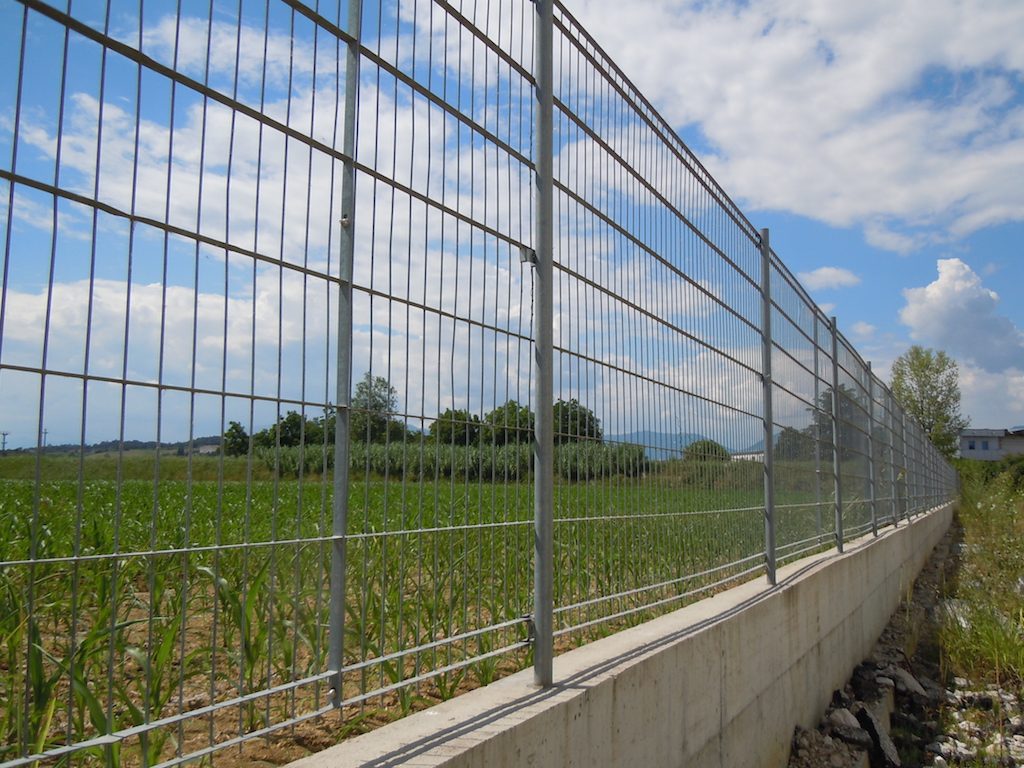

Open is the ideal solution for fencing off very large photovoltaic plants or agricultural areas.
Open is the ideal solution for fencing off very large photovoltaic plants or agricultural areas.
This electro-welded grating model consists of a 65/265 x 66 mm mesh and 25 x 2 mm bearing bar, comprising horizontal bearing bars with a rectangular cross-section and connecting round cross-beam bars. The side band – connected via wire welding – ensures a high resistance and long-lasting quality.
INFORMATION
STANDARD SURFACE TREATMENT
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
BRAND
Baldassar
PRODUCTION
Made In Italy
POSTS
The posts for the Open fence model are made from a square tube with a 50 x 50 mm cross-section. They are only available in the screw-in version.
COATING
A polyester resin powder coating – suitable for outdoor use – is applied on the post-processing hot dip-galvanised material.
MATERIAL
S 235 JR (UNI EN 10025:1995) steel
PRODUCT TYPE
Fences
DOWNLOADS
↓ Data Sheet
↓ Catalogue
ACCESSORIES AND OPTIONAL EXTRAS

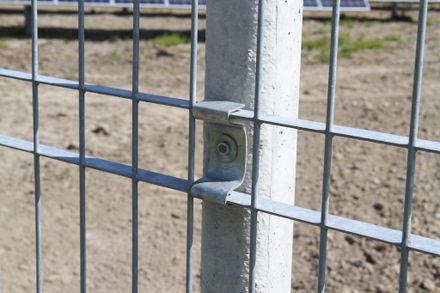

- Galvanised fixing element
- M8 x 14 stainless steel coupling bolt with hex nut
- M8 x 14 round head stainless steel bolt with lock nut
ITEM SPECIFICATIONS
The Baldassar Open fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 65/265 x 66 mm model, horizontal bearing bars with a 25 x 2 mm cross-section, vertical cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance. It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.

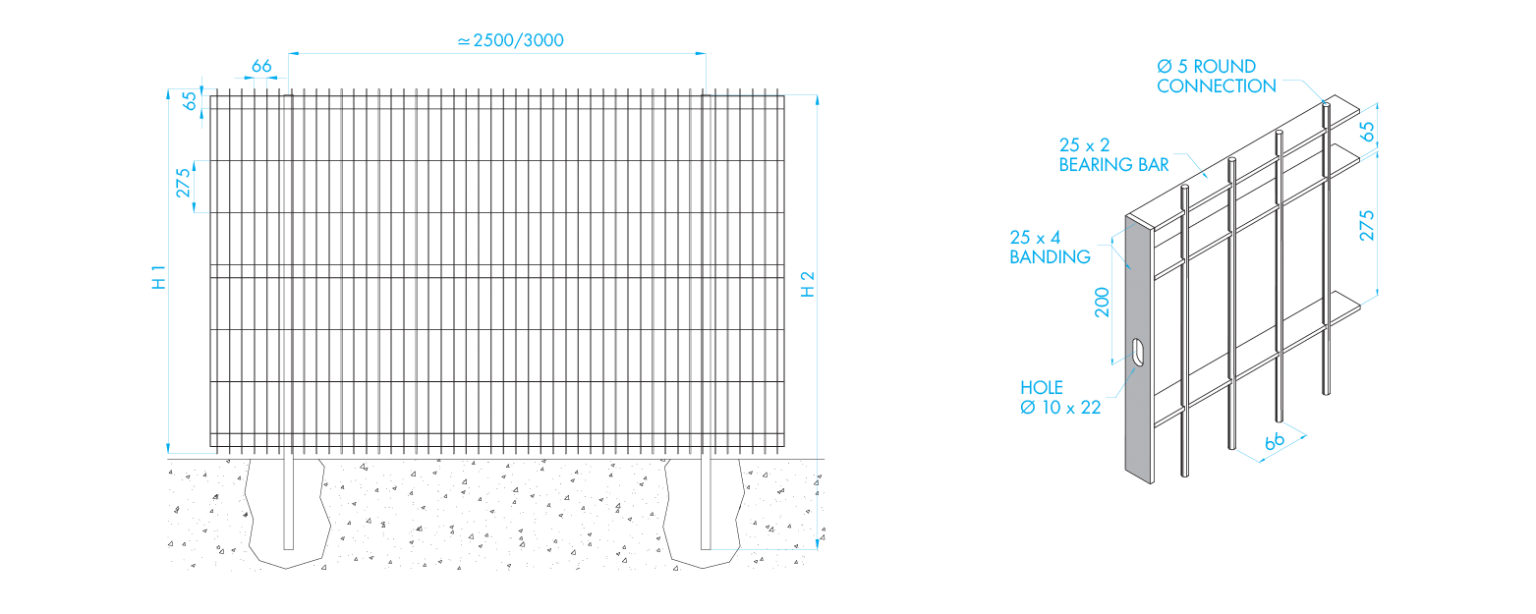

TECHNICAL DRAWING
TECHNICAL DATA
| PANEL - H2 HEIGHT (MM) | PANEL -WEIGHT (KG/EACH) | POST - SECTION (MM) | CONCRETE- H2 HEIGHT (MM) | CONCRETE- WEIGHT (KG/EACH) | CONCRETE-H2 HEIGHT (MM) | CONCRETE- WEIGHT (KG/EACH) | SCREW-ON POST HEIGHT (MM) | SCREW-ON POST WEIGHT (KG/EACH) |
|---|---|---|---|---|---|---|---|---|
| 1931 L=4033 | 38,50 | 50 x 50 | 3000 | 8,50 | 2250 | 6,40 | 2000 | 7,60 |
| 1231 L=4033 | 26,50 | 50 x 50 | 2000 | 5,70 | 1500 | 4,30 | 1300 | 5,50 |
AVAILABLE RAL COLORS
Upon Request : 6029, 9010, 9005, 5010, 1023, 3002, 7016 ,6005
