QUASAR 3 FENCES
QUASAR 3 FENCES

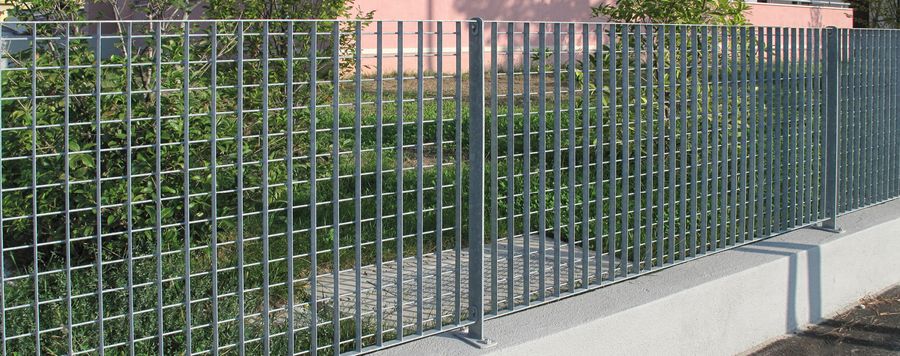

Quasar 3 is a variant of the Quasar 2 model with a 62 x 66 mm mesh and 25 x 3 mm bearing bar. The Quasar 3 electro-welded grating modular fence comprises vertical bearing bars with a rectangular cross-section and connecting round cross-beam bars.
The upper and lower band – connected via wire welding – ensure a high resistance and long-lasting quality. The Quasar 3 fence can be fitted with hinged or sliding single/double-leaf gates.
INFORMATION
DOWNLOADS
↓ Data Sheet
↓ Catalogue
PRODUCTION
Made in Italy
PRODUCT TYPE
Fences
USE
Outdoor
BRAND
Baldassar
MATERIAL
S 235 JR (UNI EN 10025:1995) steel
COLLECTION
Quasar
STANDARD SURFACE TREATMENT
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
COATING
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
ACCESSORIES AND OPTIONAL EXTRAS
-M8 x 30 stainless steel bolt with hex nut -Standard or 45° tube compensating clamps -A third clip to be welded or bolted
-M8 x 30 round head stainless steel bolt with lock nut
SPECIFICATIONS
The Baldassar Quasar 3 fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 62 x 66 mm mesh, vertical bearing bars with a 25 x 3 mm cross-section, horizontal cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance. It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
TECHNICAL DRAWING
TECHNICAL DATA
| PANEL DIMENSIONS (MM) | PANEL WEIGHT (KG/EACH) | POST SECTION (MM) | SCREW-ON POST HEIGHT (MM) | SCREW-ON POST WEIGHT (KG/EACH) | CONCRETE-IN POST HEIGHT (MM) | CONCRETE-IN POST WEIGHT (KG/EACH) |
|---|---|---|---|---|---|---|
| 1998 x 930 | 18.40 | 40 x 40 | 890 | 2.54 | 940 | 1.84 |
| 1998 x 1200 | 22.30 | 40 x 40 | 1150 | 2.80 | 1070 | 2.10 |
| 1998 x 1460 | 25.50 | 50 x 50 | 1400 | 3.32 | 1340 | 2.62 |
| 1998 x 1724 | 29.00 | 50 x 50 | 1660 | 3.82 | 1600 | 3.12 |
COLORS
-7016 -9010 -1023 -5010 -3002 -6005 -6029 -9005
